Lincoln Electric Lincore 50 ED011274 Flux-Core Wire 7/64" – 125 lb

SKU: ED011274
$1,491.26 $1,788.75

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $68/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 50 Flux-Cored Self-Shielded Wire is designed for crusher rolls, dredge cutter teeth, ore chute baffles, muller plows, tires and coal mining cutting teeth applications (Metal to Earth)
Overview

LINCORE 50 7/64 inch welding wire is a Flux-Cored ideal for low carbon, medium carbon, low alloy, manganese and stainless steels delivers an abrasion resistant, even under conditions of moderate impact deposit with a Rockwell Hardness range of 34-56 (HRC) limited to deposit of four layers.

Features
  • Delivers an abrasion resistant deposit, even under conditions of moderate impact
  • Larger wire diameter sizes may be used for the submerged arc process
  • Can be used on low carbon, medium carbon, low alloy, manganese and stainless steels
  • Limited to 4 layers
Specifications
FeatureValue
Classification Base MetalNumber of layerHardness Rockwell C
Typical Result Mild Steel1 Layer34-37
Typical Result Mild Steel2 Layers44-48
Typical Result Mild Steel3 Layers48-52
Typical Result 0.50% Carbon Steel1 Layer41-43
Typical Result 0.50% Carbon Steel2 Layers47-50
Typical Result 0.50% Carbon Steel3 Layers50-53
Typical Result Austenitic Mn Steel2 Layers43-45
Typical Result Austenitic Mn Steel3 Layers48-50
Classification Product Size%Al%C%Cr%Mn%Mo%Si
Typical Result .045" (1.1 mm)0.62.411.41.30.01.0
Typical Result 1/16" (1.6 mm)0.62.411.41.30.01.0
Typical Result 5/64" (2.0 mm)0.62.09.20.90.51.0
Typical Result 7/64" (2.8 mm)0.62.09.20.90.51.0
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
.045" (1.1 mm) DC+25 (1)5.1 (200)19-211201.9 (4.2)
.045" (1.1 mm) DC+25 (1)10.2 (400)23-251903.9 (8.5)
.045" (1.1 mm) DC+25 (1)15.2 (600)27-292505.8 (12.8)
1/16" (1.6 mm) DC+25 (1)3.8 (150)22-241752.7 (5.9)
1/16" (1.6 mm) DC+25 (1)8.9 (350)29-313256.2 (13.6)
1/16" (1.6 mm) DC+25 (1)11.4 (450)32-343657.9 (17.5)
5/64" (2.0 mm) DC+32 (1)3.2 (125)272103.4 (7.4)
5/64" (2.0 mm) DC+32 (1)5.1 (200)313255.4 (11.9)
5/64" (2.0 mm) DC+32 (1)6.4 (250)333806.8 (14.9)
7/64" (2.8 mm) DC+32 (1)2.0 (80)263153.9 (8.6)
7/64" (2.8 mm) DC+32 (1)2.5 (100)273754.9 (10.7)
7/64" (2.8 mm) DC+32 (1)3.3 (130)294506.4 (14.0)
7/64" (2.8 mm) DC+64 (2)2.5 (100)273154.9 (10.7)
7/64" (2.8 mm) DC+64 (2)3.3 (130)293706.4 (14.0)
7/64" (2.8 mm) DC+64 (2)4.4 (175)314508.6 (19.0)
LECO Diameter 7/64 in (2.8 mm)

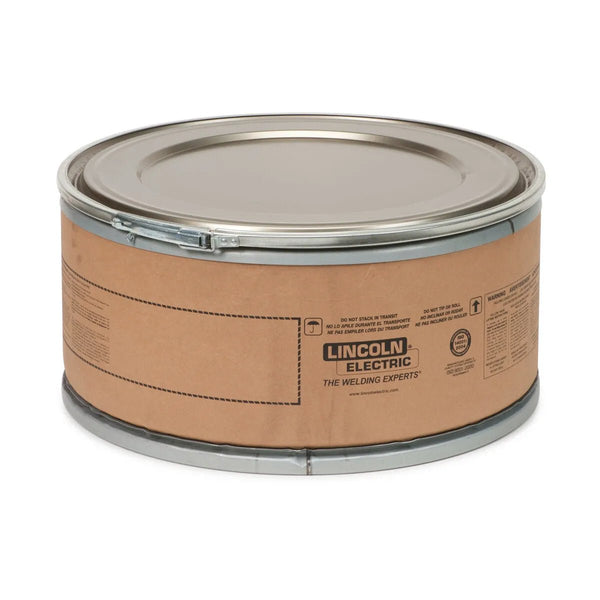

LECO Package 125 lb Speed Feed® Drum
Diameter (in) 7/64
Includes
  • (1) 125 lb Speed Feed® Drum
