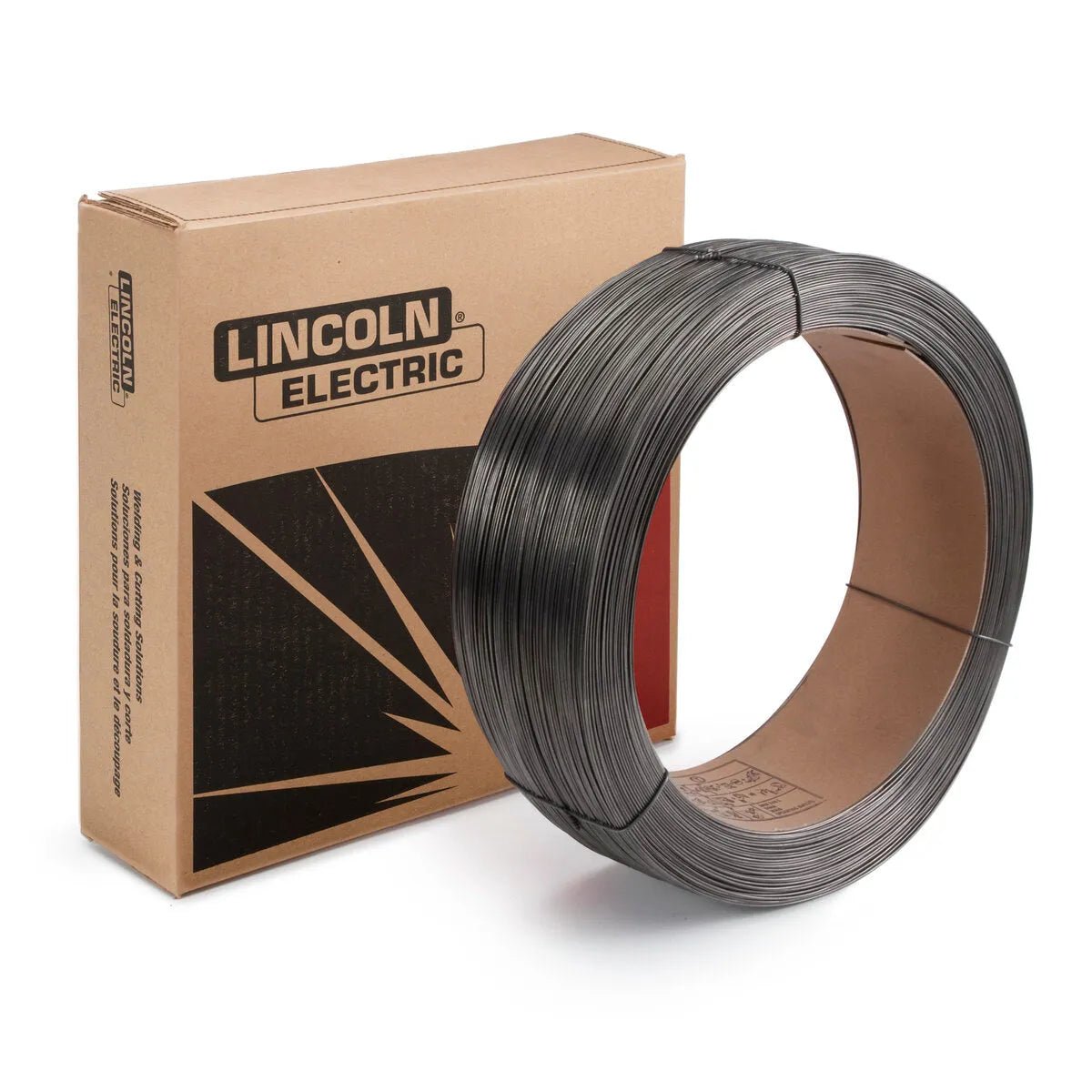

Lincoln ED011278 Lincore 55 Flux-Cored FCAW-S Welding Wire, 5/64 in, 50 lb Coil

SKU: ED011278
$472.34 $510.50
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 55 Flux-Cored Self-Shielded Wire is designed for crane wheels, blower blades, rail ends, skip guides, cams and transfer tables applications (Metal to Metal or Metal to Earth Abrasion)
AWS / Classification: EN/ISO: T Fe2
Overview
Lincoln Electric — Lincoln ED011278 Lincore 55 Flux-Cored FCAW-S Welding Wire, 5/64 in, 50 lb Coil

LINCORE® 55 Flux-Cored Self-Shielded Wire is designed for crane wheels, blower blades, rail ends, skip guides, cams and transfer tables applications (Metal to Metal or Metal to Earth Abrasion).

Specifications
  • Classification: Number of layer, Hardness Rockwell C
  • Typical Result: 1 Layer, 50-59
  • Typical Result: 2 Layers, 50-60
  • Typical Result, Work-hardened: 1 Layer, 53-62
  • Typical Result, Work-hardened: 2 Layers, 56-62
  • Typical Result, Flame-hardened: 2 Layers, 52-54
  • Typical Result, 180°C (350°F) Interpass Temp: 1 Layer, 50-55
  • Typical Result, 180°C (350°F) Interpass Temp: 2 Layers, 55-59
  • Classification: Product Size, %Al, %C, %Cr, %Mn, %Mo, %P, %S, %Si
  • Typical Result: .045" (1.1 mm), 1.4, 0.45, 5.3, 1.3, 0.8, 0.010, 0.004, 0.53
  • Typical Result: 1/16" (1.6 mm), 1.4, 0.45, 5.3, 1.3, 0.8, 0.010, 0.004, 0.53
  • Typical Result: 5/64" (2.0 mm), 1.4, 0.45, 5.3, 1.4, 0.8, 0.010, 0.004, 0.60
  • Typical Result: 7/64" (2.8 mm), 1.4, 0.45, 5.3, 1.4, 0.8, 0.010, 0.004, 0.60
  • Diameter: Polarity, ESO, mm (in.), Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps, Deposition Rate, kg/hr (lb/hr)
  • 0.045 in (1.1 mm): DC+, 45 (1 3/4), 5.1 (200), 25, 85, 1.6 (3.6)
  • 0.045 in (1.1 mm): DC+, 45 (1 3/4), 8.9 (350), 28, 125, 3.0 (6.6)
  • 0.045 in (1.1 mm): DC+, 45 (1 3/4), 12.7 (500), 31, 165, 4.3 (9.4)
  • 1/16 in (1.6 mm): DC+, 45 (1 3/4), 3.8 (150), 26, 125, 2.2 (4.8)
  • 1/16 in (1.6 mm): DC+, 45 (1 3/4), 6.4 (250), 29, 195, 3.8 (8.4)
  • 1/16 in (1.6 mm): DC+, 45 (1 3/4), 8.9 (350), 32, 245, 5.5 (12.1)
  • 5/64 in (2.0 mm): DC+, 45 (1 3/4), 3.2 (125), 24, 190, 3.2 (7.0)
  • 5/64 in (2.0 mm): DC+, 45 (1 3/4), 5.1 (200), 27, 295, 5.0 (11.0)
  • 5/64 in (2.0 mm): DC+, 45 (1 3/4), 6.4 (250), 30, 330, 6.2 (13.7)
  • 7/64 in (2.8 mm): DC+, 64 (2 1/2), 2.3 (90), 25, 280, 3.8 (8.4)
  • 7/64 in (2.8 mm): DC+, 64 (2 1/2), 3.2 (125), 27, 350, 5.2 (11.5)
  • 7/64 in (2.8 mm): DC+, 64 (2 1/2), 4.4 (175), 30, 420, 7.3 (16.0)
  • LECO Diameter: 5/64 in (2.0 mm)
  • LECO Package: 50 lb Coil
  • Diameter (in): 5/64
  • Part number: ED011278
  • UPC/EAN: 0015082024189
What's in the box
  • (1) 50 lb Coil
Compatibility & sizing
  • Compatible families: Lincore
  • Available diameters: 5/64
Why pros choose this

Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.

Warranty

1 Year

From the manufacturer

LINCORE 55 5/64 inch welding wire is produces a martensitic and some retained austenite deposit with a hardness range of Rockwell Hardness 50-59 (RHC) delivers a deposit which resists metal to-metal rolling or sliding wear as well as mild abrasion, offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features
  • Delivers a deposit which resists metal-to-metal rolling or sliding wear as well as mild abrasion
  • To be used on carbon steel, low alloy steel and manganese steels
  • Unlimited layers with proper preheat and interpass temperatures and procedures

Typical Applications

  • Crane wheels
  • Blower blades
  • Rail ends
  • Skip guides
  • Cams and transfer tables

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
Classification Number of layerHardness Rockwell C
Typical Result 1 Layer50-59
Typical Result 2 Layers50-60
Typical Result, Work-hardened 1 Layer53-62
Typical Result, Work-hardened 2 Layers56-62
Typical Result, Flame-hardened 2 Layers52-54
Typical Result, 180°C (350°F) Interpass Temp 1 Layer50-55
Typical Result, 180°C (350°F) Interpass Temp 2 Layers55-59
Classification Product Size%Al%C%Cr%Mn%Mo%P%S%Si
Typical Result .045" (1.1 mm)1.40.455.31.30.80.0100.0040.53
Typical Result 1/16" (1.6 mm)1.40.455.31.30.80.0100.0040.53
Typical Result 5/64" (2.0 mm)1.40.455.31.40.80.0100.0040.60
Typical Result 7/64" (2.8 mm)1.40.455.31.40.80.0100.0040.60
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
0.045 in (1.1 mm) DC+45 (1 3/4)5.1 (200)25851.6 (3.6)
0.045 in (1.1 mm) DC+45 (1 3/4)8.9 (350)281253.0 (6.6)
0.045 in (1.1 mm) DC+45 (1 3/4)12.7 (500)311654.3 (9.4)
1/16 in (1.6 mm) DC+45 (1 3/4)3.8 (150)261252.2 (4.8)
1/16 in (1.6 mm) DC+45 (1 3/4)6.4 (250)291953.8 (8.4)
1/16 in (1.6 mm) DC+45 (1 3/4)8.9 (350)322455.5 (12.1)
5/64 in (2.0 mm) DC+45 (1 3/4)3.2 (125)241903.2 (7.0)
5/64 in (2.0 mm) DC+45 (1 3/4)5.1 (200)272955.0 (11.0)
5/64 in (2.0 mm) DC+45 (1 3/4)6.4 (250)303306.2 (13.7)
7/64 in (2.8 mm) DC+64 (2 1/2)2.3 (90)252803.8 (8.4)
7/64 in (2.8 mm) DC+64 (2 1/2)3.2 (125)273505.2 (11.5)
7/64 in (2.8 mm) DC+64 (2 1/2)4.4 (175)304207.3 (16.0)
Note
Cold parts should be warmed to at least 25°C (75°F). Higher preheat of 150 - 260°C (300 - 500°F) may be necessary on thick parts or heavy sections.
Interpass temperatures between 150°C (300°F) and 200°C (400°F) do not affect the hardness of Lincore® 55 significantly.
LECO Diameter 5/64 in (2.0 mm)
LECO Package 50 lb Coil
Diameter (in) 5/64
