Lincoln Electric Lincolnweld ED011743 Submerged Arc Wire 1/8" – 60 lb

SKU: ED011743
$319.17 $348.60
Lincoln Elite Dealer
Free Shipping
Lowest Price
Mild Steel Solid Electrode
AWS / Classification: EL12
Overview

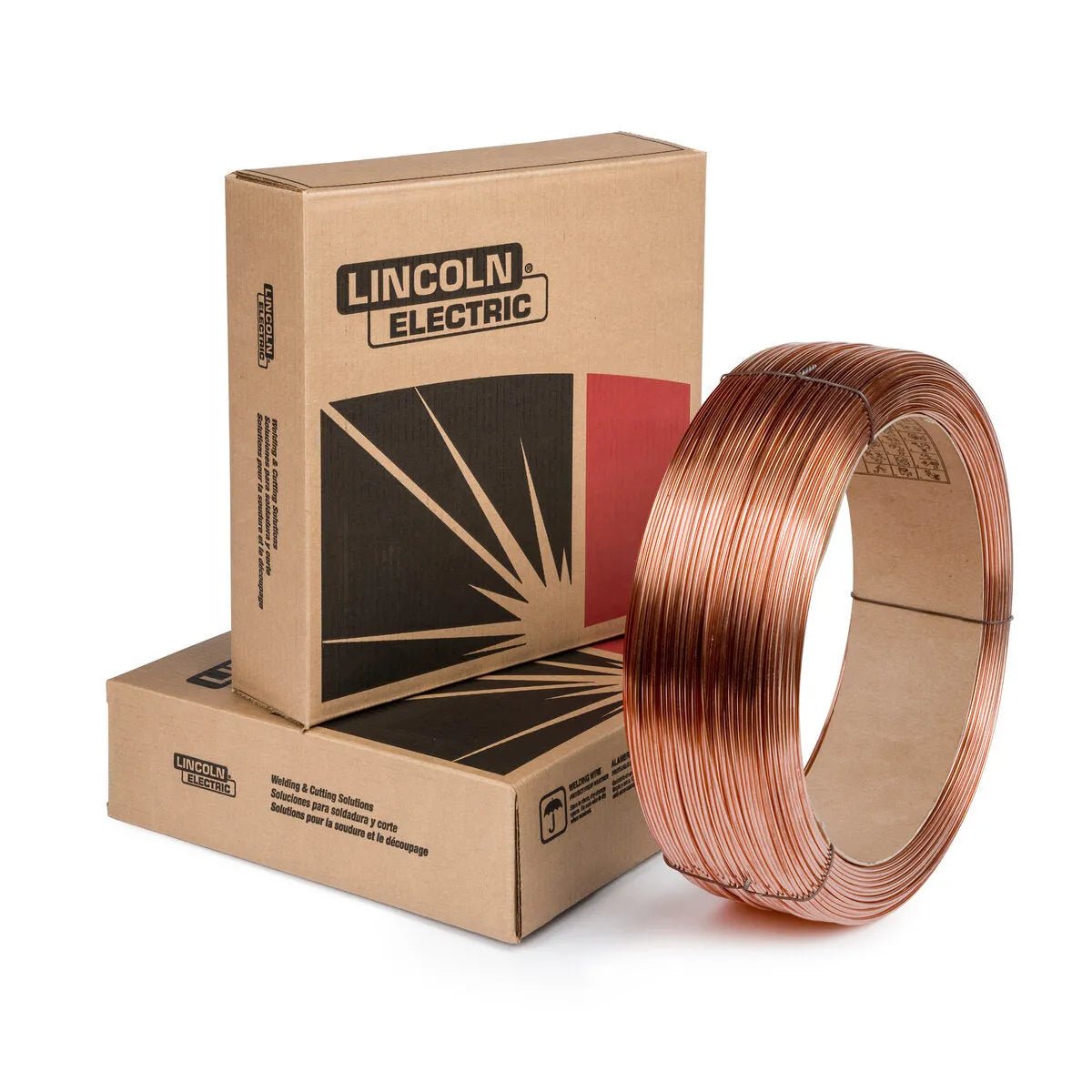

Lincoln ED011743 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 1/8 in, 60 lb Coil

Features

  • A low carbon, high manganese, very high silicon wire
  • Can be used with Lincolnweld® 800 series fluxes for welds requiring 480 MPa (70 ksi) tensile strength in stress relieved conditions
  • Actual (Type 3.1) certificates for each lot of wire showing chemical composition are available in the certificate center of lincolnelectric.com
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.17EL12
AWS AWS A5.23EL12
ISO ISO 14171-AS1
DB ISO 14171-SS1
MIL MIL-E-23765/4MIL-EL12
Classification %C%Mn%P%S%Si%Total Cu
EL12 Requirement 0.04 - 0.140.25 - 0.600.030 max.0.030 max.0.10 max.0.35 max.
S1 Requirement 0.05 - 0.150.35 - 0.600.025 max.0.025 max.0.15 max.
Typical Result 0.110.480.0050.0090.070.12
LECO Diameter 1/8 in (3.2 mm)
LECO Package 60 lb Coil
Diameter (in) 1/8
Includes
  • (1) 60 lb Coil
