Lincoln Electric Lincolnweld ED011751 3/32" – 1000 lb

Q: What process is the Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum designed for?

The Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What is the AWS classification of the Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum?

The Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum carries AWS EL12 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Q: What diameter is the Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum available in?

Common SAW wire diameters range from 5/64 in to 7/32 in. Smaller diameter wire (5/64, 3/32 in) suits lower heat-input applications, tight-groove work, and thinner plate. Larger diameter wire (5/32, 3/16, 7/32 in) maximizes deposition rate for heavy plate and multi-pass structural welds. Consult the wire manufacturer's parameter chart for amperage, voltage, and travel speed by diameter.

Q: What spool or coil size is the Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED011751

$5,334.21 ~~$5,830.00~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

Mild Steel Solid Electrode

AWS / Classification: EL12

Overview

Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum

Features

A low carbon, low manganese, low silicon general purpose electrode
Provides the lowest hardness and is best suited for use with the Lincolnweld® 700 series of active fluxes
Actual (Type 3.1) certificates for each lot of wire showing chemical composition are available in the certificate center of lincolnelectric.com

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.17EL12
AWS	AWS A5.23EL12
ISO	ISO 14171-AS1
DB	ISO 14171-SS1
MIL	MIL-E-23765/4MIL-EL12
Classification	%C%Mn%P%S%Si%Total Cu
EL12 Requirement	0.04 - 0.140.25 - 0.600.030 max.0.030 max.0.10 max.0.35 max.
S1 Requirement	0.05 - 0.150.35 - 0.600.025 max.0.025 max.0.15 max.
Typical Result	0.110.480.0050.0090.070.12
LECO Diameter	3/32 in (2.4 mm)

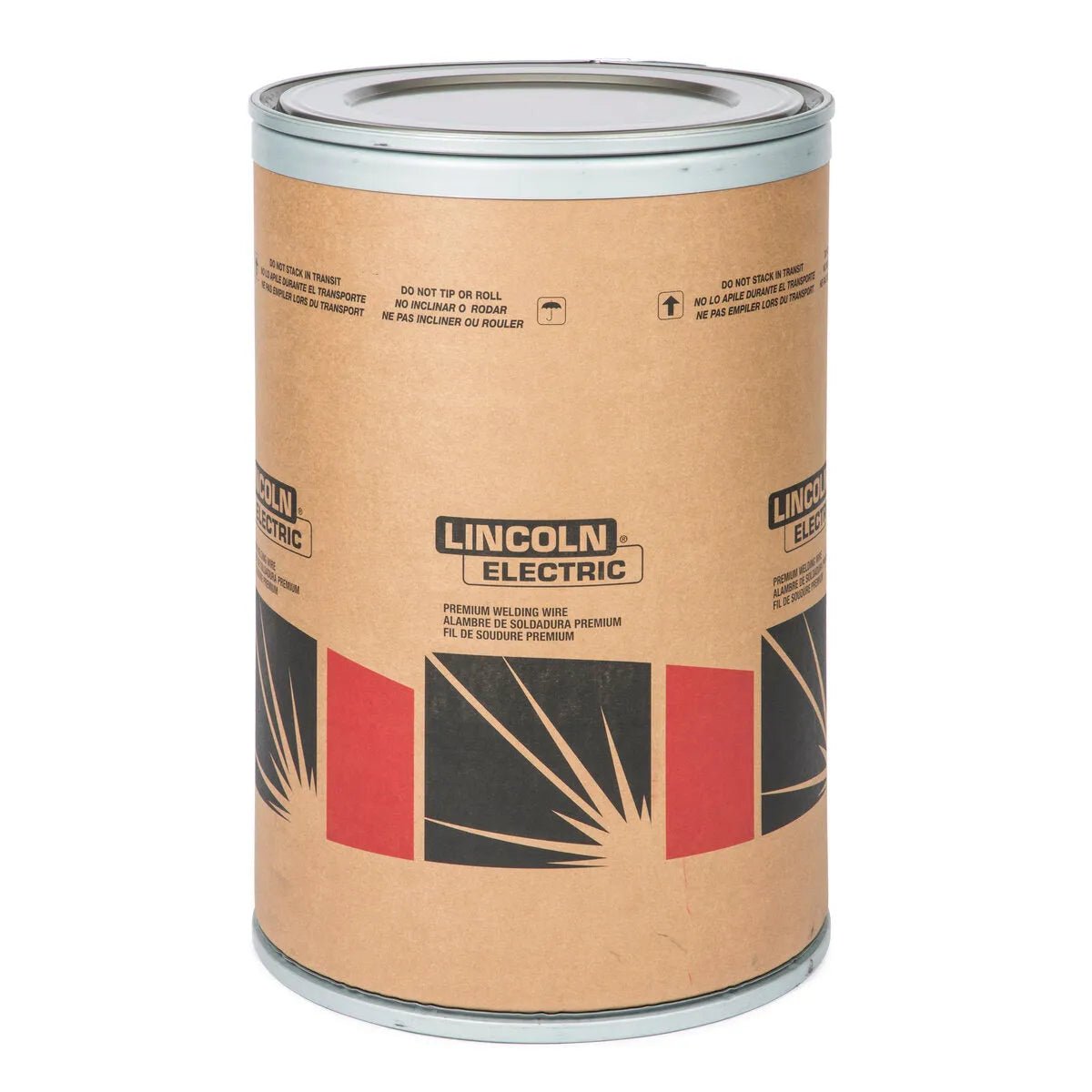

LECO Package	1000 lb Speed Feed® Drum
Diameter (in)	3/32

Includes

(1) 1000 lb Speed Feed® Drum

Reviews

Q&A

Product Overview

Lincoln ED011751 Lincolnweld L-60 Submerged Arc SAW Welding Wire, 3/32 in, 1000 lb Speed Feed Drum

Features

A low carbon, low manganese, low silicon general purpose electrode
Provides the lowest hardness and is best suited for use with the Lincolnweld® 700 series of active fluxes
Actual (Type 3.1) certificates for each lot of wire showing chemical composition are available in the certificate center of lincolnelectric.com

Specifications

Feature	Value
CONFORMANCES	SPECIFICATIONCLASSIFICATION
AWS	AWS A5.17EL12
AWS	AWS A5.23EL12
ISO	ISO 14171-AS1
DB	ISO 14171-SS1
MIL	MIL-E-23765/4MIL-EL12
Classification	%C%Mn%P%S%Si%Total Cu
EL12 Requirement	0.04 - 0.140.25 - 0.600.030 max.0.030 max.0.10 max.0.35 max.
S1 Requirement	0.05 - 0.150.35 - 0.600.025 max.0.025 max.0.15 max.
Typical Result	0.110.480.0050.0090.070.12
LECO Diameter	3/32 in (2.4 mm)
LECO Package	1000 lb Speed Feed® Drum
Diameter (in)	3/32
