Lincoln Electric  |  SKU: ED012163

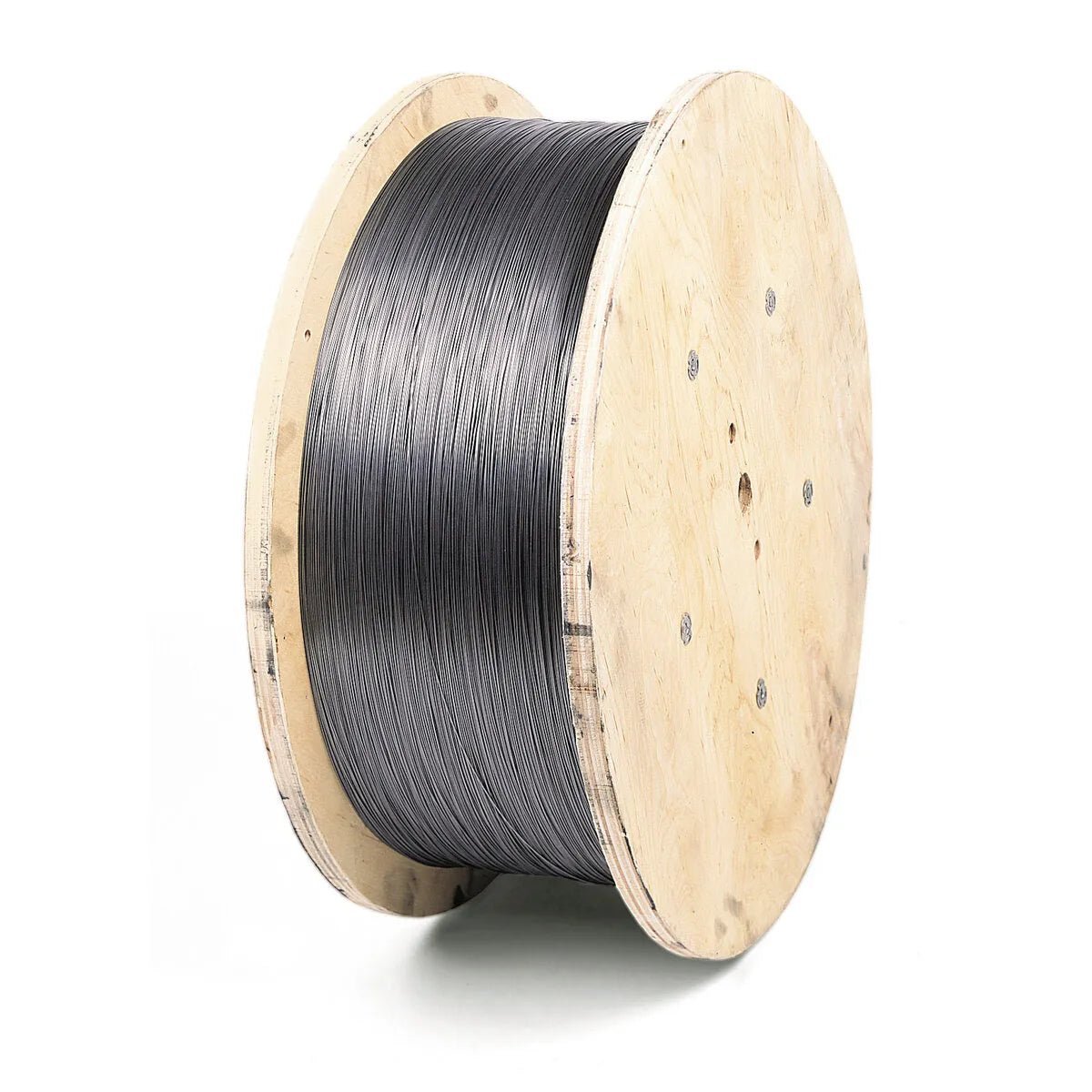

Lincoln ED012163 Innershield NR-131 Flux-Cored FCAW-S Welding Wire, 3/32 in, 600 lb Speed Feed Reel

$4,056.00
Innershield® NR®-131 from Lincoln Electric is designed for high deposition rates at high speeds.
AWS / Classification: E70T-10, E70T10S

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED012163 Innershield NR-131 Flux-Cored FCAW-S Welding Wire, 3/32 in, 600 lb Speed Feed Reel

Designed for high deposition rates at high speeds. Recommended for single pass welding on material thicknesses of 2.8 mm (0.110 in) or greater.

Features

• Fast travel speeds and high deposition rates Maximum penetration Flat bead profile on butt welds
• Join dissimilar plate thicknesses with even heat distribution
• Warning: NR-131 is NOT recommended for multiple passes.

Lincoln ED012163 Innershield NR-131 Flux-Cored FCAW-S Welding Wire, 3/32 in, 600 lb Speed Feed Reel

Designed for high deposition rates at high speeds. Recommended for single pass welding on material thicknesses of 2.8 mm (0.110 in) or greater.

Features

• Fast travel speeds and high deposition rates Maximum penetration Flat bead profile on butt welds
• Join dissimilar plate thicknesses with even heat distribution
• Warning: NR-131 is NOT recommended for multiple passes.

Includes

What's Included
  • (1) 600 lb Speed Feed® Reel

Specifications

CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.20 E70T-10
AWS AWS A5.36 E70T10S
MECHANICAL PROPERTIES
Classification Polarity Transverse Tensile Strength, MPa (ksi) Longitudinal Face Bend
E70T-10 Requirement DC- 480 (70) min. No opening in excess of 1/8 inch
E70T10S Requirement DC- 480 (70) min. No opening in excess of 1/8 inch
Typical Result, As-welded DC- 520-550 (75-80) Passed
DEPOSIT COMPOSITION
Classification %Al %C %Mn %P %S %Si
Typical Result 1.18-1.49 0.22-0.26 0.42-0.65 0.02 0.01 0.20-0.27
TYPICAL OPERATING PROCEDURES
Diameter Arc Polarity CTWD, mm (in.) Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr) Deposition Rate, kg/hr (lb/hr) Efficiency, %
3/32 in (2.4 mm) Single Arc DC- 38 (1-1/2) 3.8 (150) 25-26 390 6.5 (14.3) 5.3 (11.6) 81
3/32 in (2.4 mm) Single Arc DC- 38 (1-1/2) 5.1 (200) 25-27 490 8.6 (19.0) 7.1 (15.6) 82
3/32 in (2.4 mm) Single Arc DC- 38 (1-1/2) 6.4 (250) 26-27 570 10.8 (23.7) 8.9 (19.6) 82
3/32 in (2.4 mm) Single Arc DC- 38 (1-1/2) 8.9 (350) 26-28 720 15.0 (33.1) 12.5 (27.6) 83
3/32 in (2.4 mm) Single Arc DC- 38 (1-1/2) 10.8 (425) 27-28 810 18.2 (40.1) 15.2 (33.6) 83
3/32 in (2.4 mm) Twinarc DC- 44 (1-3/4) 3.3 (130) 25-26 550 11.1 (24.5) 8.1 (17.9) 72
3/32 in (2.4 mm) Twinarc DC- 44 (1-3/4) 4.4 (175) 26-27 740 15.0 (33.0) 12.0 (26.4) 79
3/32 in (2.4 mm) Twinarc DC- 44 (1-3/4) 5.7 (225) 26-28 910 19.3 (42.5) 15.8 (34.8) 81
3/32 in (2.4 mm) Twinarc DC- 44 (1-3/4) 7.0 (275) 27-29 1030 23.5 (51.9) 19.1 (42.0) 80
3/32 in (2.4 mm) Twinarc DC- 44 (1-3/4) 8.3 (325) 28-30 1090 27.9 (61.4) 21.9 (48.2) 78
LECO Diameter 3/32 in (2.4 mm)
LECO Package 600 lb Speed Feed® Reel
Diameter (in) 3/32
