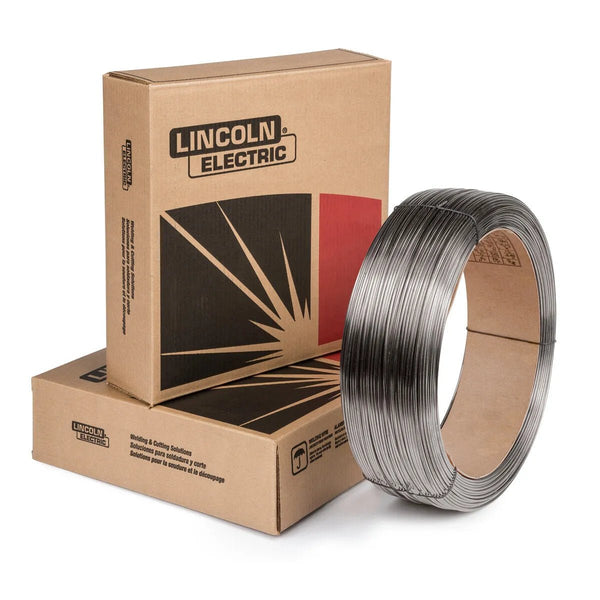

Lincoln Electric Innershield ED012386 Flux-Core Wire 5/64" – 50 lb

Product Overview

Lincoln Electric — Lincoln ED012386 Innershield NR-203 Nickel (1%) Flux-Cored FCAW-S Welding Wire, 5/64 in, 50 lb Coil

Innershield® NR®-203 Nickel (1%) from Lincoln Electric is designed to produce a nickel bearing weld deposit with impact properties capable of exceeding 27 J (20 ft·lbf) at -29°C (-20°F).

Specifications

• CONFORMANCES: SPECIFICATION, CLASSIFICATION
• AWS: AWS A5.29, E71T8-Ni1-H8
• ABS: ABS - Part 2, 3YSA
• CWB: CSA W48, E491T8-A3-Ni1-H16 (E491T8-Ni1-H16)
• DNV-GL: DNV - 2.9, III YMS H10
• DB: ISO 17632-A, T 42 3 1Ni Y N 1 H10
• LR: LR - Chapter 11, 3YS H15
• Classification: Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %, Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F), Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
• E71T8-Ni1-H8 Requirement: DC-, 400 (58) min., 480-620 (70-90), 20 min., 27 (20) min.
• Typical Result, As-welded: DC-, 400 (58), 510-580 (74-84), 22, 120-218 (89-161), 72-110 (53-81)
• Classification: Polarity, %Al, %B, %C, %Cr, %Mn, %Mo, %Ni, %P, %S, %Si, %V, Diffusible Hydrogen, mL/100g Weld Metal
• Typical Result: DC-, 0.7-1.0, 0.0014, 0.06-0.10, 0.02-0.04, 1.08-1.23, 0.01, 0.86-1.00, 0.010, 0.004, 0.25-0.29, 0.01, 3.9
• Diameter: Polarity, CTWD, mm (in.), Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps, Melt-off Rate, kg/hr (lb/hr), Deposition Rate, kg/hr (lb/hr), Efficiency, %
• 5/64 in (2.0 mm): DC-, 25 (1), 1.3 (50), 16-17, 145, 1.4 (3.0), 1.0 (2.3), 76
• 5/64 in (2.0 mm): DC-, 25 (1), 1.8 (70), 18-19, 195, 2.0 (4.3), 1.5 (3.3), 76
• 5/64 in (2.0 mm): DC-, 25 (1), 2.3 (90), 19-20, 240, 2.5 (5.5), 2.0 (4.3), 78
• 5/64 in (2.0 mm): DC-, 25 (1), 2.8 (110), 20-21, 275, 3.0 (6.7), 2.4 (5.3), 79
• 5/64 in (2.0 mm): DC-, 25 (1), 3.0 (120), 21-22, 290, 3.3 (7.3), 2.6 (5.8), 79
• 5/64 in (2.0 mm): DC-, 25 (1), 3.5 (140), 22-23, 310, 3.9 (8.5), 3.0 (6.9), 81
• LECO Diameter: 5/64 in (2.0 mm)
• LECO Package: 50 lb Coil
• Diameter (in): 5/64
• Part number: ED012386
• UPC/EAN: 0015082026480

What's in the box

• (1) 50 lb Coil

Compatibility & sizing

• Lincoln category: Filler Metals - Self-Shielded Flux-Cored
• Compatible families: Innershield
• Available diameters: 5/64

Why pros choose this

Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.

From the manufacturer

Innershield NR-203 Nickel (1%) Flux-Cored FCAW-S Welding Wire, 5/64 inches is designed to produce a nickel bearing weld deposit with impact properties capable of exceeding 27 J (20 ft·lbf) at -29°C (-20°F). It handles poor fit-up in the vertical up position and welds gaps up to 9.5 mm (3/8 in).

Features

• Designed to produce a nickel bearing weld deposit
• Capable of producing weld deposits with impact toughness exceeding 27 J (20 ft·lbf) at -29°C (-20°F)
• Color match on weathering steels
• Handles poor fit-up
• Root bead capability



Typical Applications

• Roundabout groove welds on heavy wall tubular construction
• Offshore
• Bridges and other structural components made from weathering steels
• Structural fabrication
• NACE applications



Welding Positions

• All
