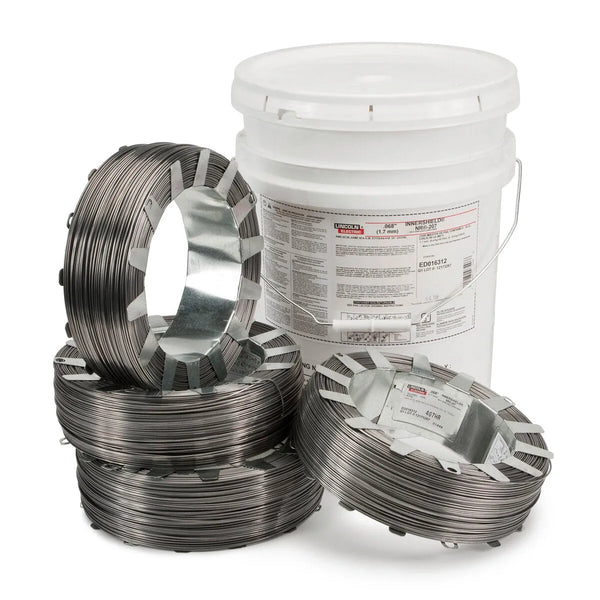

Lincoln ED012438 Innershield NR-207 Flux-Cored FCAW-S Welding Wire, 5/64 in, (4) 14 lb Coil

SKU: ED012438
$618.30 $663.04
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.

Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)

Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.

Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.


Innershield® NR®-207 from Lincoln Electric is designed for vertical down, hot, fill and cap passes on standard cross-country pipelines and arctic grade pipe.
AWS / Classification: E71T8-K6-H16, E71T8-A2-K6-H16
Overview

Designed for vertical down, hot, fill and cap passes on standard cross-country pipelines and arctic grade pipe. Recommended for API Pipe Grades X42 up to undermatching X70.

Features
  • Vertical down hot, fill and cap passes on standard cross-country pipelines and arctic grade pipe
  • Recommended for API grades X42 up to undermatching X70
  • High deposition rates

Typical Applications

  • Standard cross-country pipelines
  • Arctic grade pipe up to undermatched X70

Welding Positions

  • All
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29E71T8-K6-H16
AWS AWS A5.36E71T8-A2-K6-H16
ABS AWS A5.29E71T8-K6
BV BV - Chapter 5SA3YMH
CWB CSA W48E491T8-A3-K6-H16 (E491T8-K6-H16)
DNV-GL DNV - 2.9III YMS H15
Classification PolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T8-K6-H16 Requirement DC-400 (58) min.480-620 (70-90)20 min.27 (20) min.
E71T8-A2-K6-H16 Requirement DC-400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded DC-410 (59)520-570 (75-82)2631-197 (23-145)
Classification Polarity%Al%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal
E71T8-K6-H16 Requirement DC-1.8 max.0.15 max.0.20 max.0.50 - 1.500.15 max.0.40 - 1.000.030 max.0.030 max.0.80 max.0.05 max.16.0 max.
E71T8-A2-K6-H16 Requirement DC-1.8 max.0.15 max.0.20 max.0.50 - 1.500.15 max.0.40 - 1.000.030 max.0.030 max.0.80 max.0.05 max.16 max.
Typical Result DC-0.8-1.10.05-0.070.02-0.050.86-1.030.030.72-0.900.0090.0040.24-0.300.0056.0
Diameter PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.068 in (1.7 mm) DC-25 (1)2.0 (80)17-181901.7 (3.8)1.3 (3.0)79
0.068 in (1.7 mm) DC-25 (1)2.6 (105)18-192302.2 (5.3)1.8 (4.0)80
0.068 in (1.7 mm) DC-25 (1)3.0 (120)19-202452.5 (5.7)2.0 (4.5)79
0.068 in (1.7 mm) DC-25 (1)3.5 (140)21-222753.0 (6.8)2.4 (5.5)81
0.068 in (1.7 mm) DC-25 (1)4.4 (175)21-222953.6 (8.0)2.9 (6.4)80
5/64 in (2.0 mm) DC-25 (1)1.7 (70)17-182052.0 (4.5)1.5 (3.4)76
5/64 in (2.0 mm) DC-25 (1)2.0 (80)18-192252.3 (5.1)1.7 (3.9)76
5/64 in (2.0 mm) DC-25 (1)2.2 (90)18-192402.6 (5.8)2.0 (4.5)78
5/64 in (2.0 mm) DC-25 (1)2.7 (110)20-212753.1 (7.0)2.4 (5.5)79
5/64 in (2.0 mm) DC-25 (1)3.3 (130)20-213003.7 (8.3)2.9 (6.5)78
LECO Diameter 5/64 in (2.0 mm)
LECO Package (4) 14 lb Coil
Diameter (in) 5/64
Downloads
Includes
  • (4) 14 lb Coil
