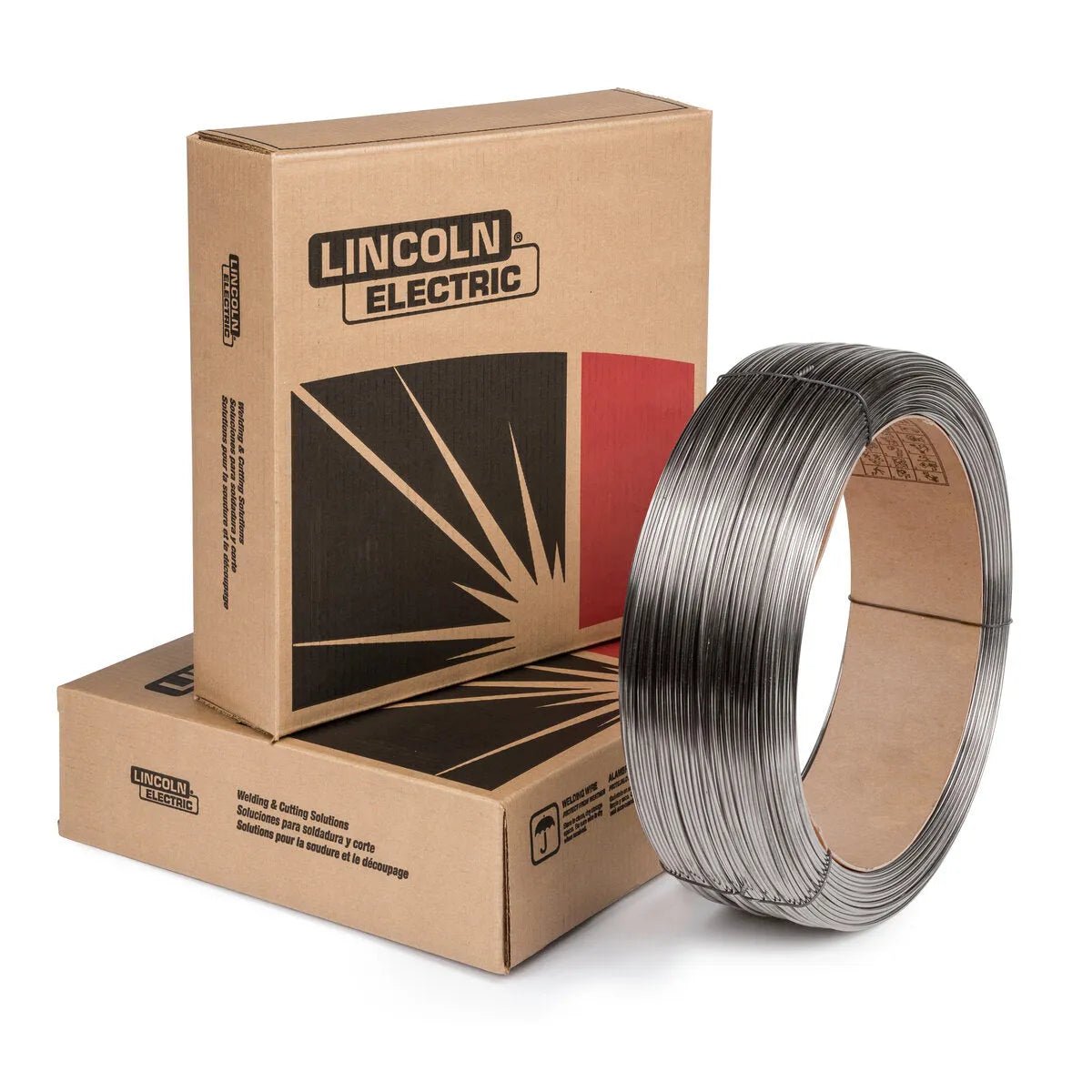

Lincoln Electric — Lincoln ED012593 Innershield NR-305 Flux-Cored FCAW-S Welding Wire, 3/32 in, 50 lb Coil
Innershield® NR®-305 from Lincoln Electric is designed for in-position, high deposition welding on carbon steel.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.20, E70T-6-H8
- AWS: AWS A5.36, E70T6-A2-CS3-H8
- ABS: ABS - Part 2, 2YSA
- ABS: AWS A5.20, E70T-6-H16
- DNV-GL: DNV - 2.9, II YMS
- DB: ISO 17632-A, T 42 0 W N 3 H15
- Classification: Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %, Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
- E70T-6-H8 Requirement: DC+, 400 (58) min., 480-660 (70-95), 22 min., 27 (20) min.
- E70T6-A2-CS3-H8 Requirement: DC+, 400 (58) min., 480-660 (70-95), 22 min., 27 (20) min.
- Typical Result, As-welded: DC+, 410 (60), 530-590 (76-86), 23, 35-64 (26-47)
- Classification: Polarity, %Al, %B, %C, %Mn, %P, %S, %Si, Diffusible Hydrogen, mL/100g Weld Metal
- E70T-6-H8 Requirement: DC+, 0.30 max., 1.75 max., 0.03 max., 0.03 max., 0.60 max., 8.0 max.
- E70T6-A2-CS3-H8 Requirement: DC+, 0.30 max., 1.75 max., 0.030 max., 0.030 max., 0.60 max., 8 max.
- Typical Result: DC+, 0.7-1.0, 0.0019, 0.05-0.08, 1.19-1.61, 0.020, 0.010, 0.17-0.28, 5.1
- Diameter: Polarity, CTWD, mm (in.), Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps, Melt-off Rate, kg/hr (lb/hr), Deposition Rate, kg/hr (lb/hr), Efficiency, %
- 5/64 in (2.0 mm): DC+, 35-51 (1 3/8-2), 4.4 (175), 20-22, 300, 8.5 (10.5), 4.0 (8.8), 84
- 5/64 in (2.0 mm): DC+, 35-51 (1 3/8-2), 5.6 (220), 21-23, 330, 6 .0 (13.3), 5.0 (11.1), 83
- 5/64 in (2.0 mm): DC+, 35-51 (1 3/8-2), 6.6 (260), 22-24, 360, 7.1 (15.7), 5.9 (13.1), 83
- 5/64 in (2.0 mm): DC+, 35-51 (1 3/8-2), 7.6 (300), 24-26, 375, 8.2 (18.1), 6.9 (15.2), 84
- 5/64 in (2.0 mm): DC+, 35-51 (1 3/8-2), 8.3 (325), 25-27, 400, 8.9 (19.7), 7.4 (16.4), 83
- 3/32 in (2.4 mm): DC+, 41-54 (1 5/8-2 1/4)⁽⁴⁾, 4.1 (160), 21-23, 330, 6.0 (13.3), 5.0 (11.0), 82
- 3/32 in (2.4 mm): DC+, 41-54 (1 5/8-2 1/4)⁽⁴⁾, 6.1 (240), 24-26, 425, 9.1 (20.0), 7.6 (16.7), 83
- 3/32 in (2.4 mm): DC+, 41-54 (1 5/8-2 1/4)⁽⁴⁾, 7.6 (300), 27-29, 475, 11.3 (25.0), 9.5 (21.0), 84
- 3/32 in (2.4 mm): DC+, 41-54 (1 5/8-2 1/4)⁽⁴⁾, 10.2 (400), 33-35, 525, 15.2 (33.4), 12.7 (28.0), 83
- LECO Diameter: 3/32 in (2.4 mm)
- LECO Package: 50 lb Coil
- Diameter (in): 3/32
- Part number: ED012593
- UPC/EAN: 0015082027401
What's in the box
- (1) 50 lb Coil
Compatibility & sizing
- Compatible families: Innershield
- Available diameters: 3/32
Why pros choose this
Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.
From the manufacturer
Lincoln Innershield NR-305 3/32 inch Welding Wire is designed for in-position, high deposition welding on carbon steel. Recommended in single or multiple pass, automatic and semiautomatic welding.
Features
- High deposition rates in the flat and horizontal positions
- Smooth arc and low spatter levels
- Capable of producing weld deposits with impact properties exceeding 27 J (20 ft·lbf) at -29°C (-20°F)
- Welds on lightly rusted or primed plate
- Notes: AWS D1.8 structural steel seismic supplement test data can be found in the Lincoln Electric Certificate Center
Typical Applications
- General plate fabrication
- Structural fabrication, including those subject to seismic requirements
- Shipyards, stiffener welding on barges
- Bridges and offshore rigs
- Welding over tack welds made with stick electrode
Welding Positions
- Flat/Horizontal
