Lincoln Electric — Lincoln ED012699 Innershield NR-5 Flux-Cored FCAW-S Welding Wire, 3/32 in, 600 lb Speed Feed Drum
Innershield® NR®-5 from Lincoln Electric is designed for high speed single pass welding applications.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.20, E70T-3
- AWS: AWS A5.36, E70T3S
- Classification: Polarity, Transverse Tensile Strength, MPa (ksi), Longitudinal Face Bend
- E70T-3 Requirement: DC+, 480 (70) min., No opening in excess of 1/8 inch
- Typical Result, As-welded: DC+, 530-570 (77-82), Passed
- Classification: Polarity, %Al, %C, %Mn, %P, %S, %Si, %Ti
- Typical Result: DC+, 0.12-0.18, 0.15-0.17, 0.82-0.96, 0.014 max., 0.015 max., 0.37, 0.500-0.580
- LECO Diameter: 3/32 in (2.4 mm)

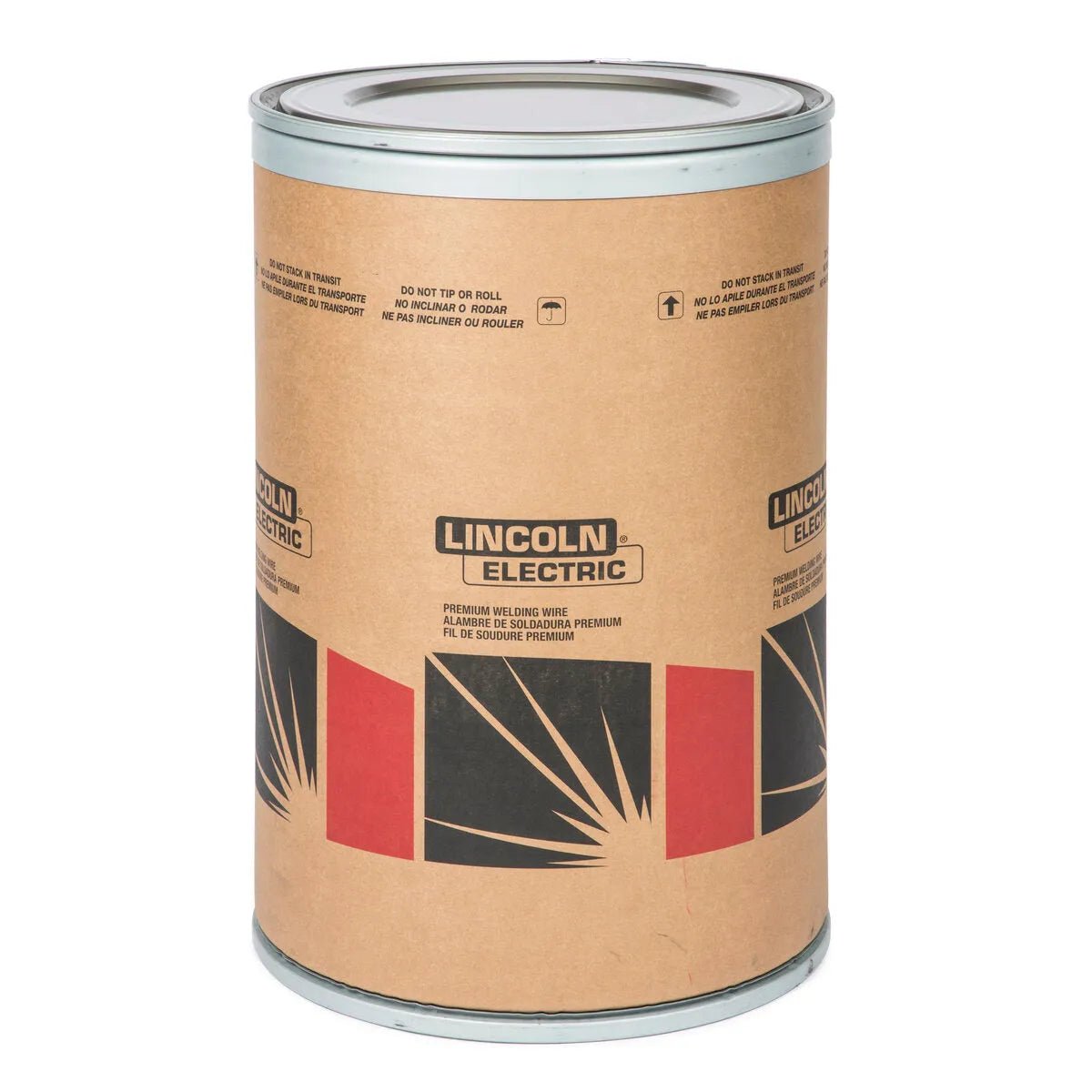

- LECO Package: 600 lb Speed Feed® Drum
- Diameter (in): 3/32
- Part number: ED012699
- UPC/EAN: 0015082027999
What's in the box
- (1) 600 lb Speed Feed® Drum
Compatibility & sizing
- Compatible families: Innershield
- Electrode type: Flux-Core Self-Shielded
- Available diameters: 3/32"
Why pros choose this
Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.
From the manufacturer
Innershield NR-5 3/32 inch welding wire is designed for high speed single pass welding applications. Recommended for flat and horizontal positions with maximum steel thickness up to 4.8 mm (3/16 in).
Features
- Fast travel speeds
- Increased resistance to porosity
- Consistent bead appearance
- Warning: NR-5 is NOT recommended for welding multiple passes
Typical Applications
- Single pass welding on up to 48 mm (3/16 in) thicknesses
- 3 o'clock welding positions
- Welds with copper back-up
- Propane cylinders
- Robotics/Hard Automation
Welding Positions
- Flat/Horizontal
