LINCORE® 30-S Metal-Cored Submerged Arc Wire is Ideal for automatic, semiautomatic on mild and low alloy steels intended for build-up before final overlay, and as a final surface for metal-to-metal wear with moderate impact(Build-up).
- Flux: Classification, Number of layer, Hardness Rockwell C
- Lincolnweld® 801®: Typical Result, 6, 27
- Flux: Classification, %C, %Mn, %Mo, %Si
- Lincolnweld® 801®: Typical Result, 0.11, 2.5, 0.5, 0.4
- Lincolnweld® 801®: Typical Result, 0.11, 2.5, 0.5, 0.4
- Lincolnweld® 801®: Typical Result, 0.11, 2.7, 0.5, 0.6
- Diameter: Polarity, Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps
- 3/32 in (2.4 mm): DC+, 1.5 (60), 26, 220
- 3/32 in (2.4 mm): DC+, 3.0 (120), 27, 360
- 3/32 in (2.4 mm): DC+, 4.6 (180), 28, 500
- 1/8 in (3.2 mm): DC+, 1.3 (50), 27, 310
- 1/8 in (3.2 mm): DC+, 2.0 (80), 28, 450
- 1/8 in (3.2 mm): DC+, 2.8 (110), 28, 600
- LECO Diameter: 1/8 in (3.2 mm)

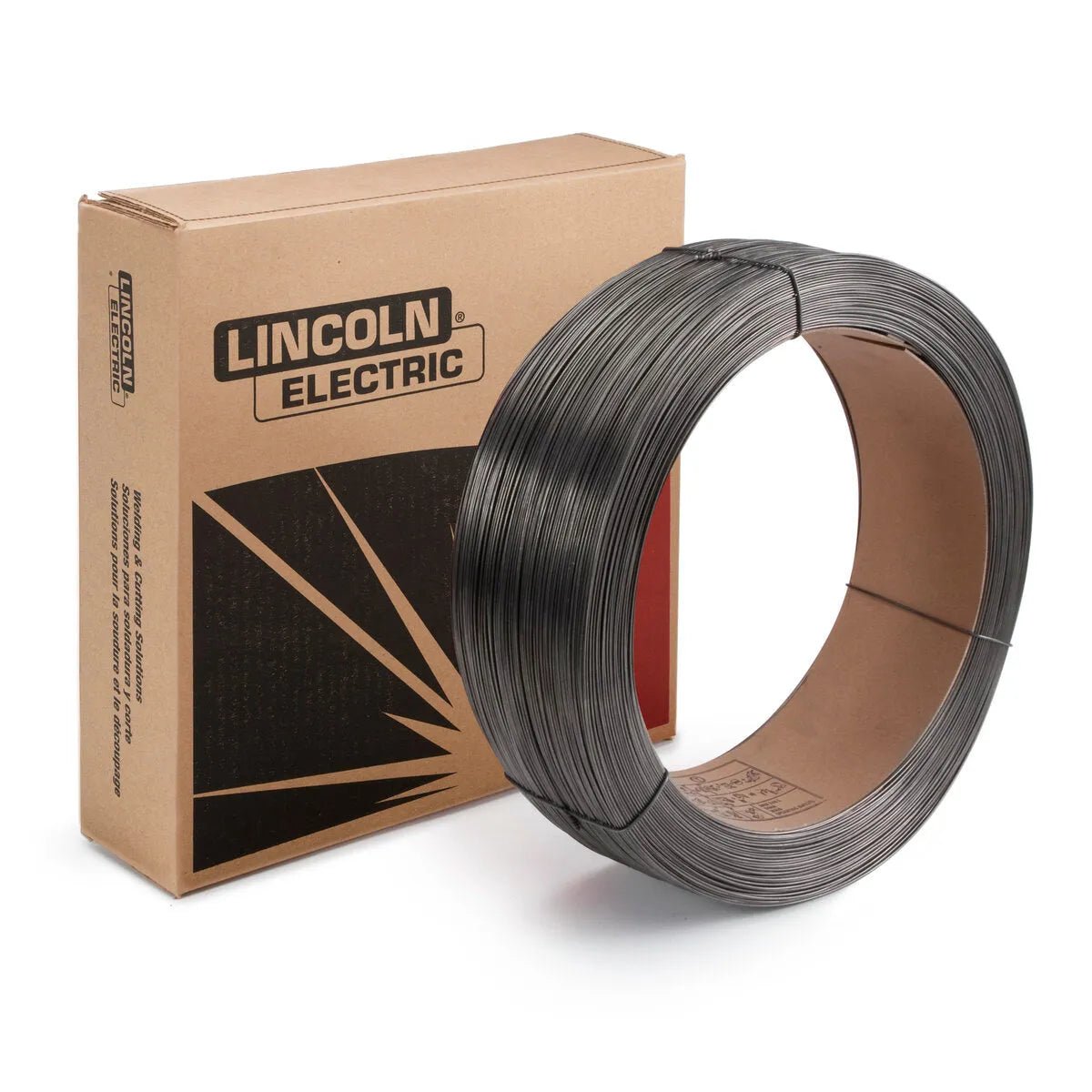

- LECO Package: 50 lb Coil
- Diameter (in): 1/8
- Part number: ED015889
- UPC/EAN: 0015082034515
- (1) 50 lb Coil
- Compatible families: Lincore
- Available diameters: 1/8
Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.
1 Year
LINCORE® 30-S 1/8 inch Submerged Arc is developed for build-up on tractor rollers, trunnions, idlers and crane wheels before final overlay, and as a final surface for improved resistance, offers moderate impact on shafts, track rails and idlers hardfacing application with unlimited deposit layers and very high quality of weld metal.
- Intended for build-up before final overlay, and as a final surface for metal-to-metal wear with moderate impact
- For automatic and semiautomatic operation on mild and low alloy steels
- Good resistance to cross checking
- Unlimited deposit thickness with proper preheat and interpass temperatures and procedures
