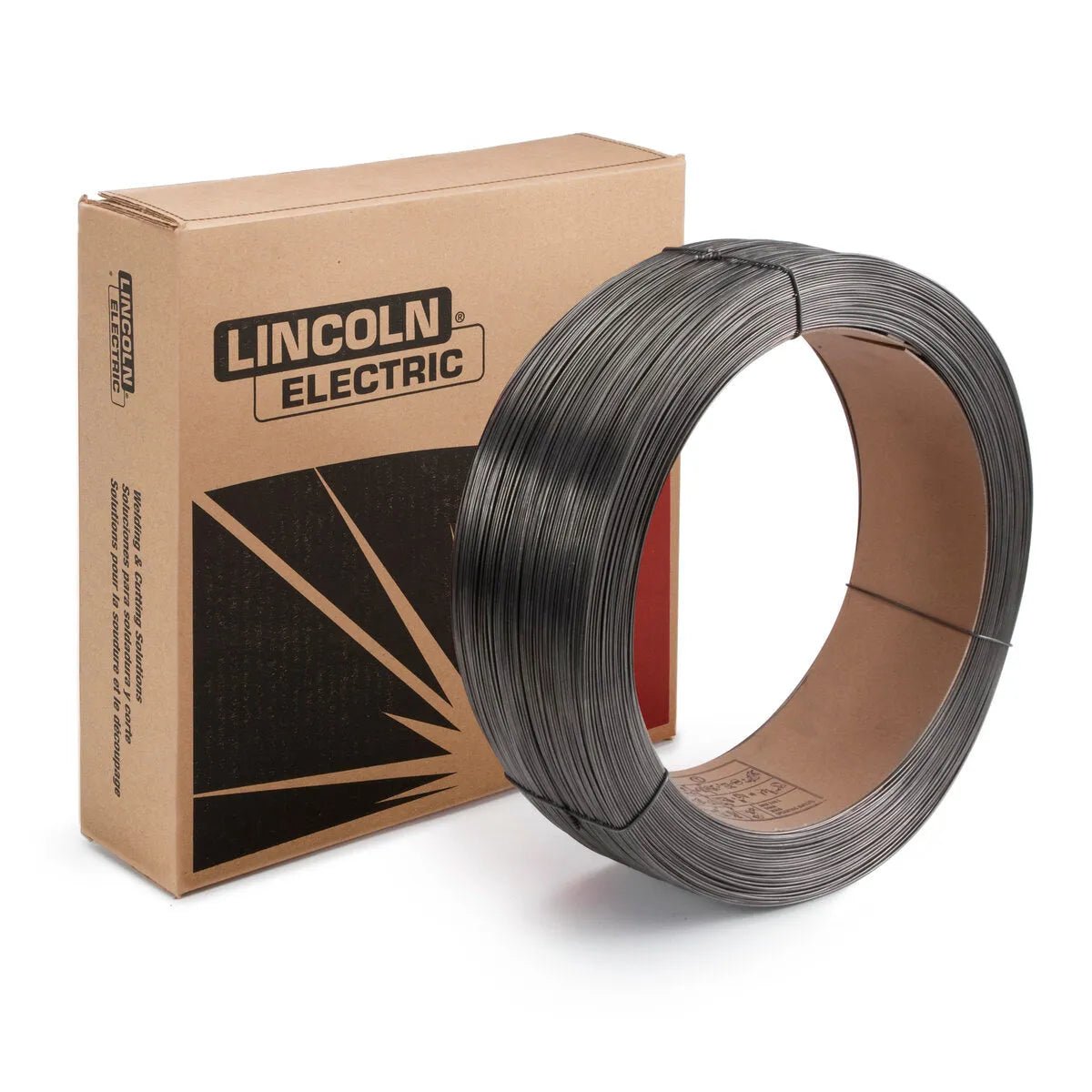

Lincoln Electric — Lincoln ED015892 Lincore 40-S Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 50 lb Coil
LINCORE® 40-S Metal-Cored Submerged Arc Wire designed for rebuilding heavy equipment undercarriages, use on carbon and low alloy steels for good puddle control on roundabout welding limited to 4 layers (Metal-to-Metal).
Specifications
- Flux: Classification, Hardness Rockwell C⁽¹⁾
- Lincolnweld® 801®: Typical Result, 39-42
- Flux: Classification, %C, %Cr, %Mn, %Mo, %Si
- Lincolnweld® 801®: Typical Result, 0.12, 3.30, 2.75, 0.85, 0.50
- Diameter: Polarity, Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps
- 1/8 in (3.2 mm): DC+, 1.7 (65), 27, 330
- 1/8 in (3.2 mm): DC+, 2.3 (90), 28, 425
- 1/8 in (3.2 mm): DC+, 3.0 (120), 29, 525
- 1/8 in (3.2 mm): DC+, 2.0 (80), 29, 345
- 1/8 in (3.2 mm): DC+, 2.8 (110), 30, 425
- 1/8 in (3.2 mm): DC+, 3.7 (145), 31, 500
- 1/8 in (3.2 mm): DC+, 2.5 (100), 31, 375
- 1/8 in (3.2 mm): DC+, 3.3 (130), 32, 435
- 1/8 in (3.2 mm): DC+, 4.6 (180), 33, 520
- LECO Diameter: 1/8 in (3.2 mm)
- LECO Package: 50 lb Coil
- Diameter (in): 1/8
- Part number: ED015892
- UPC/EAN: 0015082034546
What's in the box
- (1) 50 lb Coil
Compatibility & sizing
- Compatible families: Lincore
- Available diameters: 1/8
Why pros choose this
Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.
Warranty
1 Year
From the manufacturer
LINCORE 40-S 1/8 inch welding wire offers higher chromium, manganese and molybdenum compared to LINCORE® 35-S for good puddle control on circumferential hardfacing with recommended Lincoln weld® 801, 802, 860, and Lincoln weld® 880 standard flux for semiautomatic operations.
Features
- Designed for rebuilding heavy equipment undercarriages
- Deposit is machinable and hot forgeable and resists rolling and sliding metal-to-metal wear
- Use on carbon and low alloy steels for good puddle control on roundabout welding
- Limited to 4 layers
