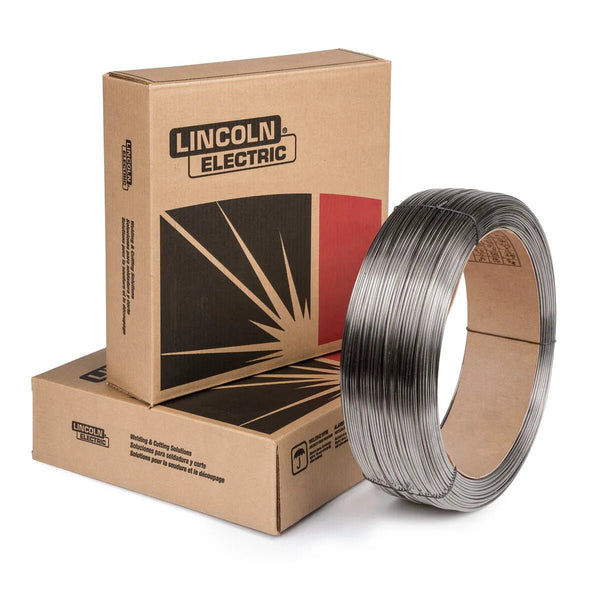

Lincoln Electric Innershield ED017822 Flux-Core Wire 3/32" – 50 lb

SKU: ED017822
$471.60 $515.00
Lincoln Elite Dealer
Free Shipping
Lowest Price
Innershield® NR®-311 Ni from Lincoln Electric is designed to provide a nominal 1.5% nickel weld deposit with high deposition rates and fast travel.
AWS / Classification: E70T7-K2-H16, E80TG-K2-H16, E70T7-A2-K2-H16, E80TG-A2-K2-H16
Overview
Lincoln Electric — Lincoln ED017822 Innershield NR-311 Ni Flux-Cored FCAW-S Welding Wire, 3/32 in, 50 lb Coil

Innershield® NR®-311 Ni from Lincoln Electric is designed to provide a nominal 1.5% nickel weld deposit with high deposition rates and fast travel.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.29, E70T7-K2-H16, E80TG-K2-H16
  • AWS: AWS A5.36, E70T7-A2-K2-H16, E80TG-A2-K2-H16
  • ABS: ABS - Part 2, 2YSA
  • BV: BV - Chapter 5, SA2YM
  • DNV-GL: DNV - 2.9, II YMS
  • DB: ISO 17632-A, T 42 2 1, 5Ni W N 5
  • LR: LR - Chapter 11, 2YS
  • Classification: Polarity, Yield Strength @ 0.2% Offset, MPa (ksi), Tensile Strength, MPa (ksi), Elongation, %, Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
  • E70T7-K2-H16 Requirement: DC-, 400 (58) min., 480-620 (70-90), 20 min., 27 (20) min.
  • E70T7-A2-K2-H16 Requirement: DC-, 400 (58) min., 480-660 (70-95), 22 min., 27 (20) min.
  • Typical Result, As-welded: DC-, 470 (68), 580-620 (84-90), 25, 27-108 (20-80)
  • Classification: Polarity, %Al, %C, %Cr, %Mn, %Mo, %Ni, %P, %S, %Si, %V, Diffusible Hydrogen, mL/100g Weld Metal
  • E70T7-K2-H16 Requirement: DC-, 1.8 max., 0.15 max., 0.15 max., 0.50 - 1.75, 0.35 max., 1.00 - 2.00, 0.030 max., 0.030 max., 0.80 max., 0.05 max., 16.0 max.
  • E70T7-A2-K2-H16 Requirement: DC-, 1.8 max., 0.15 max., 0.15 max., 0.50 - 1.75, 0.35 max., 1.00 - 2.00, 0.030 max., 0.030 max., 0.80 max., 0.05 max., 16 max.
  • Typical Result: DC-, 1.0-1.4, 0.06-0.08, 0.05, 1.27-1.48, 0.05, 1.30-1.55, 0.010, 0.003, 0.20-0.24, 0.010, 8.0
  • Diameter: Polarity, CTWD, mm (in.), Wire Feed Speed, m/min (in/min), Voltage, volts, Approx. Current, amps, Melt-off Rate, kg/hr (lb/hr), Deposition Rate, kg/hr (lb/hr), Efficiency, %
  • 5/64 in (2.0 mm): DC-, 32 (1 1/4), 2.5 (100), 21-23, 170, 2.5 (5.5), 1.8 (3.9), 70
  • 5/64 in (2.0 mm): DC-, 32 (1 1/4), 3.3 (130), 24-26, 205, 3.3 (7.2), 2.4 (5.2), 72
  • 5/64 in (2.0 mm): DC-, 32 (1 1/4), 4.1 (160), 25-27, 235, 4.0 (8.8), 2.9 (6.5), 73
  • 5/64 in (2.0 mm): DC-, 32 (1 1/4), 5.1 (200), 26-28, 270, 5.0 (11.0), 3.8 (8.3), 75
  • 5/64 in (2.0 mm): DC-, 32 (1 1/4), 6.1 (240), 27-29, 295, 6.1 (13.3), 4.5 (10.0), 75
  • 3/32 in (2.4 mm): DC-, 38 (1 1/2), 1.9 (75), 20-22, 200, 2.8 (6.2), 1.9 (4.2), 67
  • 3/32 in (2.4 mm): DC-, 38 (1 1/2), 2.5 (100), 21-23, 245, 3.8 (8.3), 2.7 (5.9), 71
  • 3/32 in (2.4 mm): DC-, 38 (1 1/2), 3.1 (125), 23-25, 285, 4.7 (10.4), 3.4 (7.5), 72
  • 3/32 in (2.4 mm): DC-, 38 (1 1/2), 3.8 (150), 25-27, 330, 5.7 (12.5), 4.1 (9.1), 72
  • 3/32 in (2.4 mm): DC-, 38 (1 1/2), 4.4 (175), 26-28, 365, 6.6 (14.5), 4.9 (10.8), 74
  • 3/32 in (2.4 mm): DC-, 38 (1 1/2), 5.1 (200), 27-29, 390, 7.6 (16.6), 5.6 (12.3), 74
  • 7/64 in (2.8 mm): DC-, 44.5 (1 3/4), 2.5 (100), 22-24, 310, 5.2 (11.4), 3.8 (8.4), 73
  • 7/64 in (2.8 mm): DC-, 44.5 (1 3/4), 3.5 (140), 24-26, 370, 7.2 (15.8), 5.4 (11.8), 74
  • 7/64 in (2.8 mm): DC-, 44.5 (1 3/4), 4.3 (170), 26-28, 430, 8.9 (19.5), 6.6 (14.5), 74
  • 7/64 in (2.8 mm): DC-, 44.5 (1 3/4), 5.1 (200), 28-30, 470, 10.4 (22.8), 7.7 (17.0), 74
  • 7/64 in (2.8 mm): DC-, 44.5 (1 3/4), 6.1 (240), 29-31, 520, 12.4 (27.2), 9.2 (20.4), 75
  • LECO Diameter: 3/32 in (2.4 mm)
  • LECO Package: 50 lb Coil
  • Diameter (in): 3/32
  • Part number: ED017822
  • UPC/EAN: 0015082037165
What's in the box
  • (1) 50 lb Coil
Compatibility & sizing
  • Compatible families: Innershield
  • Available diameters: 3/32
Why pros choose this

Solid MIG (GMAW) wire feeds continuously through the gun, which keeps the arc stable and lets the operator focus on travel and angle. Wire chemistry must match the base metal, and shielding gas must match the wire type, per AWS A5 classifications.

From the manufacturer

Lincoln Innershield NR-311 Ni inch FCAW-S Welding Wire is designed to provide a nominal 1.5% nickel weld deposit with high deposition rates and fast travel. Recommended for flat and horizontal positions in single and multiple pass welding.

Features
  • Designed to provide a nominal 1.5% nickel weld deposit
  • High deposition rates and fast travel speeds
  • Capable of producing weld deposits with impact properties exceeding 27 J (20 ft·lbf) at -29°C (-20°F)
  • Color match on weathering steel applications
  • 3/32 in (2.4 mm) diameter meets FEMA 353 and AWS D1.8 seismic lot waiver requirements
  • FEMA 353 and AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center

Typical Applications

  • Fillet and lap welds
  • Horizontal and square edge butt welds, such as column-to-column structural connections
  • Deep groove welds
  • Structural fabrication
  • Weathering steels

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29E70T7-K2-H16, E80TG-K2-H16
AWS AWS A5.36E70T7-A2-K2-H16, E80TG-A2-K2-H16
ABS ABS - Part 22YSA
BV BV - Chapter 5SA2YM
DNV-GL DNV - 2.9II YMS
DB ISO 17632-AT 42 2 1, 5Ni W N 5
LR LR - Chapter 112YS
Classification PolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E70T7-K2-H16 Requirement DC-400 (58) min.480-620 (70-90)20 min.27 (20) min.
E70T7-A2-K2-H16 Requirement DC-400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded DC-470 (68)580-620 (84-90)2527-108 (20-80)
Classification Polarity%Al%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal
E70T7-K2-H16 Requirement DC-1.8 max.0.15 max.0.15 max.0.50 - 1.750.35 max.1.00 - 2.000.030 max.0.030 max.0.80 max.0.05 max.16.0 max.
E70T7-A2-K2-H16 Requirement DC-1.8 max.0.15 max.0.15 max.0.50 - 1.750.35 max.1.00 - 2.000.030 max.0.030 max.0.80 max.0.05 max.16 max.
Typical Result DC-1.0-1.40.06-0.080.051.27-1.480.051.30-1.550.0100.0030.20-0.240.0108.0
Diameter PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
5/64 in (2.0 mm) DC-32 (1 1/4)2.5 (100)21-231702.5 (5.5)1.8 (3.9)70
5/64 in (2.0 mm) DC-32 (1 1/4)3.3 (130)24-262053.3 (7.2)2.4 (5.2)72
5/64 in (2.0 mm) DC-32 (1 1/4)4.1 (160)25-272354.0 (8.8)2.9 (6.5)73
5/64 in (2.0 mm) DC-32 (1 1/4)5.1 (200)26-282705.0 (11.0)3.8 (8.3)75
5/64 in (2.0 mm) DC-32 (1 1/4)6.1 (240)27-292956.1 (13.3)4.5 (10.0)75
3/32 in (2.4 mm) DC-38 (1 1/2)1.9 (75)20-222002.8 (6.2)1.9 (4.2)67
3/32 in (2.4 mm) DC-38 (1 1/2)2.5 (100)21-232453.8 (8.3)2.7 (5.9)71
3/32 in (2.4 mm) DC-38 (1 1/2)3.1 (125)23-252854.7 (10.4)3.4 (7.5)72
3/32 in (2.4 mm) DC-38 (1 1/2)3.8 (150)25-273305.7 (12.5)4.1 (9.1)72
3/32 in (2.4 mm) DC-38 (1 1/2)4.4 (175)26-283656.6 (14.5)4.9 (10.8)74
3/32 in (2.4 mm) DC-38 (1 1/2)5.1 (200)27-293907.6 (16.6)5.6 (12.3)74
7/64 in (2.8 mm) DC-44.5 (1 3/4)2.5 (100)22-243105.2 (11.4)3.8 (8.4)73
7/64 in (2.8 mm) DC-44.5 (1 3/4)3.5 (140)24-263707.2 (15.8)5.4 (11.8)74
7/64 in (2.8 mm) DC-44.5 (1 3/4)4.3 (170)26-284308.9 (19.5)6.6 (14.5)74
7/64 in (2.8 mm) DC-44.5 (1 3/4)5.1 (200)28-3047010.4 (22.8)7.7 (17.0)74
7/64 in (2.8 mm) DC-44.5 (1 3/4)6.1 (240)29-3152012.4 (27.2)9.2 (20.4)75
LECO Diameter 3/32 in (2.4 mm)
LECO Package 50 lb Coil
Diameter (in) 3/32
Downloads
Includes
  • (1) 50 lb Coil
