Lincoln Electric Lincore 20 ED018569 Flux-Core Wire 1/8" – 600 lb

Q: What process is the Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum designed for?

The Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum is used in Submerged Arc Welding (SAW), a high-deposition welding process where the arc is shielded by a blanket of granular flux rather than shielding gas. SAW is used primarily in the flat and horizontal positions for welding structural plate, pressure vessels, pipelines, ship hulls, and heavy fabrication. It produces deep penetration, high deposition rates, and excellent weld quality with minimal spatter.

Q: What is the AWS classification of the Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum?

SAW wire AWS classification (e.g., EH14 for high-manganese wire, EM12K for medium-manganese wire, EA2 for low-alloy wire) specifies the wire chemistry. The wire classification must be paired with a compatible flux classification that together meet the WPS deposit property requirements. Check the flux manufacturer's compatibility chart before combining wire and flux.

Q: What diameter is the Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum available in?

The Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum is available in 1/8 diameter. SAW wire diameters range from 3/32 in (for narrow-groove and single-pass applications) to 1/4 in or larger (for heavy plate, multi-pass). Larger diameter wire allows higher amperage and deposition rates; smaller diameter wire permits more precise control of heat input for tighter bead geometry or narrower grooves.

Q: What spool or coil size is the Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum available in?

The Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum is available in 1000 lb coil/spool sizes. SAW wire is commonly supplied as coils or on large spools (300–600 lb) for automated welding systems. Smaller coils (25–50 lb) suit semi-automatic and lower-volume applications. Use of the correct spool hub adapter for your SAW head is required for large-coil operation.

Q: How should I store the Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED018569

$6,392.11 ~~$7,122.00~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

LINCORE® 20 Metal-Cored Submerged Wire ideal for build-up before stainless overlay with good crack resistance and high compressive strength (Roll Rebuilding, Build Up)

Overview

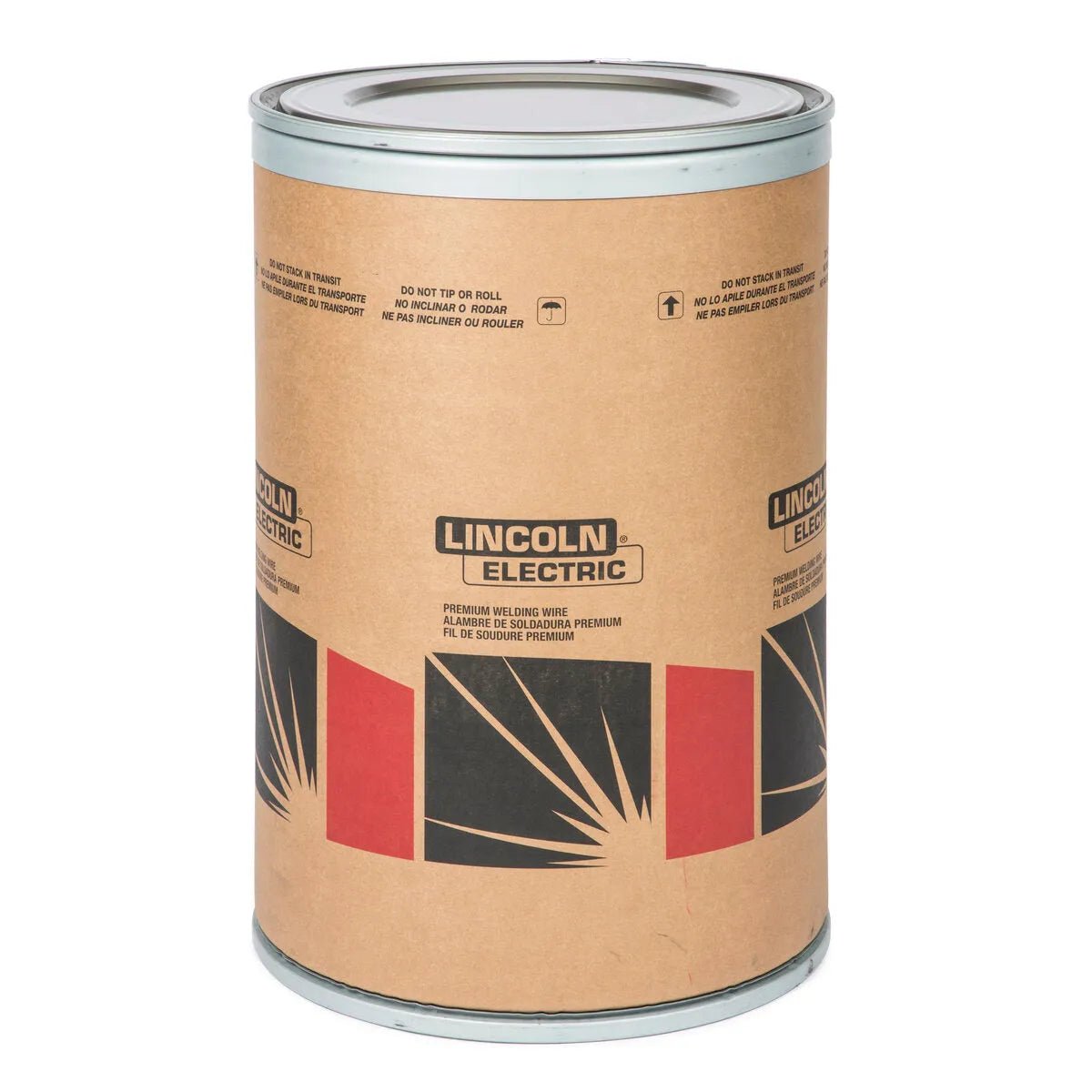

Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum

LINCORE® 20 produces low alloy nickel and chromium weld metal with moderate hardness on caster rolls applications to be used with recommended Lincoln weld® 801, 802 and Lincoln weld® 860 standard flux for semiautomatic operations.

Features

Metal-cored wire with moderate hardness for build-up before stainless overlay
Good crack resistance and high compressive strength

Specifications

Feature	Value
Flux	ClassificationHardness Rockwell C
Lincolnweld® 801®	Typical Result23-28
Flux	Classification%C%Cr%Mn%Mo%Ni%Si
Lincolnweld® 801®	Typical Result0.051.40.60.42.40.4
Diameter	PolarityWire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
3/32 in (2.4 mm)	DC+1.7 (65)24270
3/32 in (2.4 mm)	DC+3.0 (120)28400
3/32 in (2.4 mm)	DC+4.4 (175)31500
1/8 in (3.2 mm)	DC+1.5 (60)26400
1/8 in (3.2 mm)	DC+2.5 (100)28550
1/8 in (3.2 mm)	DC+3.6 (140)30680
5/32 in (4.0 mm)	DC+1.4 (55)27520
5/32 in (4.0 mm)	DC+2.2 (85)30725
5/32 in (4.0 mm)	DC+2.9 (115)32880
LECO Diameter	1/8 in (3.2 mm)
LECO Package	600 lb Speed Feed® Drum
Diameter (in)	1/8

Includes

(1) 600 lb Speed Feed® Drum

Reviews

Q&A

Product Overview

Lincoln ED018569 Lincore 20 Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 600 lb Speed Feed Drum

Features

Metal-cored wire with moderate hardness for build-up before stainless overlay
Good crack resistance and high compressive strength

Specifications

Feature	Value
Flux	ClassificationHardness Rockwell C
Lincolnweld® 801®	Typical Result23-28
Flux	Classification%C%Cr%Mn%Mo%Ni%Si
Lincolnweld® 801®	Typical Result0.051.40.60.42.40.4
Diameter	PolarityWire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
3/32 in (2.4 mm)	DC+1.7 (65)24270
3/32 in (2.4 mm)	DC+3.0 (120)28400
3/32 in (2.4 mm)	DC+4.4 (175)31500
1/8 in (3.2 mm)	DC+1.5 (60)26400
1/8 in (3.2 mm)	DC+2.5 (100)28550
1/8 in (3.2 mm)	DC+3.6 (140)30680
5/32 in (4.0 mm)	DC+1.4 (55)27520
5/32 in (4.0 mm)	DC+2.2 (85)30725
5/32 in (4.0 mm)	DC+2.9 (115)32880
LECO Diameter	1/8 in (3.2 mm)
LECO Package	600 lb Speed Feed® Drum
Diameter (in)	1/8
