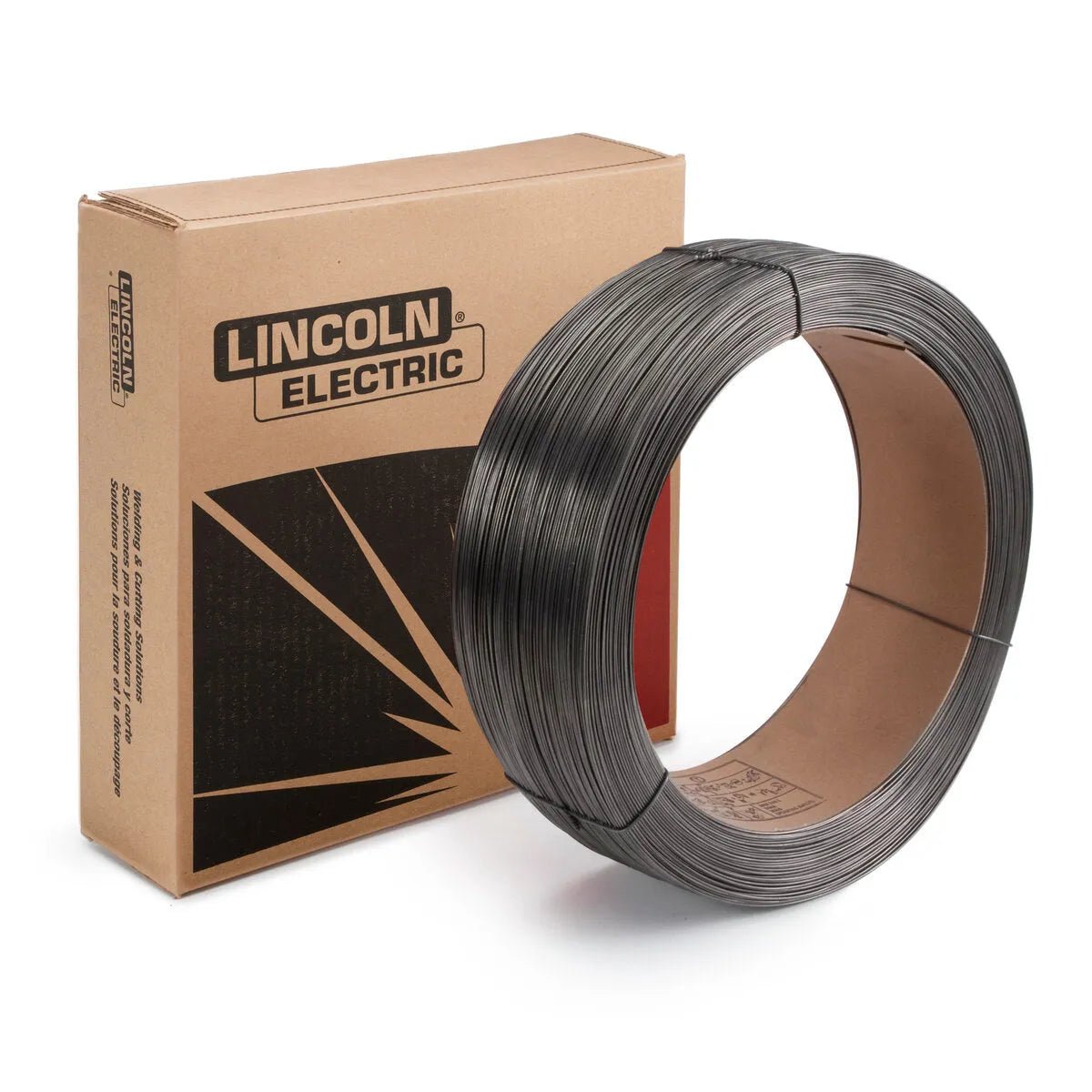

Lincoln ED018578 Lincore 102W Metal-Cored Submerged Arc SAW Welding Wire, 1/8 in, 50 lb Coil

SKU: ED018578
$526.73 $588.00

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 102W Metal-Cored Submerged Arc Wire designed for guide rolls and work rolls, can also be used as the seat on blast furnace bells and hoppers applications (Metal to Metal)
Overview

LINCORE® 102W 1/8 inch Submerged Arc provides a tool steel deposit that retains hardness at high working temperatures produce chromium, molybdenum and tungsten chemical composition to be used with recommended Lincoln weld® 802 and Lincoln weld® 860 standard flux for semiautomatic operations.

Features
  • Metal-cored wire which produces a tool steel deposit that retains hardness at high working temperatures
  • Used for guide rolls, and work rolls
  • Can also be used as the seat on blast furnace bells and hoppers

Typical Applications

  • Steel Industry
  • Work rolls

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
Flux ClassificationHardness Rockwell C
Lincolnweld® 802® Typical Result48-54
Flux Classification%C%Cr%Mn%Mo%Si%V%W
Lincolnweld® 802® Typical Result0.286.51.51.00.40.151.0
Diameter PolarityWire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
3/32 in (2.4 mm) DC+1.7 (65)24240
3/32 in (2.4 mm) DC+3.0 (120)28400
3/32 in (2.4 mm) DC+4.4 (175)31500
1/8 in (3.2 mm) DC+1.5 (60)26390
1/8 in (3.2 mm) DC+2.5 (100)28540
1/8 in (3.2 mm) DC+3.6 (140)30680
5/32 in (4.0 mm) DC+1.4 (55)27500
5/32 in (4.0 mm) DC+2.2 (85)30685
5/32 in (4.0 mm) DC+2.9 (115)32850
LECO Diameter 1/8 in (3.2 mm)
LECO Package 50 lb Coil
Diameter (in) 1/8
Downloads
Includes
  • (1) 50 lb Coil
