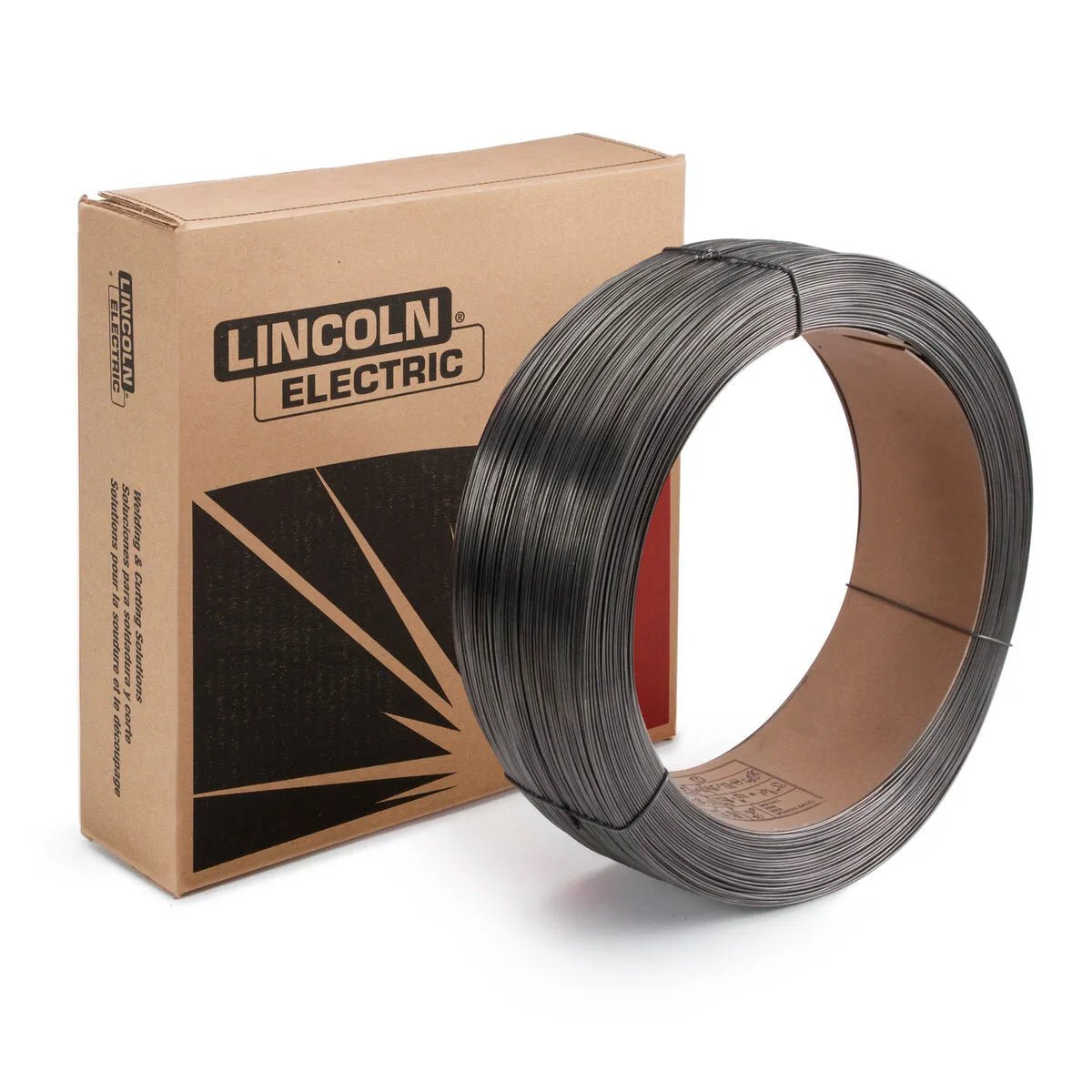

Lincoln ED019887 Lincore 60-O Flux-Cored FCAW-S Welding Wire, 5/64 in, 50 lb Coil

SKU: ED019887
$1,039.51 $1,220.50

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $47/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 60-O Flux-Cored Self-Shielded Wire is designed for bucket lips, crusher hammers, ore chutes, dozer blades and ripper teeth applications (Metal to Earth)
Overview

LINCORE 60-O 5/64 inch welding wire is ideal for carbon, low alloy, manganese, stainless steels and cast iron to be used at temperatures up to 704°C (1300°F) deposits feature higher alloy levels than to resist both abrasion and moderate impact limited to two layers with a Rockwell Hardness range of 55-60 (RHC) during sever abrasion.

Features
  • Deposits feature higher alloy levels than to resist both abrasion and moderate impact
  • Can be used at temperatures up to 704°C (1300°F)
  • To be used on carbon, low alloy, manganese, stainless steels and cast iron
  • Deposit is limited to two layers

Typical Applications

  • Bucket lips
  • Crusher hammers
  • Ore chutes
  • Dozer blades
  • Ripper Teeth

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
Classification Number of layerHardness Rockwell CMass Loss (G65)
Typical Result 1 Layer50-550.67
Typical Result 2 Layers55-580.20
Classification Number of layer%Al%C%Cr%Mn%Si
Typical Result 2 Layers0.3-0.44.0-4.618.5-22.91.0-1.80.5-0.9
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
.045" (1.1 mm) DC+19 (1)5.1 (200)211251.9 (4.1)
.045" (1.1 mm) DC+19 (1)10.2 (400)251853.7 (8.2)
.045" (1.1 mm) DC+19 (1)12.7 (500)272104.7 (10.3)
1/16" (1.6 mm) DC+22 (1)5.1 (200)282403.4 (7.6)
1/16" (1.6 mm) DC+22 (1)7.6 (300)313005.1 (11.2)
1/16" (1.6 mm) DC+22 (1)11.4 (450)333507.5 (16.6)
5/64" (2.0 mm) DC+32 (1)3.2 (125)262503.4 (7.4)
5/64" (2.0 mm) DC+32 (1)5.1 (200)303505.4 (12.0)
5/64" (2.0 mm) DC+32 (1)6.4 (250)324006.8 (15.1)
7/64" (2.8 mm) DC+29 (1)1.9 (75)272503.4 (7.4)
7/64" (2.8 mm) DC+29 (1)3.2 (125)303405.4 (11.9)
7/64" (2.8 mm) DC+29 (1)4.4 (175)324207.5 (16.5)
Note
Deposit thickness limit is two layers unless high travel speed is used to obtain very closely spaced check cracks. Many layers can be used with high travel speed and small bead sizes to ensure close-spaced check cracks.
Lincore® 60-O deposit cross cracks (commonly called cross-checking) on cooling. This is desirable, since cross-cracking of the deposit relieves cooling stresses and prevents spalling.
LECO Diameter 5/64 in (2.0 mm)
LECO Package 50 lb Coil
Diameter (in) 5/64
Downloads
Includes
  • (1) 50 lb Coil
