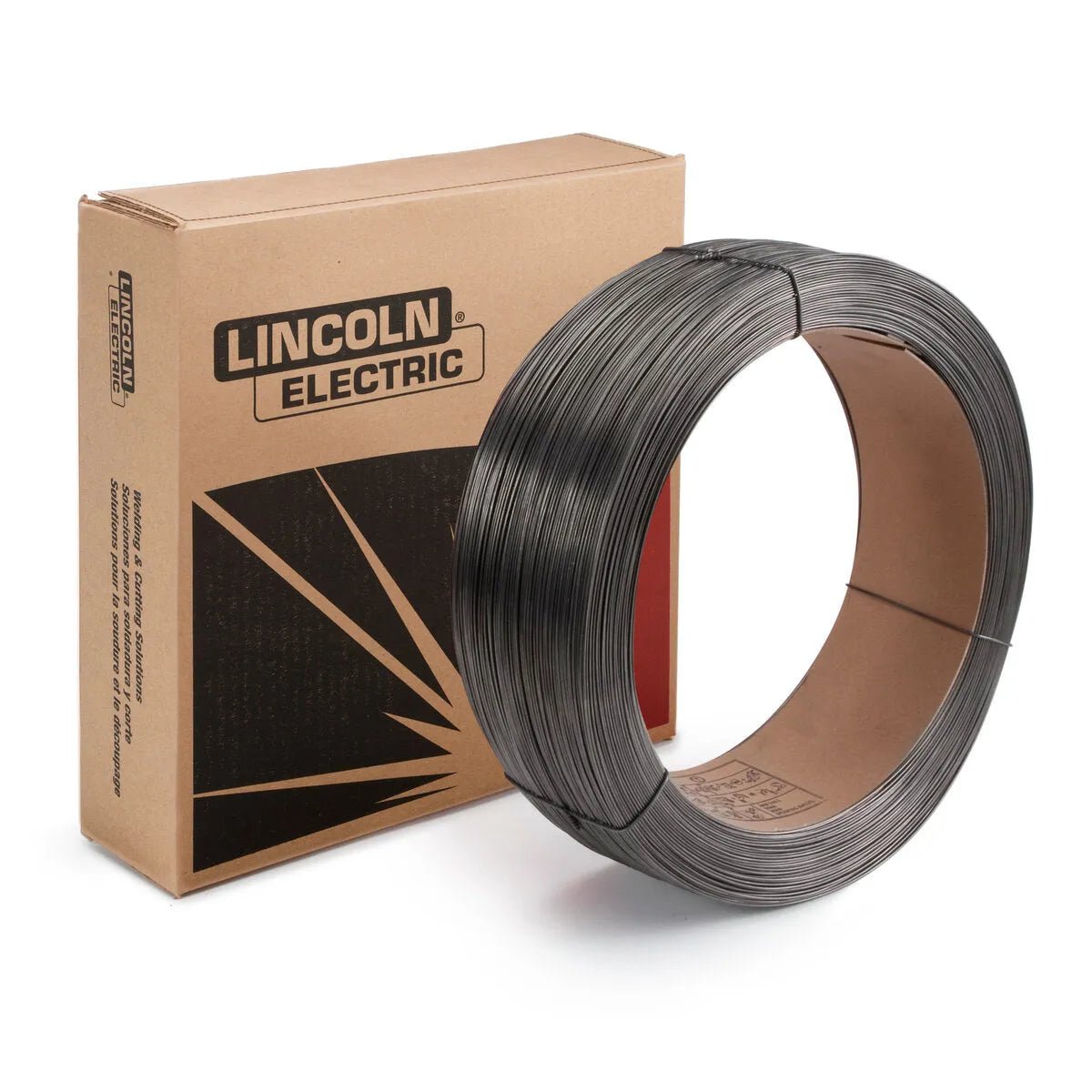

Lincoln ED022060 Lincore 15CrMn Flux-Cored FCAW-S Welding Wire, 5/64 in, 50 lb Coil

SKU: ED022060
$690.75 $767.50

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $31/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 15CRMN Flux-Cored Self-Shielded Wire designed for spreader cones, crusher hammers and austenitic manganese parts applications and can be used as a build-up layer before capping with abrasion resistant alloys (Build Up and Joining)
AWS / Classification: EN/ISO: T Fe9
Overview

LINCORE 15CRMN 5/64 inch welding wire provides an austenitic manganese deposit which exhibits very good crack resistance ideal for open arc mode for joining austenitic manganese steel to carbon steel, low alloy steel, austenitic manganese steel, or stainless steel offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features
  • Provides an austenitic manganese deposit which exhibits very good crack resistance
  • Work-hardens for overlay or joining austenitic manganese steel to itself or to carbon steel
  • Can be used as a build-up layer before capping with abrasion resistant alloys
  • Can be used in open arc mode for joining austenitic manganese steel to carbon steel, low alloy steel, austenitic manganese steel, or stainless steel
  • Unlimited layers with proper preheat and interpass temperatures and procedures
Specifications
FeatureValue
Classification Hardness Rockwell C
Typical Result 18-22
Typical Result, Work-hardened 45-50
Classification %C%Cr%Mn%Si
Typical Result 0.416.015.00.2
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
5/64 in (2.0 mm) DC+32 (1 1/4)3.2 (125)262103.3 (7.3)
5/64 in (2.0 mm) DC+32 (1 1/4)5.1 (200)292805.3 (11.7)
5/64 in (2.0 mm) DC+32 (1 1/4)6.4 (250)303206.8 (15.1)
5/64 in (2.0 mm) DC+32 (1 1/4)8.9 (350)323809.7 (21.3)
7/64 in (2.8 mm) DC+45 (1 3/4)1.9 (75)262502.5 (5.5)
7/64 in (2.8 mm) DC+45 (1 3/4)3.2 (125)283205.1 (11.3)
7/64 in (2.8 mm) DC+45 (1 3/4)3.8 (150)293506.6 (14.6)
7/64 in (2.8 mm) DC+45 (1 3/4)4.4 (175)303807.5 (16.4)
7/64 in (2.8 mm) DC+64 (2 1/2)3.8 (150)303206.7 (14.9)
7/64 in (2.8 mm) DC+64 (2 1/2)5.1 (200)333908.7 (19.2)
7/64 in (2.8 mm) DC+64 (2 1/2)5.7 (225)344109.8 (21.7)
7/64 in (2.8 mm) DC+64 (2 1/2)6.4 (250)3542511.4 (25.1)
Note
As with all austenitic manganese welding products, interpass temperatures should be limited to 260°C (500°F) maximum.
A stringer bead, or at most, a slight weave is recommended to limit heat build-up. Excessive heat build-up causes manganese carbide precipitation that damages the toughness of austenitic manganese.
LECO Diameter 5/64 in (2.0 mm)
LECO Package 50 lb Coil
Diameter (in) 5/64
Downloads
Includes
  • (1) 50 lb Coil
