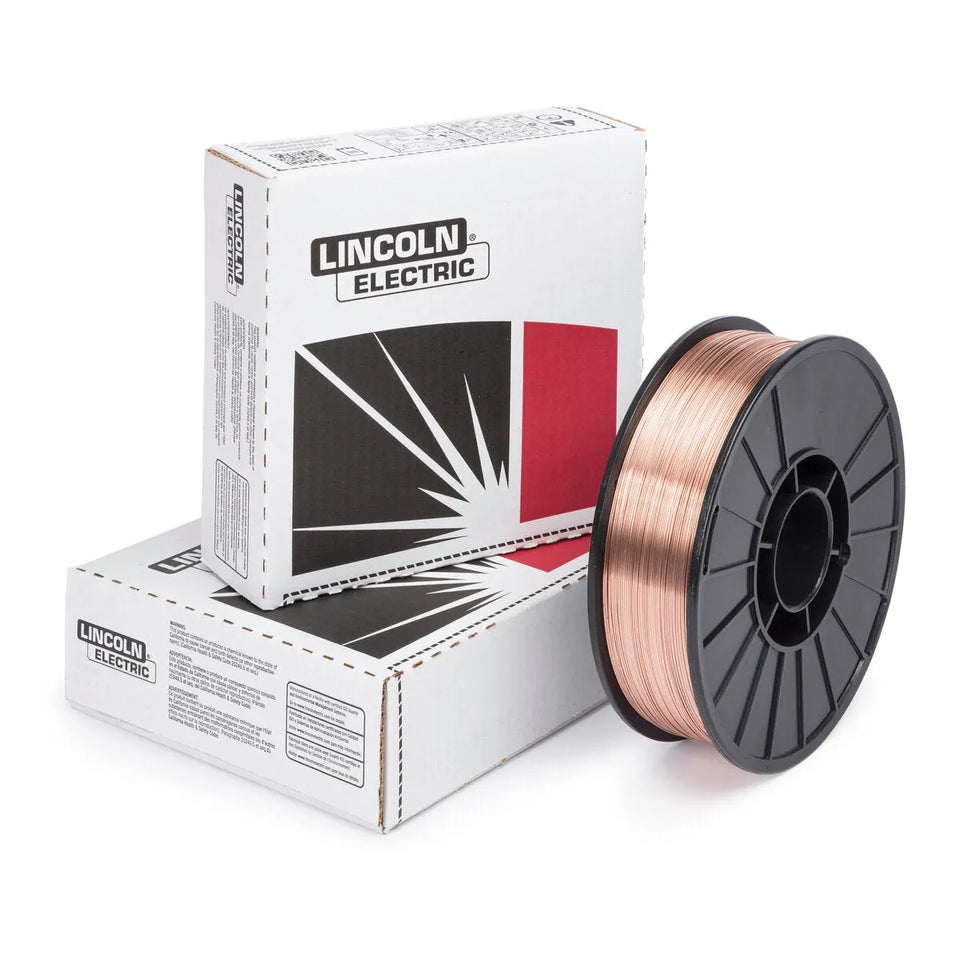

Lincoln ED023334 SuperArc L-56 MIG GMAW Mild Steel Welding Wire, 0.030 in, 12.5 lb Spool

SKU: ED023334
$67.14 $79.50
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

SuperArc® L-56® is Lincoln Electric's premium copper coated MIG Welding wire and an excellent choice for welding on metals with a medium to high presence of millscale.
AWS / Classification: ER70S-6

Overview

Lincoln's premium copper coated MIG wire, SuperArc® L-56® is an excellent choice for welding on metals with a medium to high presence of millscale.

Features
  • High levels of manganese and silicon deoxidizers tolerate medium to heavy mill scale surfaces
  • Excellent toe-wetting provides optimal bead appearance
  • Copper coated for long contact tip life
  • Supports short-circuiting, globular, axial spray and pulsed spray transfer
  • Available to meet Buy America. Choose a Buy America MTS product from the list of
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18 ER70S-6
ABS ABS - Part 2 3YSA, 3YSA H5
CWB CSA W48 B-G 49A 3 C1 S6, B-G 49A 3 C1 S6 (B-G 49A 3 C G6), B-G 49A 3 Z S6
DNV-GL DNV - 2.9 III YMS H5
DB ISO 14341-A G 42 3 C1 3Si1, G 46 4 M21 3Si1
LR LR - Chapter 11 3YS H5
MIL MIL-E-23765/1D MIL-70S-6
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
ER70S-6 Requirement 100% CO2DC+400 (58) min.480 (70) min.22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+420 (61)530-570 (77-82)2543-121 (32-89)
Typical Result, As-welded 75% Ar, 25% CO2DC+430 (62)530-600 (77-86)2362-182 (46-135)42-156 (31-115)
Typical Result, As-welded 90% Ar, 10% CO2DC+490 (71)600 (87)2487-109 (64-80)
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%V%Total Cu
ER70S-6 Requirement 0.06 - 0.150.15 max.1.40 - 1.850.15 max.0.15 max.0.025 max.0.035 max.0.80 - 1.150.03 max.0.50 max.
Typical Result 0.07-0.100.01-0.051.41-1.580.01 max.0.03 max.0.003-0.0130.013 max.0.80-0.980.005 max.0.13-0.29
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
0.025 in (0.6 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)2.5 (100)17350.4 (0.9)
0.025 in (0.6 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)6.4 (250)19800.9 (2.0)
0.030 in (0.8 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)1.9 (75)17350.4 (0.9)
0.030 in (0.8 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)3.8 (150)18700.8 (1.8)
0.030 in (0.8 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)7.6 (300)221301.6 (3.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+9-12 (3/8-1/2)2.5 (100)18800.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+9-12 (3/8-1/2)3.8 (150)191201.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+9-12 (3/8-1/2)6.4 (250)221751.8 (4.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)9.5 (375)231952.7 (6.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.7 (500)292303.6 (8.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)15.2 (600)302754.4 (9.6)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+12-19 (1/2-3/4)3.2 (125)191451.5 (3.4)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+12-19 (1/2-3/4)3.8 (150)201651.8 (4.0)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+12-19 (1/2-3/4)5.1 (200)212002.5 (5.4)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)8.9 (350)272854.2 (9.2)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.1 (475)303355.7 (12.5)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.7 (500)303406.0 (13.2)
0.052 in (1.3 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)7.6 (300)303004.8 (10.7)
0.052 in (1.3 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)8.1 (320)303205.2 (11.5)
0.052 in (1.3 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.3 (485)324307.8 (17.1)
1/16 in (1.6 mm) Spray Transfer90% Ar / 10% CO2DC+12-25 (1/2-1)5.3 (210)273254.8 (10.7)
1/16 in (1.6 mm) Spray Transfer90% Ar / 10% CO2DC+12-25 (1/2-1)6.0 (235)283505.4 (12.0)
1/16 in (1.6 mm) Spray Transfer90% Ar / 10% CO2DC+12-25 (1/2-1)7.4 (290)294306.7 (14.8)
Note
⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in (6.4 mm) to calculate Electrical Stickout
LECO Diameter 0.030 in (0.8 mm)
LECO Package 12.5 lb Spool
Diameter (in) 0.030
Downloads
Includes
  • (1) 12.5 lb Spool
