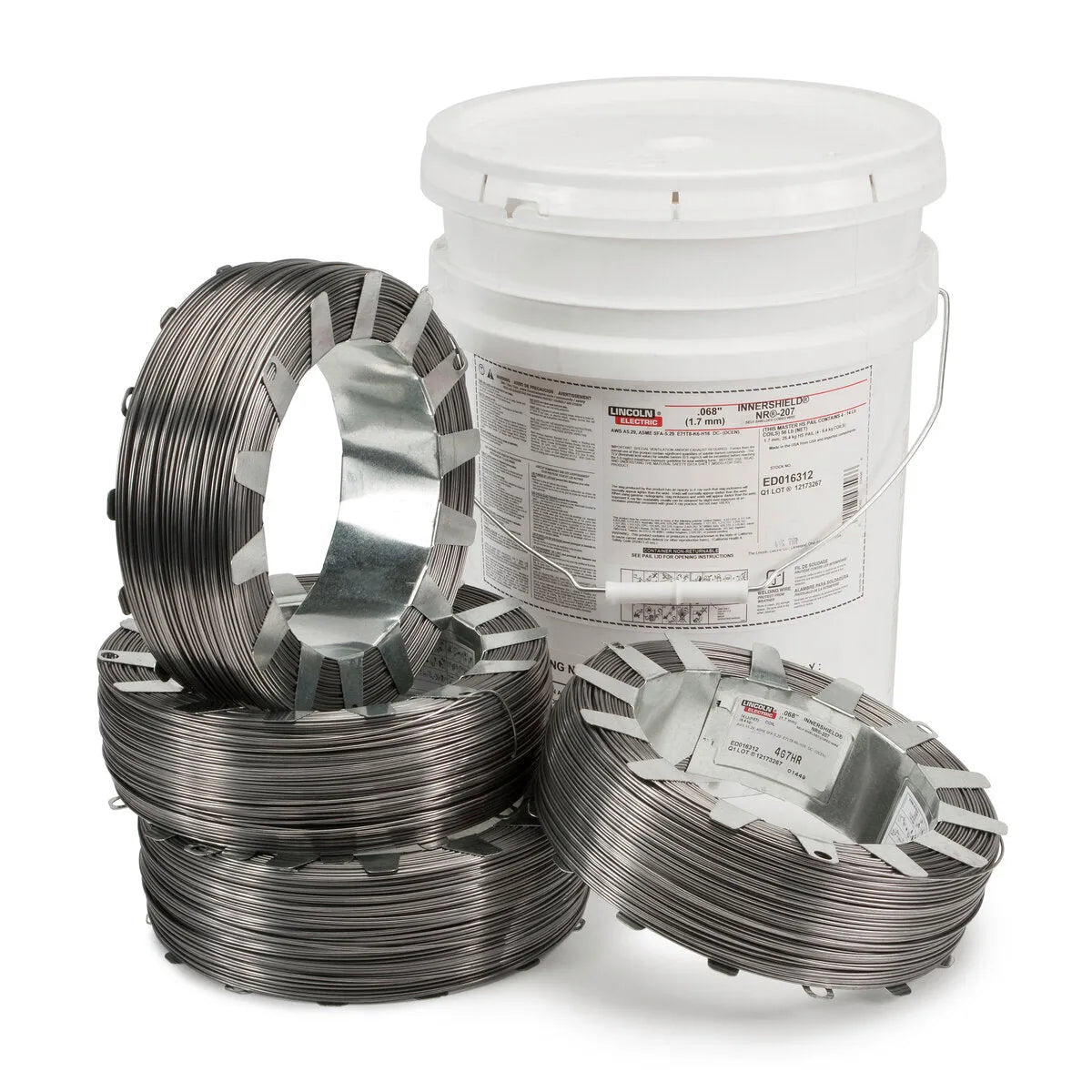

Lincoln Electric Innershield ED023366 Flux-Core Wire 5/64" – 14 lb

SKU: ED023366
$13,402.37 $16,410.24

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
Innershield® NR®-208-H from Lincoln Electric is designed to create high strength weld deposits with yield strength test results exceeding minimum AWS requirements.
AWS / Classification: E91T8-G-H8, E91T8-AG-G-H8
Overview

Designed to create high strength weld deposits with yield strength test results exceeding minimum AWS requirements. Recommended for API Pipe Grade X80.

Features
  • Designed to create high strength weld deposits
  • Recommended for API grade X80
  • High deposition rates

Typical Applications

  • Standard cross-country pipelines
  • Arctic grade pipe up to undermatched X70

Welding Positions

  • All except vertical up
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29E91T8-G-H8
AWS AWS A5.36E91T8-AG-G-H8
Classification PolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)
E91T8-G-H8 Requirement DC-540 (78) min.620-760 (90-110)17 min.
Typical Result, As-welded DC-590 (85)660 (96)26115-123 (85-91)
Classification Polarity%Al%C%Cr%Mn%Mo%Ni%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E91T8-G-H8 Requirement DC-1.8 max.0.30 min. *0.50 min. *0.20 min. *0.50 min. *0.030 max.0.030 max.1.00 max.8.0 max.
Typical Result DC-1.00.050.042.180.020.780.0100.0010.264.7
Diameter PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
5/64 in (2.0 mm) DC-25 (1)1.7 (70)16-171951.8 (4.0)1.4 (3.2)81
5/64 in (2.0 mm) DC-25 (1)2.0 (80)17-182202.1 (4.6)1.7 (3.9)84
5/64 in (2.0 mm) DC-25 (1)2.2 (90)18-192352.5 (5.4)2.0 (4.5)84
5/64 in (2.0 mm) DC-25 (1)2.7 (110)19-202702.9 (6.5)2.4 (5.5)85
5/64 in (2.0 mm) DC-25 (1)3.3 (130)19-202953.5 (7.6)2.9 (6.5)85
Note
* To meet the requirements of a "G" classification, the chemical composition of the weld deposit must meet the minimum requirement for one or more of these elements.
LECO Diameter 5/64 in (2.0 mm)
LECO Package (4) 14 lb Coil
Diameter (in) 5/64
Downloads
Includes
  • (4) 14 lb Coil
