What is the AWS classification of the Lincoln ED023403 Lincolnweld 801 Submerged Arc SAW Flux, 550 lb Drum?

The Lincoln ED023403 Lincolnweld 801 Submerged Arc SAW Flux, 550 lb Drum carries AWS EN 760 – S A FB 1 classification. In SAW, the wire/flux combination determines the weld deposit chemistry and mechanical properties — the wire class and flux class are always specified together. Always verify the flux is approved for use with this wire in your Welding Procedure Specification (WPS).

Lincoln Electric Lincolnweld 801 ED023403 Submerged Arc Wire – 550 lb

Q: What diameter is the Lincoln ED023403 Lincolnweld 801 Submerged Arc SAW Flux, 550 lb Drum available in?

Common SAW wire diameters range from 5/64 in to 7/32 in. Smaller diameter wire (5/64, 3/32 in) suits lower heat-input applications, tight-groove work, and thinner plate. Larger diameter wire (5/32, 3/16, 7/32 in) maximizes deposition rate for heavy plate and multi-pass structural welds. Consult the wire manufacturer's parameter chart for amperage, voltage, and travel speed by diameter.

Q: What spool or coil size is the Lincoln ED023403 Lincolnweld 801 Submerged Arc SAW Flux, 550 lb Drum available in?

SAW wire is supplied in various coil weights from 25 lb coils to 600 lb reels, depending on the wire diameter and supplier. Heavy production SAW systems use large coils (300–600 lb) to minimize wire change-over time. Ensure your SAW wire feeder head is configured for the specific coil diameter and weight of the product ordered.

Q: How should I store the Lincoln ED023403 Lincolnweld 801 Submerged Arc SAW Flux, 550 lb Drum to maintain weld quality?

Store SAW wire in a clean, dry environment. Surface rust on SAW wire can introduce hydrogen into the weld deposit, increasing the risk of porosity and cold cracking in susceptible base materials. Lightly rusted wire can sometimes be cleaned with a dry cloth, but wire with heavy surface oxidation should be discarded. Keep wire coils sealed in their original packaging until ready for use and store at controlled room temperature with low humidity.

SKU: ED023403

$1,712.77 ~~$1,815.00~~

Financing Options

•

As low as …/mo with.

•

Loading Affirm Estimate…

Lincoln Elite Dealer

Free Shipping

Lowest Price

LINCOLNWELD® 801® Submerged Arc flux is ideal for Hardfacing, Provides smooth beads and excellent slag removal. Use with Lincore® 20, 30-S, 35-S, 40-S, 42-S, 4130, 8620, 410, 410NiMo, 420 and 96S (Neutral Flux)

AWS / Classification: EN 760 – S A FB 1; EN 760 – S A FB 2

Overview

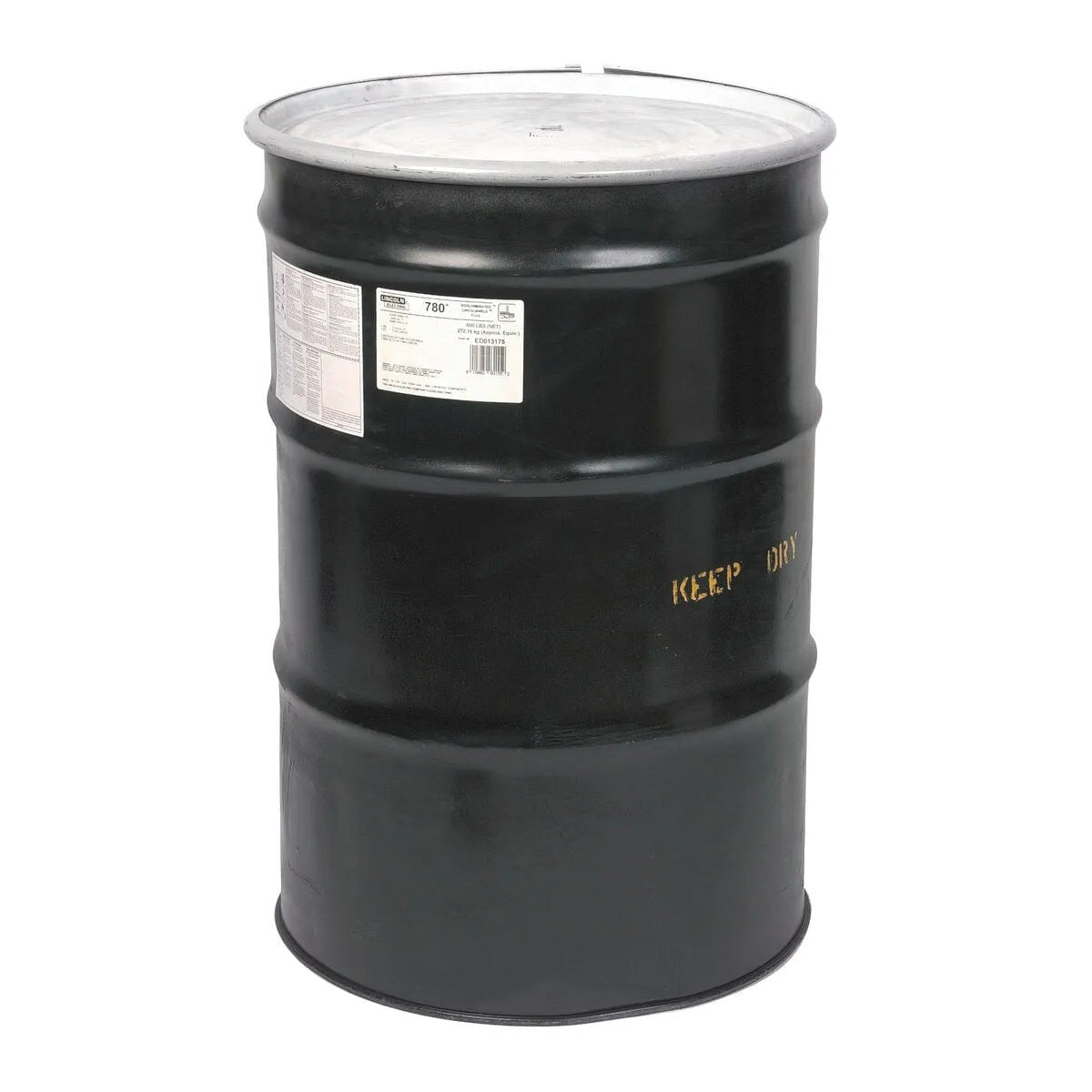

Lincoln ED023403 Lincolnweld 801 Submerged Arc SAW Flux, 550 lb Drum

LINCOLNWELD 801 Submerged Arc flux is designed for Fast-freezing. Deposit carbon, alloy content and hardness depend upon the ratio of flux melted to wire melted. High voltage promotes high carbon and alloy contents, while low voltage promotes lower carbon and alloy content.

Features

• Provides smooth beads and excellent slag removal
• Fast-freezing

Specifications

Feature	Value
LECO Diameter	Flux
LECO Package	550 lb Drum
Diameter (in)	Powder

Includes

(1) 550 lb Drum

Reviews

Q&A

Product Overview

Lincoln ED023403 Lincolnweld 801 Submerged Arc SAW Flux, 550 lb Drum

Features

• Provides smooth beads and excellent slag removal
• Fast-freezing

Specifications

Feature	Value
LECO Diameter	Flux
LECO Package	550 lb Drum
Diameter (in)	Powder

Lincoln Electric Lincolnweld 801 ED023403 Submerged Arc Wire – 550 lb
