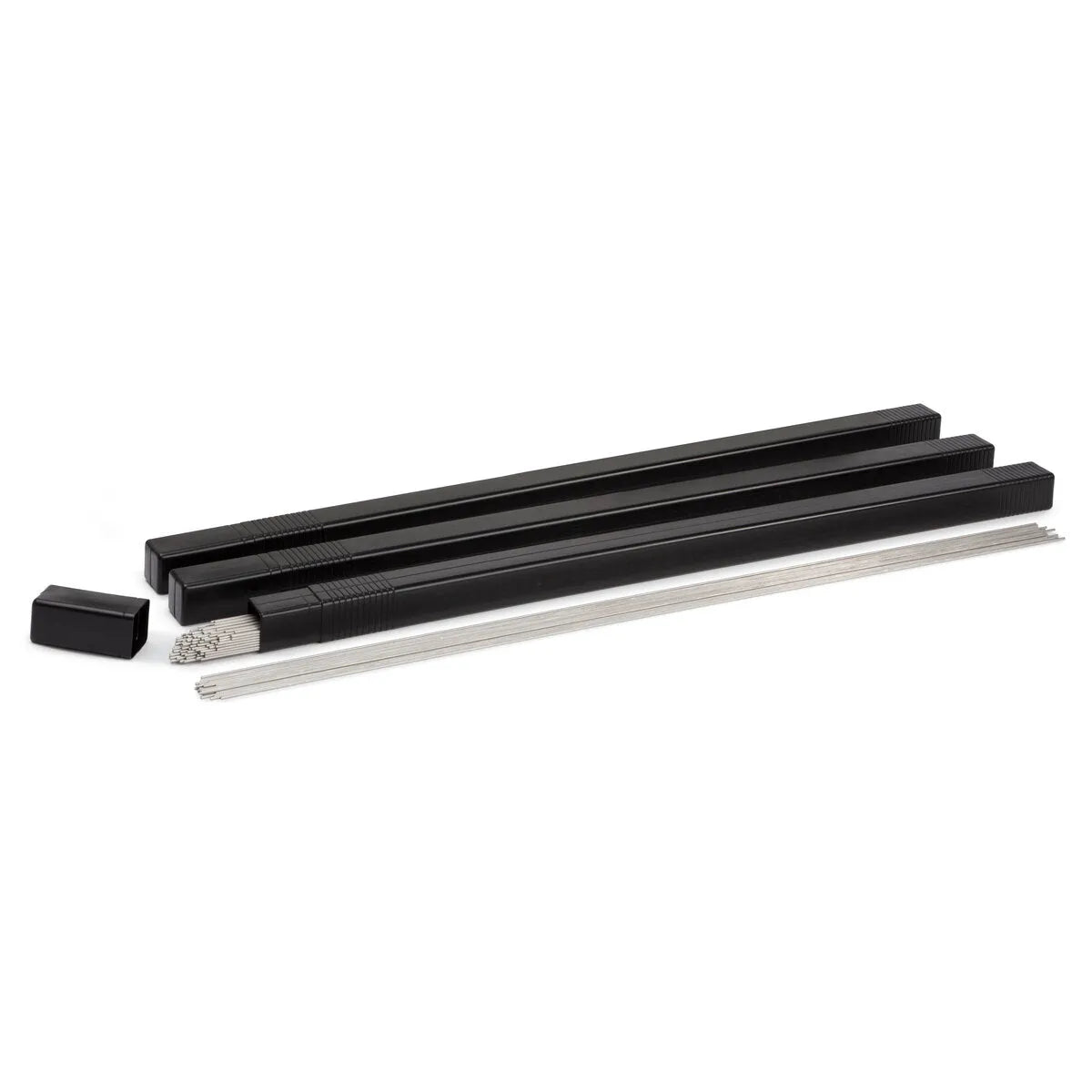

LINCOLN® ER308/308L Tungsten Inert Gas Rod designed for welding 304/304L stainless steel, the dual classification ensure a maximum carbon content of 0.03%.
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.9, ER308, ER308L
- ABS: AWS A5.9, ER308, ER308L
- CWB: CSA W48, ER308, ER308L
- MIL: MIL-E-19933E AMD1, MIL-308, MIL-308L
- Classification: %C, %Cr, %Cu, %Mn, %Mo, %N, %Nb, %Ni, %P, %S, %Si, %Ti, Ferrite Number (Delong ©), Ferrite Number (WRC-1992 ©)
- ER308 Requirement: 0.08 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65
- ER308L Requirement: 0.03 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65
- Typical Result: 0.01-0.02, 19.7-20.3, 0.04-0.33, 1.2-1.9, 0.06-0.15, 0.02-0.06, 0.02 max., 10.1-10.4, 0.02, 0.01 max., 0.34-0.57, 0.00 max., 10-16, 10-14
- LECO Diameter: 1/16 in (1.6 mm)
- LECO Package: (10) 1 lb Tube
- Diameter (in): 1/16
- Length (in): 36
- Part number: ED025410
- UPC/EAN: 0015082254104
- Compatible families: Lincoln Filler Metals
- Electrode type: TIG Rod, Stainless Steel
- Available diameters: 1/16" Rod
TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.
1 Year
Stainless steel welding rods designed to provide optimal bead appearance when TIG welding on a variety of materials
Features
• Balanced chromium and nickel levels provide enough ferrite in the weld for high resistance to hot cracking
• Dual classification ensures the maximum carbon content is 0.03%
• 0.03% carbon content increases resistance to intergranular corrosion
• Ink jet printing identification on entire length of electrode
