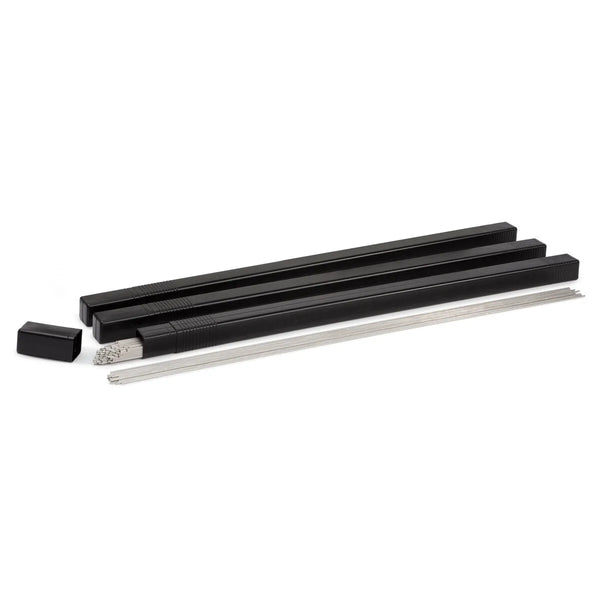

Lincoln ED025413 Lincoln ER308/308L TIG GTAW Welding Rod, 3/32 in, 10 1 lb Tubes

SKU: ED025413
$178.57 $183.20
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
LINCOLN® ER308/308L offers high pressure piping and tubing sheet metal on the corresponding stainless steel base metals with 0.03% carbon content increases resistance to intergranular corrosion.
AWS / Classification: AWS A5.9: ER308, AWS A5.9: ER308L
Overview
Lincoln Electric — Lincoln ED025413 Lincoln ER308/308L TIG GTAW Welding Rod, 3/32 in, 10 1 lb Tubes

LINCOLN® ER308/308L offers high pressure piping and tubing sheet metal on the corresponding stainless steel base metals with 0.03% carbon content increases resistance to intergranular corrosion.

Specifications
  • CONFORMANCES: SPECIFICATION, CLASSIFICATION
  • AWS: AWS A5.9, ER308, ER308L
  • ABS: AWS A5.9, ER308, ER308L
  • CWB: CSA W48, ER308, ER308L
  • MIL: MIL-E-19933E AMD1, MIL-308, MIL-308L
  • Classification: %C, %Cr, %Cu, %Mn, %Mo, %N, %Nb, %Ni, %P, %S, %Si, %Ti, Ferrite Number (Delong ©), Ferrite Number (WRC-1992 ©)
  • ER308 Requirement: 0.08 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65
  • ER308L Requirement: 0.03 max., 19.5 - 22.0, 0.75 max., 1.0 - 2.5, 0.75 max., 9.0 - 11.0, 0.03 max., 0.03 max., 0.30 - 0.65
  • Typical Result: 0.01-0.02, 19.7-20.3, 0.04-0.33, 1.2-1.9, 0.06-0.15, 0.02-0.06, 0.02 max., 10.1-10.4, 0.02, 0.01 max., 0.34-0.57, 0.00 max., 10-16, 10-14
  • LECO Diameter: 3/32 in (2.4 mm)
  • LECO Package: (10) 1 lb Tube
  • Diameter (in): 3/32
  • Length (in): 36
  • Part number: ED025413
  • UPC/EAN: 0015082254135
Compatibility & sizing
  • Compatible families: Lincoln Filler Metals
  • Electrode type: TIG Rod, Stainless Steel
  • Available diameters: 3/32" Rod
Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

Warranty

1 Year

From the manufacturer

LINCOLN® ER308/308L provides a balanced chromium and nickel levels provide enough ferrite in the weld for high resistance to hot cracking, dual classification ensures the maximum carbon content is 0.03% and ink jet printing identification on entire length of electrode.

Features
  • Balanced chromium and nickel levels provide enough ferrite in the weld for high resistance to hot cracking
  • Dual classification ensures the maximum carbon content is 0.03%
  • 0.03% carbon content increases resistance to intergranular corrosion
  • Ink jet printing identification on entire length of electrode
  • Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER308, ER308L
ABS AWS A5.9ER308, ER308L
CWB CSA W48ER308, ER308L
MIL MIL-E-19933E AMD1MIL-308, MIL-308L
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%Si%TiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER308 Requirement 0.08 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.9.0 - 11.00.03 max.0.03 max.0.30 - 0.65
ER308L Requirement 0.03 max.19.5 - 22.00.75 max.1.0 - 2.50.75 max.9.0 - 11.00.03 max.0.03 max.0.30 - 0.65
Typical Result 0.01-0.0219.7-20.30.04-0.331.2-1.90.06-0.150.02-0.060.02 max.10.1-10.40.020.01 max.0.34-0.570.00 max.10-1610-14
LECO Diameter 3/32 in (2.4 mm)
LECO Package (10) 1 lb Tube
Diameter (in) 3/32
Length (in) 36
