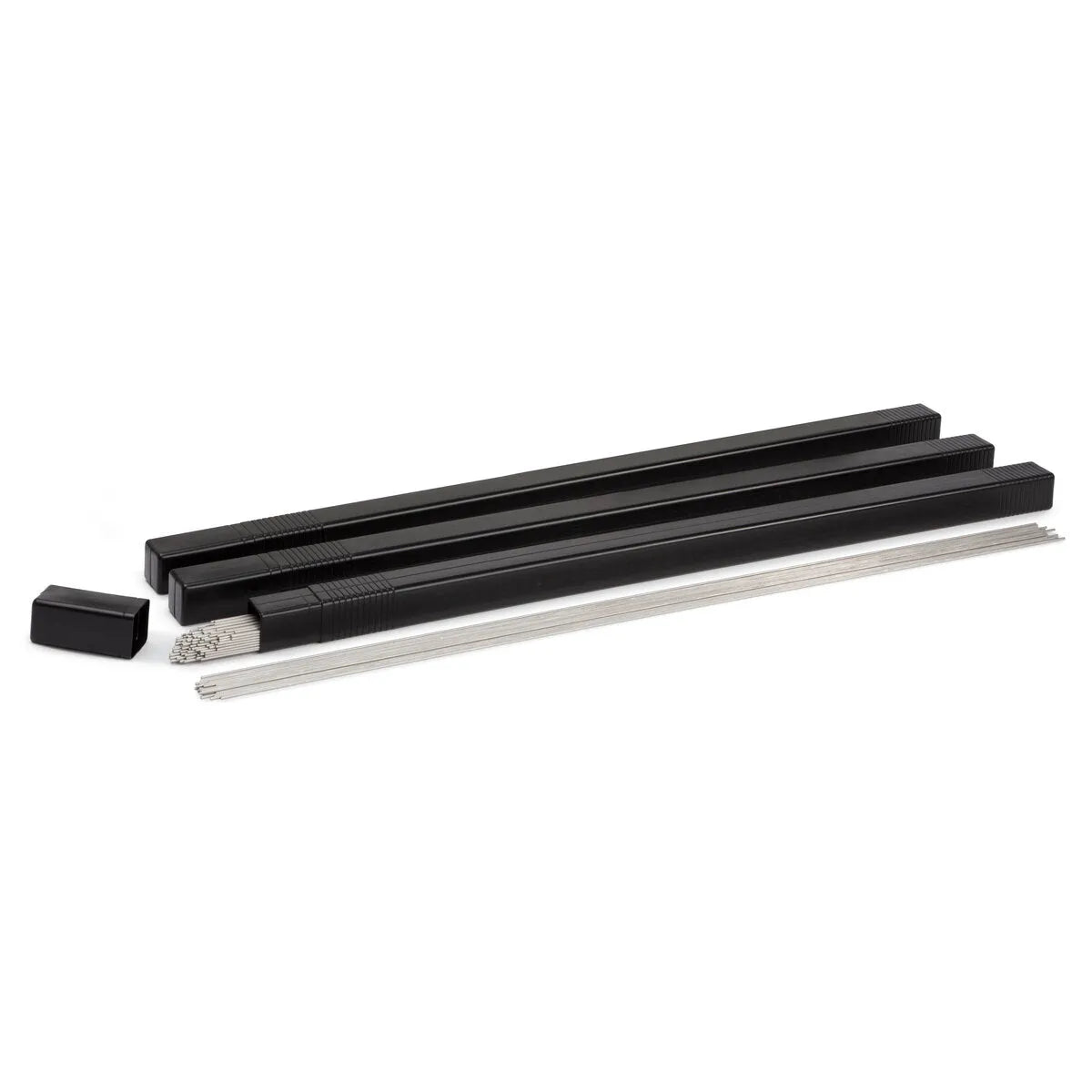

Lincoln Electric — Lincoln ED025434 Lincoln ER316/316L TIG GTAW Welding Rod, 1/8 in, 10 1 lb Tubes
LINCOLN® ER316/316L Tungsten Inert Gas Rod has 2-3% molybdenum for increased corrosion resistance.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.9, ER316, ER316L
- ABS: AWS A5.9, ER316, ER316L
- CWB: CSA W48, ER316, ER316L
- MIL: MIL-E-19933E AMD1, MIL-316L
- Classification: %C, %Cr, %Cu, %Mn, %Mo, %N, %Nb, %Ni, %P, %S, %Si, %Ti, Ferrite Number (Delong ©), Ferrite Number (WRC-1992 ©)
- ER316 Requirement: 0.08 max., 18.0 - 20.0, 0.75 max., 1.0 - 2.5, 2.0 - 3.0, Info. Only, Info. Only, 11.0 - 14.0, 0.03 max., 0.03 max., 0.30 - 0.65, Info. Only, Info. Only
- ER316L Requirement: 0.03 max., 18.0 - 20.0, 0.75 max., 1.0 - 2.5, 2.0 - 3.0, Info. Only, Info. Only, 11.0 - 14.0, 0.03 max., 0.03 max., 0.30 - 0.65, Info. Only, Info. Only
- Typical Result: 0.01-0.02, 18.2-18.8, 0.03-0.22, 1.7-2.0, 2.2-2.6, 0.03-0.04, 0.01-0.06, 11.6-12.4, 0.01-0.02, 0.02 max., 0.33-0.54, 0.00 max., 7-12, 7-11
- LECO Diameter: 1/8 in (3.2 mm)
- LECO Package: (10) 1 lb Tube
- Diameter (in): 1/8
- Length (in): 36
- Part number: ED025434
- UPC/EAN: 0015082254340
Compatibility & sizing
- Compatible families: Lincoln Filler Metals
- Electrode type: TIG Rod, Stainless Steel
- Available diameters: 1/8" Rod
Why pros choose this
TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.
Warranty
1 Year
From the manufacturer
LINCOLN® ER316/316L provides improved pitting corrosion resistance due to the 2-3% molybdenum content, while the 0.03% maximum carbon content increases resistance to intergranular corrosion. Also used in high temperature service applications.
Features
- LINCOLN® ER316/316L provides improved pitting corrosion resistance due to the 2-3% molybdenum content, while the 0.03% maximum carbon content increases resistance to intergranular corrosion. Also used in high temperature service applications.
- The 2-3% molybdenum improves pitting corrosion resistance of the weld deposit
- Molybdenum grade increases corrosion resistance
- Use for high temperature service applications
- 0.03% carbon content increases resistance to intergranular corrosion
- Ink jet printing identification on entire length of electrode
- Q2 Lot® - Certificate showing actual wire composition and calculated ferrite number (FN) available online
