Lincoln Electric Lincore 32 ED025656 Flux-Core Wire 3/32" – 300 lb

SKU: ED025656
$2,559.60 $3,129.00

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $116/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 32-S Metal-Cored Submerged Arc Wire is designed for build-up on 4140 drill stems in the deep hole drilling industry with unlimited deposit thickness For automatic and semiautomatic operation on mild and low alloy steels (Metal-to-Metal, Build-Up)
Overview

LINCORE® 32-S 3/32 inch welding wire offers chemical composition with increased chromium for welding on 4140 stainless steel, unlimited deposit thickness with proper preheat and interpass temperatures and procedure combinations are developed for high quality build up during automatic and semiautomatic operations.

Features
  • Designed for build-up on 4140 drill stems in the deep hole drilling industry
  • For automatic and semiautomatic operation on mild and low alloy steels
  • Good resistance to cross checking
  • Unlimited deposit thickness with proper preheat and interpass temperatures and procedures

Typical Applications

  • Drill stems

Welding Positions

  • Flat/Horizontal
Specifications
FeatureValue
Flux ClassificationBase MetalNumber of layerHardness Rockwell C
Lincolnweld® 802® Typical ResultMild Steel228
Lincolnweld® 802® Typical Result4140233
Flux ClassificationBase Metal%C%Cr%Mn%Mo%Ni%Si
Lincolnweld® 802® Typical ResultMild Steel0.051.82.20.30.070.6
Lincolnweld® 802® Typical Result41400.131.62.10.30.090.5
Diameter PolarityWire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
3/32 in (2.4 mm) DC+1.9 (75)25350
3/32 in (2.4 mm) DC+2.5 (100)25400
3/32 in (2.4 mm) DC+3.3 (130)25460
3/32 in (2.4 mm) DC+4.2 (165)25510
1/8 in (3.2 mm) DC+1.3 (50)28370
1/8 in (3.2 mm) DC+2.5 (100)28540
1/8 in (3.2 mm) DC+3.2 (125)28630
1/8 in (3.2 mm) DC+3.8 (150)28720
LECO Diameter 3/32 in (2.4 mm)

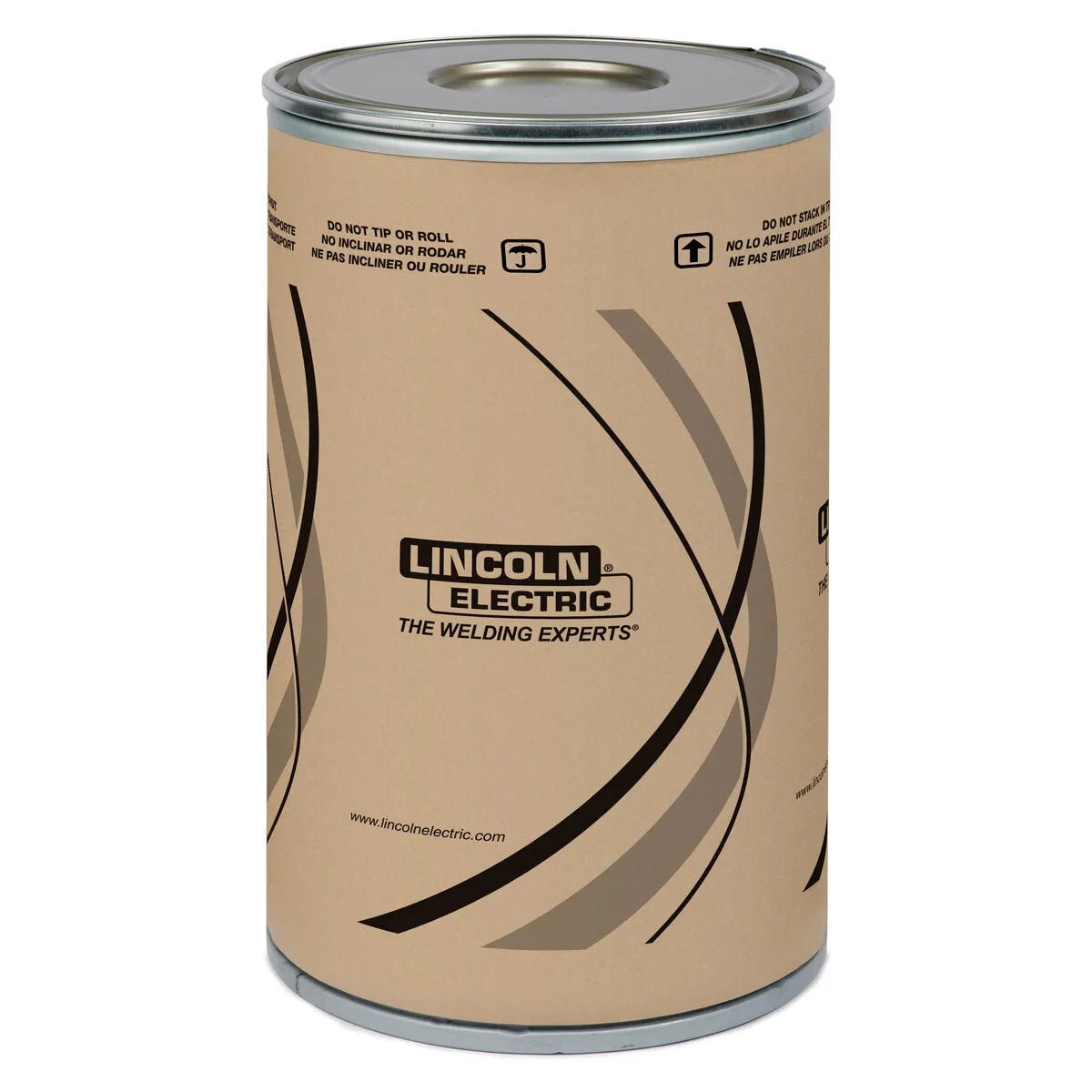

LECO Package 300 lb Speed Feed® Drum
Diameter (in) 3/32
Downloads
Includes
  • (1) 300 lb Speed Feed® Drum
