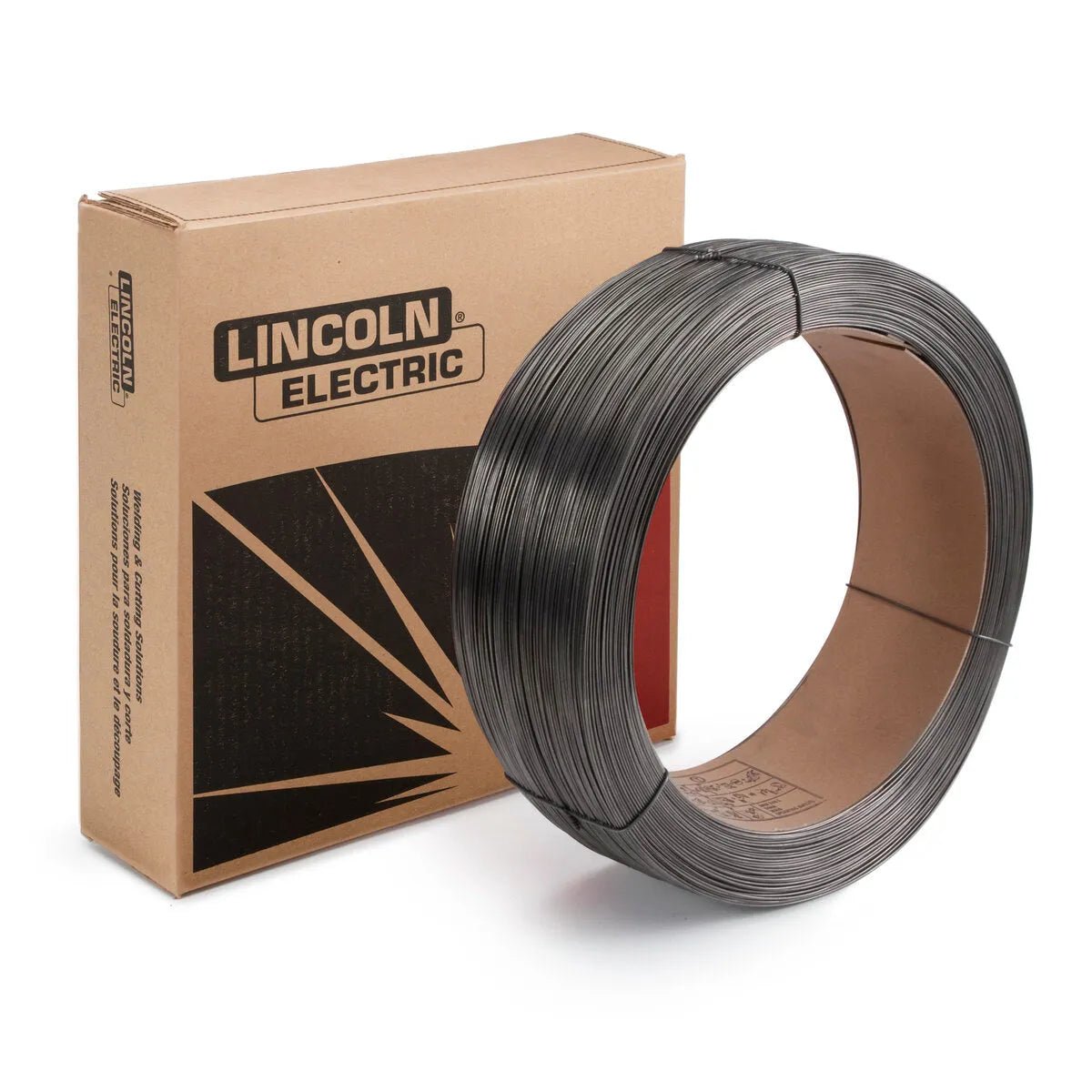

Lincoln Electric Lincore 65 ED026077 Flux-Core Wire 7/64" – 50 lb

SKU: ED026077
$654.60 $801.50

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 65-O Flux-Cored Self-Shielded Wire designed for screw augers ore chutes, wear plates, crusher rolls and ripper teeth applications (Metal to Earth )
Overview

LINCORE® 65-O 7/64 inch welding wire provides higher carbon and chrome levels than Lincore® 60-O to be used on carbon, low alloy, manganese, stainless steels and cast iron with Rockwell Hardness range of 60-64 (HRC) deposit is limited to four layers for severe abrasion.

Features
  • Deposits include higher carbon and chrome levels than Lincore® 60-O
  • Recommended for use on wear plate, coal pulverize rolls, earth engaging tools, and on slurry pipe and elbows
  • To be used on carbon, low alloy, manganese, stainless steels and cast iron
  • Limited to four layers

Specifications
FeatureValue
Classification Number of layerHardness Rockwell CMass Loss (G65)
Typical Result 1 Layer550.27
Typical Result 2 Layers610.20
Typical Result 4 Layers620.14
Classification Number of layer%C%Cr%Mn%Si
Typical Result 1 Layer3.918.81.70.9
Typical Result 2 Layers4.826.52.11.2
Typical Result 4 Layers5.729.42.31.4
Diameter PolarityESO, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
7/64" (2.8 mm) DC+29 (1)2.5 (100)282804.4 (9.6)
7/64" (2.8 mm) DC+29 (1)5.1 (200)314208.9 (19.7)
7/64" (2.8 mm) DC+29 (1)7.6 (300)3350013.5 (29.8)
1/8" (3.2 mm) DC+38 (2)2.5 (100)273756.4 (14.0)
1/8" (3.2 mm) DC+38 (2)4.4 (175)2950011.4 (25.1)
1/8" (3.2 mm) DC+38 (2)6.7 (265)3162516.6 (36.7)
Note
Postweld heat treatment up to 1400°F (760°C) will not affect abrasion resistance very significantly, but will affect hardness to some extent.
LECO Diameter 7/64 in (2.8 mm)
LECO Package 50 lb Coil
Diameter (in) 7/64
Includes
  • (1) 50 lb Coil
