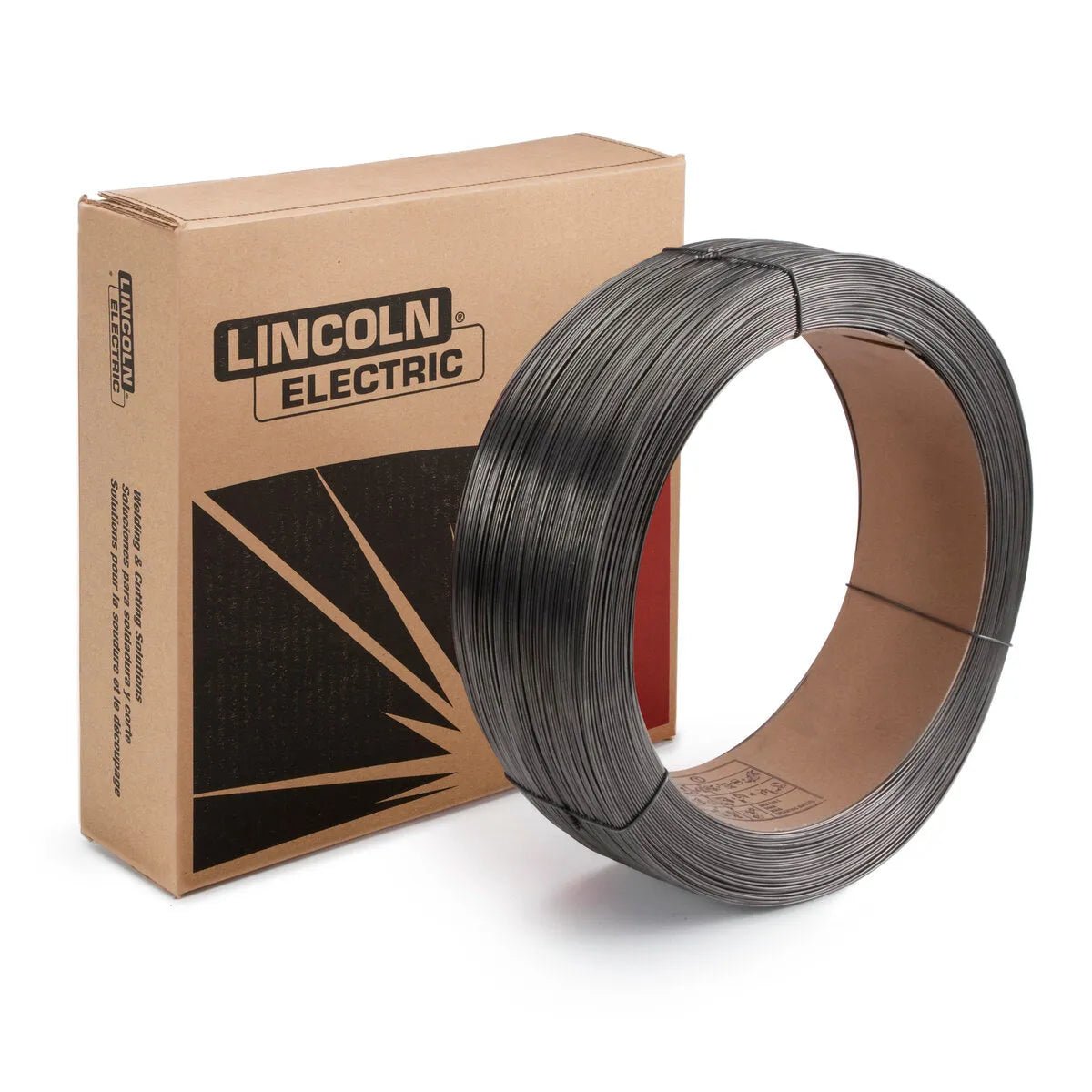

Lincoln Electric Lincore 102HC ED026085 Flux-Core Wire

SKU: ED026085
$555.60 $680.00

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
LINCORE® 102HC Metal-Cored Submerged Arc Wire designed for work rolls applications provides a higher hardness tool steel deposit during sliding wear (Metal to Metal)
Overview
Lincoln ED026085 Lincore 102HC Metal-Cored Submerged Arc SAW Welding Wire

LINCORE® 102HC provides higher carbon compared to LINCORE® 102W for rebuilding, deposits hot weld above 204°C (400°F) machinable offers chromium, molybdenum and tungsten chemical composition to be used with recommended Lincoln weld® 802 and Lincoln weld® 802 for semiautomatic operations.

Features
  • Metal-cored wire with a higher carbon content than Lincore® 102W
  • Will give a higher hardness tool steel deposit
  • Deposit is “hot” [above 204°C (400°F)] machinable, for easy sizing after welding

Specifications
FeatureValue
Flux ClassificationHardness Rockwell C
Lincolnweld® 802® Typical Result54-60
Flux Classification%C%Cr%Mn%Mo%Si%V%W
Lincolnweld® 802® Typical Result0.406.72.11.61.60.201.3
Diameter PolarityWire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
3/32 in (2.4 mm) DC+1.7 (65)24240
3/32 in (2.4 mm) DC+3.0 (120)28400
3/32 in (2.4 mm) DC+4.4 (175)31500
1/8 in (3.2 mm) DC+1.5 (60)26390
1/8 in (3.2 mm) DC+2.5 (100)28540
1/8 in (3.2 mm) DC+3.6 (140)30680
LECO Diameter 1/8 in (3.2 mm)
LECO Package 50 lb (22.7 kg) Coil
Diameter (in) 1/8
