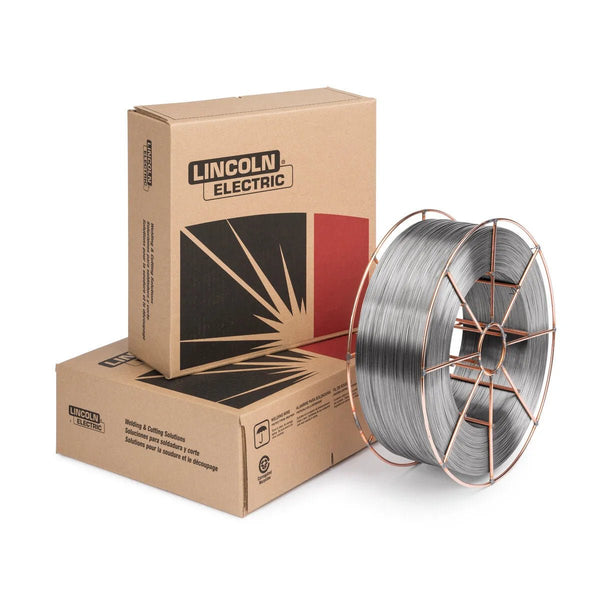

Lincoln ED029206 Outershield 71 Elite Flux-Cored FCAW-G Welding Wire, 1/16 in, 33 lb Spool

SKU: ED029206
$210.95 $234.63
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Outershield® 71 Elite from Lincoln Electric has a smooth arc transfer, low spatter and good bead appearance.
AWS / Classification: E71T-9C-H8, E71T-9M-H8, E71T1-C1A2-CS1-H8, E71T1-M21A2-CS1-H8
Overview

Lincoln Outershield 71 Elite 1/16 inch Welding Wire provides a smooth arc transfer, low spatter and good bead appearance make this a top quality electrode. Operators will enjoy the well directed arc with small ball transfer.

Features
  • Smooth arc transfer and low spatter
  • Designed for welding with either 100% CO2 or 75-82% Argon/balance CO2 shielding gases
  • Good bead appearance
  • Fast freezing slag for out-of-position welding
  • Meets AWS D1.8 seismic lot waiver requirements
  • Notes: AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.

Typical Applications

  • Shipbuilding, barges and offshore platforms
  • Heavy equipment
  • Structural fabrication
  • General fabrication

Welding Positions

  • All

Shielding Gas

  • 100% CO2|Mixed Shielding Gas
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-1C-H8, E71T-1M-H8, E71T-9C-H8, E71T-9M-H8
AWS AWS A5.36E71T1-C1A2-CS1-H8, E71T1-M21A2-CS1-H8
ABS ABS - Part 23YSA H10
CWB CSA W48E491T1-C1A3-CS1-H8 (E491T-9-H8), E491T1-GA3-CS1-H8 (E491T-9M-H8), E491T1-M20A3-CS1-H8 (E491T-9M-H8), E491T1-M21A3-CS1-H8 (E491T-9M-H8)
DNV-GL DNV - 2.9III YMS H10
LR LR - Chapter 113YS H10
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T-9C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+560 (81)610 (89)3038-46 (28-34)
Typical Result, As-welded 75% Ar, 25% CO2DC+590 (86)650 (95)2589-95 (66-70)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E71T-9C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.00500.061.210.010.0110.414.2
Typical Result 75% Ar, 25% CO2DC+0.00600.061.450.010.010.595.7
Diameter Shielding GasPolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)4.5 (175)21-241301.7 (3.8)1.5 (3.3)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)6.4 (250)23-261552.4 (5.4)2.1 (4.7)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)7.6 (300)24-271802.9 (6.4)2.5 (5.6)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)8.9 (350)25-282053.4 (7.6)3.0 (6.6)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)10.2 (400)26-292304.0 (8.7)3.5 (7.6)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)12.8 (500)27-302605.0 (10.9)4.3 (9.5)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)15.3 (600)28-312906.0 (13.1)5.2 (11.4)87
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)3.8 (150)21-241502.1 (4.6)1.8 (3.9)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)5.1 (200)22-251802.8 (6.1)2.4 (5.2)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)6.4 (250)23-262103.4 (7.6)3.0 (6.5)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)7.6 (300)24-272404.8 (10.6)4.1 (7.8)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)10.2 (400)26-283156.2 (13.7)5.4 (10.5)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)12.8 (500)28-313356.9 (15.2)6.0 (13.1)86
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)3.2 (125)21-241902.4 (5.2)2.0 (4.4)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)3.8 (150)22-252052.8 (6.2)2.4 (5.3)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)5.1 (200)22-262403.8 (8.3)3.2 (7.0)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)6.4 (250)23-272904.7 (10.3)4.0 (8.8)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)7.6 (300)24-283255.6 (12.4)4.8 (10.5)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)10.2 (400)27-314007.5 (16.5)6.4 (14.0)85
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 33 lb Spool
