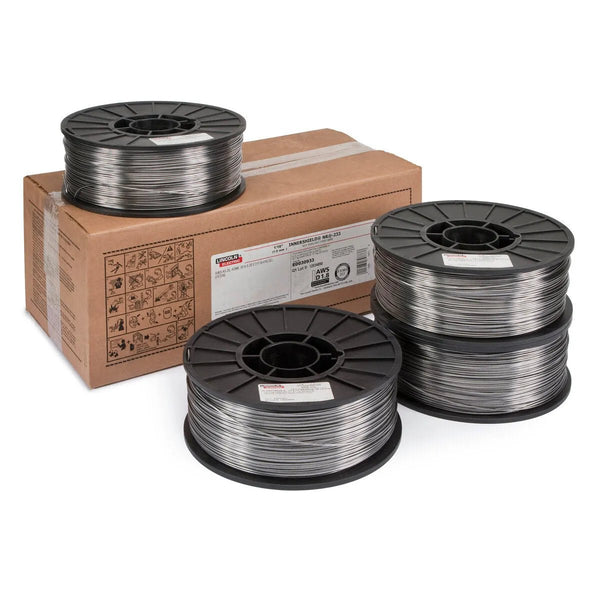

Lincoln ED029419 Outershield 71 Elite Flux-Cored FCAW-G Welding Wire, 0.052 in, 4 15 lb Plastic Spool

SKU: ED029419
$405.89 $430.80
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.


Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)


Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.


Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.



Outershield® 71 Elite from Lincoln Electric has a smooth arc transfer, low spatter and good bead appearance.
AWS / Classification: E71T-9C-H8, E71T-9M-H8, E71T1-C1A2-CS1-H8, E71T1-M21A2-CS1-H8

Overview

Lincoln Outershield 71 Elite 0.052 inch Welding Wire is a smooth arc transfer, low spatter and good bead appearance make this a top quality electrode. Operators will enjoy the well directed arc with small ball transfer.

Features
  • Smooth arc transfer and low spatter
  • Designed for welding with either 100% CO2 or 75-82% Argon/balance CO2 shielding gases
  • Good bead appearance
  • Fast freezing slag for out-of-position welding
  • Meets AWS D1.8 seismic lot waiver requirements
  • Notes: AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.

Typical Applications

  • Shipbuilding, barges and offshore platforms
  • Heavy equipment
  • Structural fabrication
  • General fabrication

Welding Positions

  • All

Shielding Gas

  • 100% CO2|Mixed Shielding Gas

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-1C-H8, E71T-1M-H8, E71T-9C-H8, E71T-9M-H8
AWS AWS A5.36E71T1-C1A2-CS1-H8, E71T1-M21A2-CS1-H8
ABS ABS - Part 23YSA H10
CWB CSA W48E491T1-C1A3-CS1-H8 (E491T-9-H8), E491T1-GA3-CS1-H8 (E491T-9M-H8), E491T1-M20A3-CS1-H8 (E491T-9M-H8), E491T1-M21A3-CS1-H8 (E491T-9M-H8)
DNV-GL DNV - 2.9III YMS H10
LR LR - Chapter 113YS H10
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T-9C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+560 (81)610 (89)3038-46 (28-34)
Typical Result, As-welded 75% Ar, 25% CO2DC+590 (86)650 (95)2589-95 (66-70)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E71T-9C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.00500.061.210.010.0110.414.2
Typical Result 75% Ar, 25% CO2DC+0.00600.061.450.010.010.595.7
Diameter Shielding GasPolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)4.5 (175)21-241301.7 (3.8)1.5 (3.3)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)6.4 (250)23-261552.4 (5.4)2.1 (4.7)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)7.6 (300)24-271802.9 (6.4)2.5 (5.6)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)8.9 (350)25-282053.4 (7.6)3.0 (6.6)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)10.2 (400)26-292304.0 (8.7)3.5 (7.6)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)12.8 (500)27-302605.0 (10.9)4.3 (9.5)87
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+19 (3/4)15.3 (600)28-312906.0 (13.1)5.2 (11.4)87
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)3.8 (150)21-241502.1 (4.6)1.8 (3.9)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)5.1 (200)22-251802.8 (6.1)2.4 (5.2)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)6.4 (250)23-262103.4 (7.6)3.0 (6.5)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)7.6 (300)24-272404.8 (10.6)4.1 (7.8)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)10.2 (400)26-283156.2 (13.7)5.4 (10.5)86
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+19 (3/4)12.8 (500)28-313356.9 (15.2)6.0 (13.1)86
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)3.2 (125)21-241902.4 (5.2)2.0 (4.4)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)3.8 (150)22-252052.8 (6.2)2.4 (5.3)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)5.1 (200)22-262403.8 (8.3)3.2 (7.0)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)6.4 (250)23-272904.7 (10.3)4.0 (8.8)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)7.6 (300)24-283255.6 (12.4)4.8 (10.5)85
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+19 (3/4)10.2 (400)27-314007.5 (16.5)6.4 (14.0)85
LECO Diameter 0.052 in (1.3 mm)
LECO Package (4) 15 lb Plastic Spool
Diameter (in) 0.052
Downloads
Includes
  • (4) 15 lb Plastic Spool
