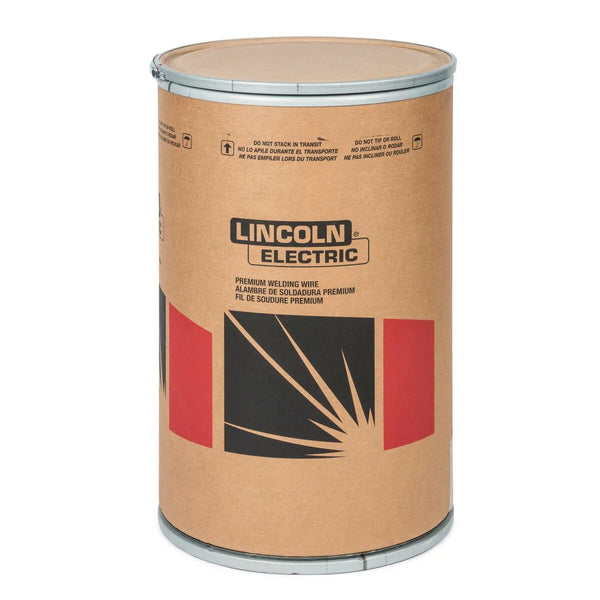

Lincoln ED029773 Blue Max 316LSi MIG GMAW Stainless Steel Welding Wire, 0.045 in, 500 lb Accu-Trak Drum

SKU: ED029773
$9,913.63 $10,135.00

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
BLUE MAX® MIG 316LSI is designed to be similar to 316L but with a higher silicon content for optimum ease and speed in MIG welding
AWS / Classification: AWS ER316Si, ER316LSi
Overview

BLUE MAX® MIG 316LSI 0.045 inch welding wire has a high silicon level for increased puddle fluidity and toe wetting. Controlled ferrite content allows for maximum corrosion resistance.

Features
  • Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
  • Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
  • High silicon level for increased puddle fluidity and toe wetting
  • Molybdenum grade for increased corrosion resistance
  • Controlled ferrite content for maximum corrosion resistance
  • Similar to 316L, with higher silicon content for optimum ease and speed in MIG welding and smooth bead appearance

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.9ER316LSi, ER316Si
ABS AWS A5.9ER316LSi, ER316Si
Classification Shielding GasYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -60°C (-76°F)
Typical Result 98% Ar, 2% O2440 (64)610 (89)3787 (64)
Classification %C%Cr%Cu%Mn%Mo%N%Nb%Ni%P%S%Si%TiFerrite Number (Delong ©)Ferrite Number (WRC-1992 ©)
ER316LSi Requirement 0.03 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.011.0 - 14.00.03 max.0.03 max.0.65 - 1.00
ER316Si Requirement 0.08 max.18.0 - 20.00.75 max.1.0 - 2.52.0 - 3.011.0 - 14.00.03 max.0.03 max.0.65 - 1.00
Typical Result 0.0118.3-18.50.061.7-2.22.3-2.40.05-0.070.02 max.11.3-11.70.020.010.79-0.870.00 max.96
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsDeposition Rate, kg/hr (lb/hr)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.0 (120)19-20550.9 (2.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.6 (180)19-20851.4 (3.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.8 (230)20-211051.8 (3.9)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.6 (300)20-211252.3 (5.0)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)8.9 (350)21-221402.7 (5.9)
0.035 in (0.9 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)10.2 (400)22-231603.1 (6.7)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)2.5 (100)19-201001.1 (2.8)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.2 (125)19-201201.5 (3.5)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)3.8 (150)211351.7 (4.2)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)4.4 (175)211402.0 (4.8)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)5.6 (220)221702.6 (6.1)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)6.4 (250)22-231752.9 (6.9)
0.045 in (1.1 mm) Short Circuit Transfer90% He / 7.5% Ar / 2.5% CO2DC+13 (1/2)7.0 (275)22-231853.2 (7.6)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.2 (400)221803.1 (6.7)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)10.8 (425)231903.3 (7.1)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)11.4 (450)232003.5 (7.5)
0.035 in (0.9 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)12.1 (475)232103.7 (8.0)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.1 (240)231952.8 (6.6)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)6.6 (260)242303.0 (7.2)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)7.6 (300)242403.5 (8.3)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)8.3 (325)252503.8 (9.0)
0.045 in (1.1 mm) Axial Spray Transfer98% Ar / 2% O2DC+13 (1/2)9.1 (360)252604.2 (10.0)
1/16 in (1.6 mm) Axial Spray Transfer98% Ar / 2% O2DC+19 (3/4)4.4 (175)252604.3 (9.2)
1/16 in (1.6 mm) Axial Spray Transfer98% Ar / 2% O2DC+19 (3/4)5.1 (200)263104.9 (10.5)
1/16 in (1.6 mm) Axial Spray Transfer98% Ar / 2% O2DC+19 (3/4)6.4 (250)263306.2 (13.1)
1/16 in (1.6 mm) Axial Spray Transfer98% Ar / 2% O2DC+19 (3/4)7.0 (275)273606.8 (14.4)
1/16 in (1.6 mm) Axial Spray Transfer98% Ar / 2% O2DC+19 (3/4)7.6 (300)283907.4 (15.8)
Note
⁽¹⁾ To estimate ESO, subtract 1/8 in (3.2 mm) from CTWD.
LECO Diameter 0.045 in (1.1 mm)
LECO Package 500 lb Accu-Trak® Drum
Diameter (in) 0.045
Downloads
Includes
  • (1) 500 lb Accu-Trak® Drum
