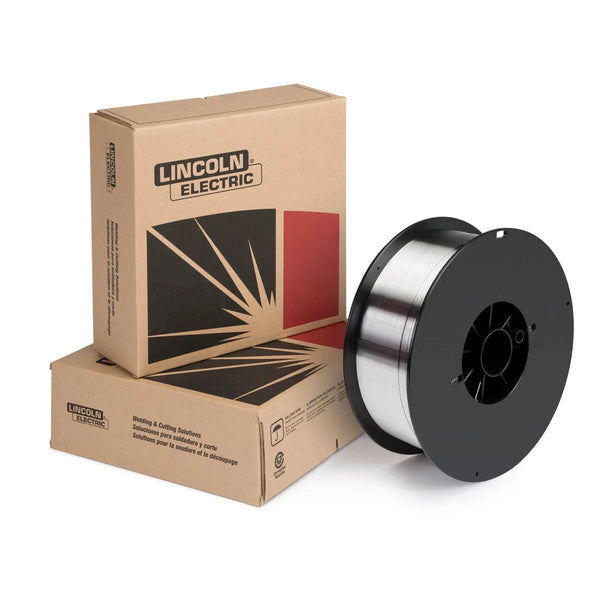

Lincoln Electric ED030283 Aluminum MIG Wire 1/16" – 20 lb

SKU: ED030283
$203.21
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
SuperGlaze® 5356 is very commonly used for higher strength welding of 5XXX and 6XXX base materials
AWS / Classification: AWS A5.10: ER5356
Overview

SuperGlaze 5356 1/16 Aluminum Magnesium alloy is very commonly used for higher strength welding of 5XXX and 6XXX base materials. Its higher columnar strength offers improved feeding.

Features
  • General purpose filler alloy for 5XXX and 6XXX series alloys
  • Most widely used aluminum-magnesium welding alloy
  • High strength filler metal

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.10 ER5356
Classification %Be%Mg%Zn%Cr%Cu%Fe%Mn%Si%Ti
ER5356 Requirement 0.0003 max.4.5 - 5.50.10 max.0.05 - 0.200.10 max.0.40 max.0.05 - 0.200.25 max.0.06 - 0.20
Typical Result 0.0002 max.4.90.010.120.000.110.120.060.10
Diameter Shielding GasGas Flow, L/min (CFH)PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, amps
0.9 mm (.035") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)19.6 (770)21.6185
1.2 mm (3/64") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)12.7 (500)23.0210
1.6 mm (1/16") 100% Ar14-24 (30-50)DC+12.7 (¹/₂) - 15.9 (⁵/₈)9.1 (360)24.8280
2.4 mm (3/32") 100% Ar85 (180)DC+19.0 (³/₄)8.0 (315)28.0500
3.2 mm (1/8") 100% Ar85 (180)DC+19.0 (³/₄)5.1 (200)30.3535
LECO Diameter 1/16 in (1.6 mm)
LECO Package 20 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 20 lb Spool
