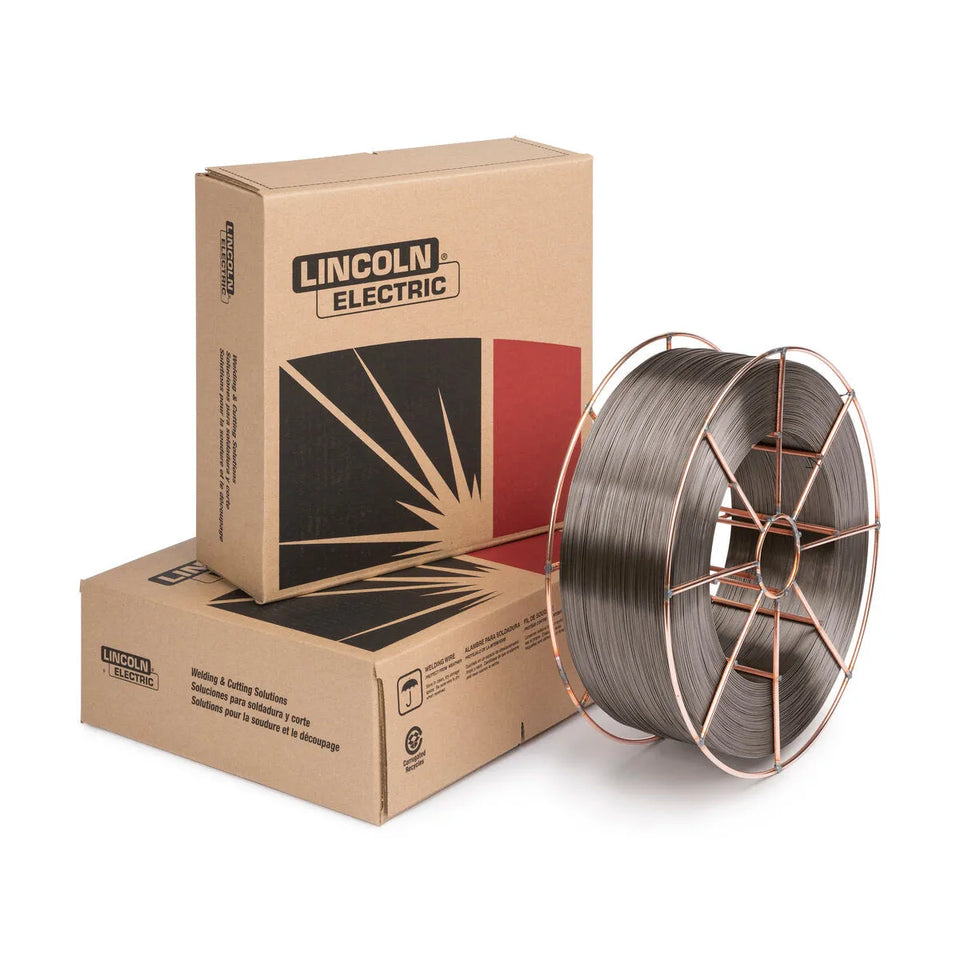

Lincoln ED030393 Metalshield MC-6 Metal-Cored GMAW-C Welding Wire, 0.052 in, 33 lb Spool

SKU: ED030393
$172.11 $190.08
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.


Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)


Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.


Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.



Metalshield® MC-6® from Lincoln Electric is designed for superior arc performance in fast-follow, high travel speed applications requiring minimal amounts of spatter.
AWS / Classification: E70C-6M H4, E70T15-M20A4-CS1-H4, E70C-6M-H4

Overview

Lincoln MetalShield® MC-6 .052 welding wire is a high-performance mild steel, metal-cored wire engineered for superior arc stability in fast-follow, high-travel-speed applications. Designed to minimize spatter and deliver smooth, consistent welds, this wire is ideal for automated, robotic, and high-production fabrication environments.

Features
  • Exceptional performance in fast-follow, high-travel-speed welding applications
  • Excellent wetting action, even at lower voltage settings
  • H4 diffusible hydrogen level for improved weld quality and reduced cracking risk
  • Optimized for use with Rapid-Arc® Waveform Control Technology® for enhanced arc control
  • Deoxidizing arc action minimizes pre-weld cleaning and preparation
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18E70C-6M-H4
AWS AWS A5.36E70T15-M20A4-CS1-H4, E70T15-M21A4-CS1-H4
CWB CSA W48E491T15-GA4-CS1-H4 (E491C-6MJ-H4), E491T15-M12A4-CS1-H4 (E491C-6MJ-H4), E491T15-M21A4-CS1-H4 (E491C-6MJ-H4), E491T15-M22A4-CS1-H4 (E491C-6MJ-H4)
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
E70C-6M-H4 Requirement 75-80% Ar, balance CO2Not Specified400 (58) min.480 (70) min.22 min.
E70T15-M20A4-CS1-H4 Requirement M20-ArCDC+ or DC-400 (58) min.480-660 (70-95)22 min.27 (20) min.
E70T15-M21A4-CS1-H4 Requirement M21-ArCDC+ or DC-400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC+500 (72)560-580 (81-85)2537-65 (27-48)
Typical Result, As-welded 90% Ar, 10% CO2DC+560 (81)630 (91)2857-72 (42-53)
Classification Shielding GasPolarity%B%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%V%Ni+Cr+Mo+VDiffusible Hydrogen, mL/100g Weld Metal
E70C-6M-H4 Requirement 75-80% Ar, balance CO2Not Specified0.12 max.0.20 max.0.50 max.1.75 max.0.30 max.0.50 max.0.03 max.0.03 max.0.90 max.0.08 max.0.50 max.4 max.
E70T15-M20A4-CS1-H4 Requirement M20-ArCDC+ or DC-0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.4 max.
E70T15-M21A4-CS1-H4 Requirement M21-ArCDC+ or DC-0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.4 max.
Typical Result 75% Ar, 25% CO2DC+0.00400.04-0.050.04-0.060.06-0.071.34-1.480.010.02-0.030.006-0.0120.020-0.0220.47-0.560.010.111.2-2
Typical Result 90% Ar, 10% CO2DC+0.00400.051.550.0080.0240.601
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, volts⁽²⁾Approx. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)5.1 (200)21-231702.5 (4.6)2.3 (5.2)92
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)6.4 (250)22-251902.9 (6.4)2.7 (6.1)95
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)7.6 (300)22-262103.5 (7.8)3.2 (7.1)92
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)8.9 (350)22-272454.1 (9.1)3.9 (8.7)95
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)10.2 (400)23-272654.6 (10.2)4.5 (9.9)97
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)12.7 (500)23-283005.7 (12.6)5.6 (12.4)98
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)15.2 (600)25-293357.0 (15.4)6.9 (15.3)99
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)17.8 (700)26-303708.1 (17.8)7.9 (17.5)98
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)5.1 (200)22-242203.2 (7.0)2.9 (6.4)92
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)6.4 (250)22-262604.0 (8.7)3.8 (8.3)95
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)7.6 (300)22-273004.9 (10.7)4.7 (10.3)96
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)8.9 (350)23-273355.6 (12.3)5.5 (12.0)98
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)10.2 (400)24-283606.3 (13.9)6.3 (13.8)99
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)12.7 (500)27-304107.9 (17.4)7.8 (17.3)99
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)15.2 (600)27-314559.5 (21.1)9.4 (20.8)99
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)2.5 (100)21-241752.1 (4.7)2 (4.4)93
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)3.8 (150)22-252353.2 (7.1)2.9 (6.4)90
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)5.1 (200)22-262904.3 (9.5)4.0 (8.9)94
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)6.4 (250)22-283455.4 (11.9)5.2 (11.4)96
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)7.6 (300)23-293606.4 (14.2)6.3 (13.9)98
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)10.2 (400)26-314258.5 (18.7)8.4 (18.5)99
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)12.7 (500)27-3248510.8 (23.8)10.7 (23.5)99
Note
⁽¹⁾ To estimate ESO, subtract 3/16 in (4.8 mm) from CTWD.
⁽²⁾ For greater percentage of CO2 shielding gas, increase voltage by 1-2 volts.
LECO Diameter 0.052 in (1.3 mm)
LECO Package 33 lb Spool
Diameter (in) 0.052
Downloads
Includes
  • (1) 33 lb Spool
