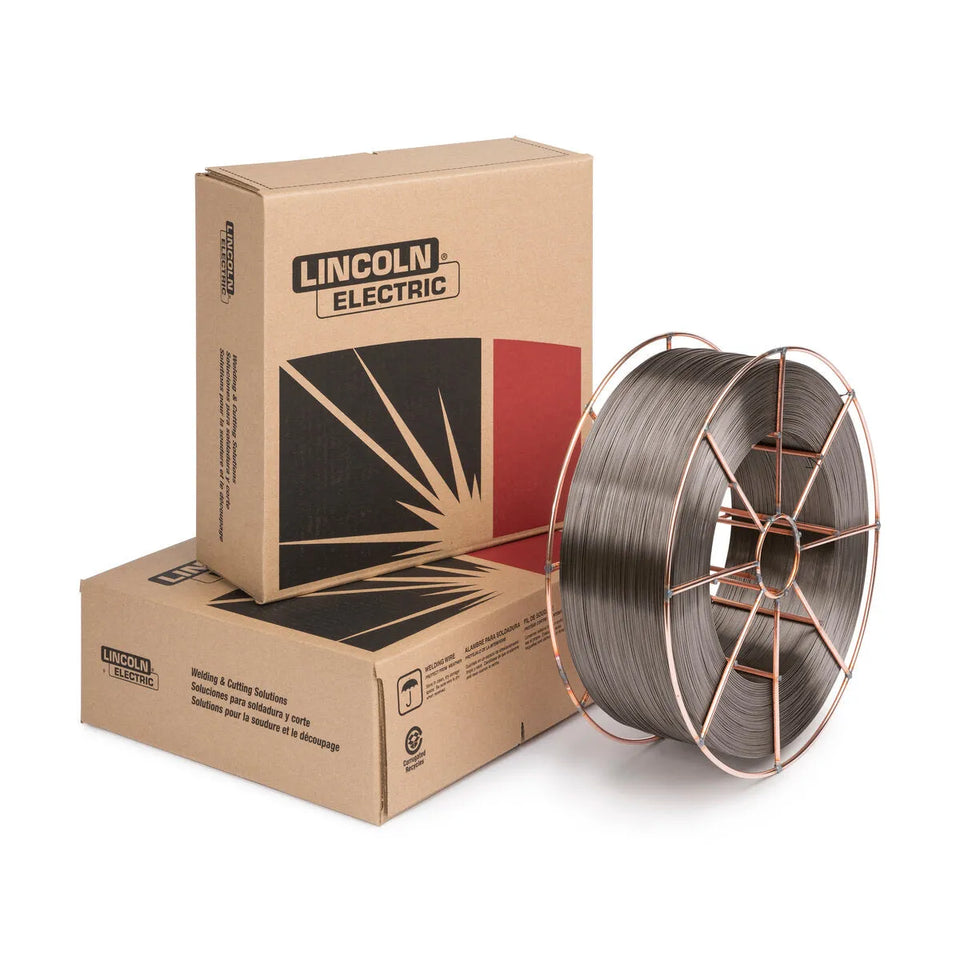

Lincoln ED030394 Metalshield MC-6 Metal-Cored GMAW-C Welding Wire, 1/16 in, 33 lb Spool

SKU: ED030394
$166.33 $180.51
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
Metalshield® MC-6® from Lincoln Electric is designed for superior arc performance in fast-follow, high travel speed applications requiring minimal amounts of spatter.
AWS / Classification: E70C-6M H4, E70T15-M20A4-CS1-H4, E70C-6M-H4
Overview

Lincoln MetalShield MC-6 1/16 inch mild steel, metal-cored wire designed for superior arc performance in fast-follow, high travel speed applications requiring minimal amounts of spatter.

Features
  • Excellent performance in fast follow, high travel speed applications
  • Optimal wetting action, even at low voltages
  • H4 diffusible hydrogen level
  • Use with Rapid-Arc® Waveform Control Technology®
  • Deoxidizing arc action minimizes pre-weld work

Typical Applications

  • Robotics/ Hard automation
  • Automotive
  • Structural fabrication
  • Process piping and pressure vessels
  • General fabrication

Welding Positions

  • All

Shielding Gas

  • Mixed Shielding Gas
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18E70C-6M-H4
AWS AWS A5.36E70T15-M20A4-CS1-H4, E70T15-M21A4-CS1-H4
CWB CSA W48E491T15-GA4-CS1-H4 (E491C-6MJ-H4), E491T15-M12A4-CS1-H4 (E491C-6MJ-H4), E491T15-M21A4-CS1-H4 (E491C-6MJ-H4), E491T15-M22A4-CS1-H4 (E491C-6MJ-H4)
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
E70C-6M-H4 Requirement 75-80% Ar, balance CO2Not Specified400 (58) min.480 (70) min.22 min.
E70T15-M20A4-CS1-H4 Requirement M20-ArCDC+ or DC-400 (58) min.480-660 (70-95)22 min.27 (20) min.
E70T15-M21A4-CS1-H4 Requirement M21-ArCDC+ or DC-400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC+500 (72)560-580 (81-85)2537-65 (27-48)
Typical Result, As-welded 90% Ar, 10% CO2DC+560 (81)630 (91)2857-72 (42-53)
Classification Shielding GasPolarity%B%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%V%Ni+Cr+Mo+VDiffusible Hydrogen, mL/100g Weld Metal
E70C-6M-H4 Requirement 75-80% Ar, balance CO2Not Specified0.12 max.0.20 max.0.50 max.1.75 max.0.30 max.0.50 max.0.03 max.0.03 max.0.90 max.0.08 max.0.50 max.4 max.
E70T15-M20A4-CS1-H4 Requirement M20-ArCDC+ or DC-0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.4 max.
E70T15-M21A4-CS1-H4 Requirement M21-ArCDC+ or DC-0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.4 max.
Typical Result 75% Ar, 25% CO2DC+0.00400.04-0.050.04-0.060.06-0.071.34-1.480.010.02-0.030.006-0.0120.020-0.0220.47-0.560.010.111.2-2
Typical Result 90% Ar, 10% CO2DC+0.00400.051.550.0080.0240.601
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, volts⁽²⁾Approx. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)5.1 (200)21-231702.5 (4.6)2.3 (5.2)92
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)6.4 (250)22-251902.9 (6.4)2.7 (6.1)95
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)7.6 (300)22-262103.5 (7.8)3.2 (7.1)92
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)8.9 (350)22-272454.1 (9.1)3.9 (8.7)95
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)10.2 (400)23-272654.6 (10.2)4.5 (9.9)97
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)12.7 (500)23-283005.7 (12.6)5.6 (12.4)98
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)15.2 (600)25-293357.0 (15.4)6.9 (15.3)99
0.045 in (1.1 mm) 90% Ar / 10% CO2DC+19-25 (3/4-1)17.8 (700)26-303708.1 (17.8)7.9 (17.5)98
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)5.1 (200)22-242203.2 (7.0)2.9 (6.4)92
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)6.4 (250)22-262604.0 (8.7)3.8 (8.3)95
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)7.6 (300)22-273004.9 (10.7)4.7 (10.3)96
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)8.9 (350)23-273355.6 (12.3)5.5 (12.0)98
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)10.2 (400)24-283606.3 (13.9)6.3 (13.8)99
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)12.7 (500)27-304107.9 (17.4)7.8 (17.3)99
1.3 mm (0.052 in) 90% Ar / 10% CO2DC+19-25 (3/4-1)15.2 (600)27-314559.5 (21.1)9.4 (20.8)99
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)2.5 (100)21-241752.1 (4.7)2 (4.4)93
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)3.8 (150)22-252353.2 (7.1)2.9 (6.4)90
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)5.1 (200)22-262904.3 (9.5)4.0 (8.9)94
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)6.4 (250)22-283455.4 (11.9)5.2 (11.4)96
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)7.6 (300)23-293606.4 (14.2)6.3 (13.9)98
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)10.2 (400)26-314258.5 (18.7)8.4 (18.5)99
1/16 in (1.6 mm) 90% Ar / 10% CO2DC+25-32 (1-1 1/4)12.7 (500)27-3248510.8 (23.8)10.7 (23.5)99
Note
⁽¹⁾ To estimate ESO, subtract 3/16 in (4.8 mm) from CTWD.
⁽²⁾ For greater percentage of CO2 shielding gas, increase voltage by 1-2 volts.
LECO Diameter 1/16 in (1.6 mm)
LECO Package 33 lb Spool
Diameter (in) 1/16
Downloads
Includes
  • (1) 33 lb Spool
