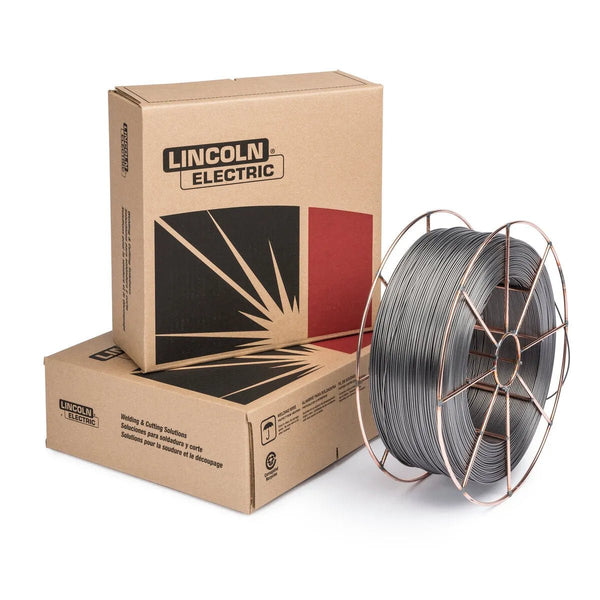

Lincoln Electric Innershield NR-211 Flux-Core Wire .068" – 25 lb

SKU: ED030641
$195.01 $220.75
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Innershield® NR-211®-MP from Lincoln Electric is a versatile wire suitable for all-position welding of light gauge or thin plate.
AWS / Classification: E71T-11, E71T11-AZ-CS3
Overview

A versatile wire suitable for all-position welding of light gauge or thin plate. Recommended for maximum plate thicknesses in the range of 7.9 mm (5/16 in) to 12.7 mm (1/2 in).

Features
  • Versatile welding capability on a variety of base materials
  • High operator appeal and good bead appearance
  • Easy slag removal
  • Fast freezing characteristics accommodate poor fit-up
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-11
AWS AWS A5.36E71T11-AZ-CS3
ABS AWS A5.20E71T-11
CWB CSA W48E491T-11-AZ-CS3-H16 (E491T-11-H16)
DB ISO 17632-AT 42 Z Z N 1 H10
Classification PolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %
E71T11-AZ-CS3 Requirement DC-400 (58) min.480-660 (70-95)22 min.
Typical Result, As-welded DC-420 (61)570-640 (82-92)22
Classification Polarity%Al%C%Mn%P%S%Si
E71T11-AZ-CS3 Requirement DC-0.30 max.1.75 max.0.030 max.0.030 max.0.60 max.
Typical Result DC-1.2-1.60.15-0.280.53-0.790.0120.0040.13-0.28
Diameter PolarityCTWD, mm (in.)Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.030 in (0.8 mm) DC-13 (1/2)1.3 (50)13-14300.2 (0.5)0.2 (0.4)81
0.030 in (0.8 mm) DC-13 (1/2)2.5 (100)13-14600.5 (1.1)0.4 (0.8)75
0.030 in (0.8 mm) DC-13 (1/2)3.8 (150)14-15800.7 (1.6)0.6 (1.2)78
0.030 in (0.8 mm) DC-13 (1/2)5.1 (200)14-151001.0 (2.1)0.8 (1.7)81
0.030 in (0.8 mm) DC-13 (1/2)6.4 (250)15-161301.2 (2.6)1.0 (2.1)80
0.030 in (0.8 mm) DC-13 (1/2)7.6 (300)18-191401.4 (3.2)1.2 (2.6)81
0.035 in (0.9 mm) DC-13-16 (1/2-5/8)1.3 (50)14-15300.4 (0.8)0.3 (0.7)81
0.035 in (0.9 mm) DC-13-16 (1/2-5/8)1.8 (70)15-16600.5 (1.2)0.5 (1.0)83
0.035 in (0.9 mm) DC-13-16 (1/2-5/8)2.8 (110)16-171150.7 (1.6)0.6 (1.3)78
0.035 in (0.9 mm) DC-13-16 (1/2-5/8)3.8 (150)17-181301.0 (2.2)0.8 (1.7)78
0.035 in (0.9 mm) DC-13-16 (1/2-5/8)5.1 (200)18-191551.4 (3.0)1.1 (2.5)84
0.035 in (0.9 mm) DC-13-16 (1/2-5/8)7.0 (275)20-211552.0 (4.4)1.5 (3.4)78
0.045 in (1.1 mm) DC-16 (5/8)1.8 (70)15-161200.7 (1.6)0.5 (1.1)69
0.045 in (1.1 mm) DC-16 (5/8)2.3 (90)16-171401.0 (2.2)0.8 (1.7)77
0.045 in (1.1 mm) DC-16 (5/8)2.8 (110)17-181601.2 (2.7)1.0 (2.3)85
0.045 in (1.1 mm) DC-16 (5/8)3.3 (130)18-191701.5 (3.2)1.2 (2.7)84
0.068 in (1.7 mm) DC-19-32 (3/4-1 1/4)1.0 (40)15-161251.0 (2.1)0.8 (1.7)81
0.068 in (1.7 mm) DC-19-32 (3/4-1 1/4)1.9 (75)18-191901.8 (4.0)1.5 (3.4)85
0.068 in (1.7 mm) DC-19-32 (3/4-1 1/4)3.3 (130)20-212703.2 (7.0)2.8 (6.1)88
0.068 in (1.7 mm) DC-19-32 (3/4-1 1/4)4.4 (175)23-243004.3 (9.4)3.8 (8.4)89
5/64 in (2.0 mm) DC-19-32 (3/4-1 1/4)1.3 (50)16-171801.6 (3.5)1.3 (2.9)83
5/64 in (2.0 mm) DC-19-32 (3/4-1 1/4)1.9 (75)18-192352.4 (5.3)2.0 (4.5)85
5/64 in (2.0 mm) DC-19-32 (3/4-1 1/4)3.0 (120)20-212903.8 (8.4)3.4 (7.4)88
5/64 in (2.0 mm) DC-19-32 (3/4-1 1/4)4.1 (160)22-233255.1 (11.2)4.5 (10.0)89
3/32 in (2.4 mm) DC-19-32 (3/4-1 1/4)1.3 (50)16-172452.3 (5.0)1.9 (4.2)84
3/32 in (2.4 mm) DC-19-32 (3/4-1 1/4)1.9 (75)19-203053.4 (7.5)2.9 (6.4)85
3/32 in (2.4 mm) DC-19-32 (3/4-1 1/4)2.5 (100)20-213654.5 (10.0)3.9 (8.7)87
3/32 in (2.4 mm) DC-19-32 (3/4-1 1/4)3.3 (130)22-234005.9 (12.9)5.1 (11.3)88
LECO Diameter 0.068 in (1.7 mm)
LECO Package 25 lb Spool
Diameter (in) 0.068
Downloads
Includes
  • (1) 25 lb Spool
