Lincoln Electric  |  SKU: ED030650

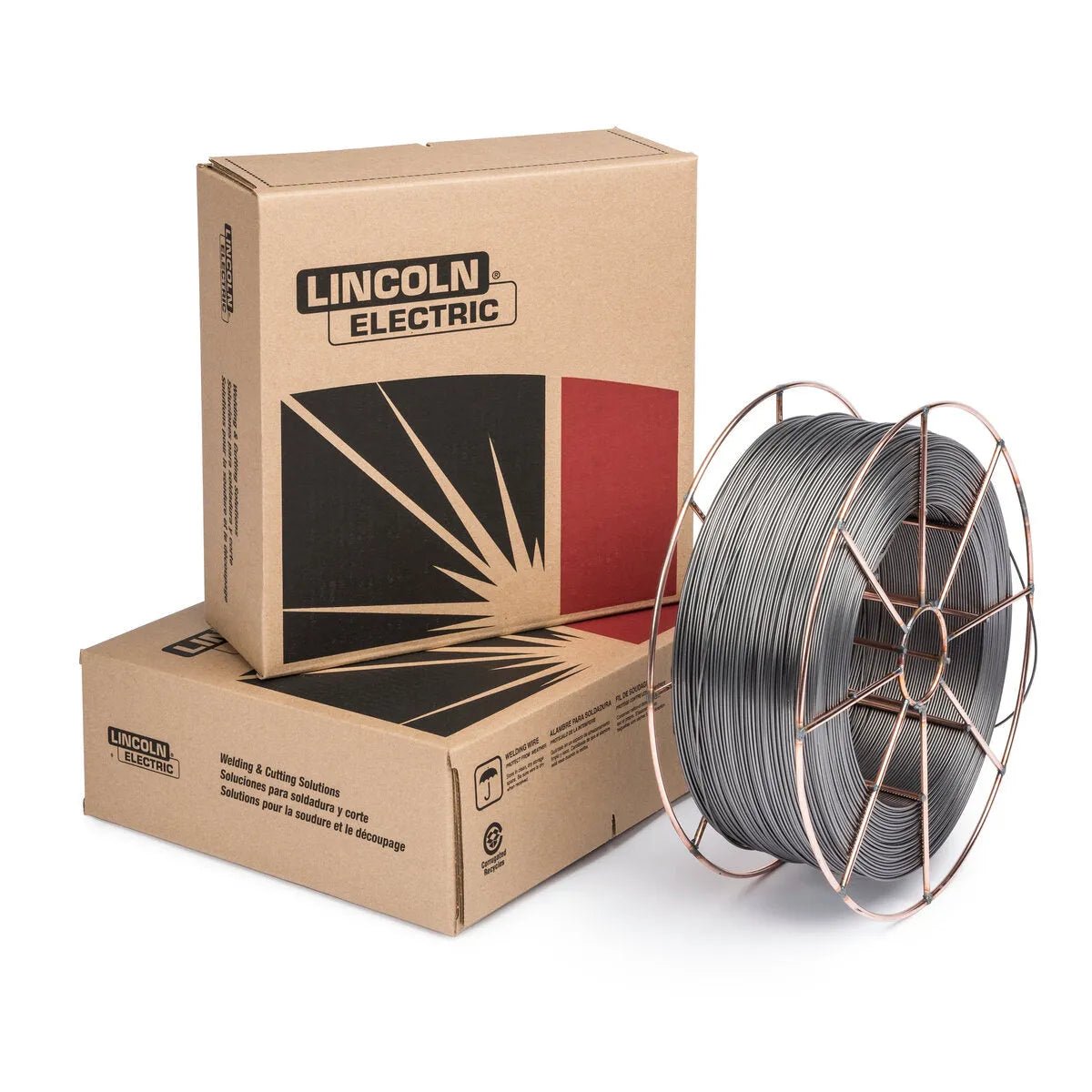

Lincoln ED030650 Innershield NR-311 Ni Flux-Cored FCAW-S Welding Wire, 5/64 in, 25 lb Spool

$241.50
Innershield® NR®-311 Ni from Lincoln Electric is designed to provide a nominal 1.5% nickel weld deposit with high deposition rates and fast travel.
AWS / Classification: E70T7-K2-H16, E80TG-K2-H16, E70T7-A2-K2-H16, E80TG-A2-K2-H16

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED030650 Innershield NR-311 Ni Flux-Cored FCAW-S Welding Wire, 5/64 in, 25 lb Spool

Designed to provide a nominal 1.5% nickel weld deposit with high deposition rates and fast travel. Recommended for flat and horizontal positions in single and multiple pass welding.

Features

• Designed to provide a nominal 1.5% nickel weld deposit High deposition rates and fast travel speeds Capable of producing weld deposits with impact properties exceeding 27 J (20 ft&middot
• lbf) at -29&deg
• C (-20&deg
• F) Color match on weathering steel applications 3/32 in (2.4 mm) diameter meets FEMA 353 and AWS D1.8 seismic lot waiver requirementsFEMA 353 and AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Certificate Center.
•

Lincoln ED030650 Innershield NR-311 Ni Flux-Cored FCAW-S Welding Wire, 5/64 in, 25 lb Spool

Designed to provide a nominal 1.5% nickel weld deposit with high deposition rates and fast travel. Recommended for flat and horizontal positions in single and multiple pass welding.

Features

• Designed to provide a nominal 1.5% nickel weld deposit High deposition rates and fast travel speeds Capable of producing weld deposits with impact properties exceeding 27 J (20 ft&middot
• lbf) at -29&deg
• C (-20&deg
• F) Color match on weathering steel applications 3/32 in (2.4 mm) diameter meets FEMA 353 and AWS D1.8 seismic lot waiver requirementsFEMA 353 and AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Certificate Center.
•

Includes
What's Included
  • (1) 25 lb Spool

Specifications
CONFORMANCE
CONFORMANCES SPECIFICATION CLASSIFICATION
AWS AWS A5.29 E70T7-K2-H16, E80TG-K2-H16
AWS AWS A5.36 E70T7-A2-K2-H16, E80TG-A2-K2-H16
ABS ABS - Part 2 2YSA
BV BV - Chapter 5 SA2YM
DNV-GL DNV - 2.9 II YMS
DB ISO 17632-A T 42 2 1, 5Ni W N 5
LR LR - Chapter 11 2YS
MECHANICAL PROPERTIES
Classification Polarity Yield Strength @ 0.2% Offset, MPa (ksi) Tensile Strength, MPa (ksi) Elongation, % Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E70T7-K2-H16 Requirement DC- 400 (58) min. 480-620 (70-90) 20 min. 27 (20) min.
E70T7-A2-K2-H16 Requirement DC- 400 (58) min. 480-660 (70-95) 22 min. 27 (20) min.
Typical Result, As-welded DC- 470 (68) 580-620 (84-90) 25 27-108 (20-80)
DEPOSIT COMPOSITION
Classification Polarity %Al %C %Cr %Mn %Mo %Ni %P %S %Si %V Diffusible Hydrogen, mL/100g Weld Metal
E70T7-K2-H16 Requirement DC- 1.8 max. 0.15 max. 0.15 max. 0.50 - 1.75 0.35 max. 1.00 - 2.00 0.030 max. 0.030 max. 0.80 max. 0.05 max. 16.0 max.
E70T7-A2-K2-H16 Requirement DC- 1.8 max. 0.15 max. 0.15 max. 0.50 - 1.75 0.35 max. 1.00 - 2.00 0.030 max. 0.030 max. 0.80 max. 0.05 max. 16 max.
Typical Result DC- 1.0-1.4 0.06-0.08 0.05 1.27-1.48 0.05 1.30-1.55 0.010 0.003 0.20-0.24 0.010 8.0
TYPICAL OPERATING PROCEDURES
Diameter Polarity CTWD, mm (in.) Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Melt-off Rate, kg/hr (lb/hr) Deposition Rate, kg/hr (lb/hr) Efficiency, %
5/64 in (2.0 mm) DC- 32 (1 1/4) 2.5 (100) 21-23 170 2.5 (5.5) 1.8 (3.9) 70
5/64 in (2.0 mm) DC- 32 (1 1/4) 3.3 (130) 24-26 205 3.3 (7.2) 2.4 (5.2) 72
5/64 in (2.0 mm) DC- 32 (1 1/4) 4.1 (160) 25-27 235 4.0 (8.8) 2.9 (6.5) 73
5/64 in (2.0 mm) DC- 32 (1 1/4) 5.1 (200) 26-28 270 5.0 (11.0) 3.8 (8.3) 75
5/64 in (2.0 mm) DC- 32 (1 1/4) 6.1 (240) 27-29 295 6.1 (13.3) 4.5 (10.0) 75
3/32 in (2.4 mm) DC- 38 (1 1/2) 1.9 (75) 20-22 200 2.8 (6.2) 1.9 (4.2) 67
3/32 in (2.4 mm) DC- 38 (1 1/2) 2.5 (100) 21-23 245 3.8 (8.3) 2.7 (5.9) 71
3/32 in (2.4 mm) DC- 38 (1 1/2) 3.1 (125) 23-25 285 4.7 (10.4) 3.4 (7.5) 72
3/32 in (2.4 mm) DC- 38 (1 1/2) 3.8 (150) 25-27 330 5.7 (12.5) 4.1 (9.1) 72
3/32 in (2.4 mm) DC- 38 (1 1/2) 4.4 (175) 26-28 365 6.6 (14.5) 4.9 (10.8) 74
3/32 in (2.4 mm) DC- 38 (1 1/2) 5.1 (200) 27-29 390 7.6 (16.6) 5.6 (12.3) 74
7/64 in (2.8 mm) DC- 44.5 (1 3/4) 2.5 (100) 22-24 310 5.2 (11.4) 3.8 (8.4) 73
7/64 in (2.8 mm) DC- 44.5 (1 3/4) 3.5 (140) 24-26 370 7.2 (15.8) 5.4 (11.8) 74
7/64 in (2.8 mm) DC- 44.5 (1 3/4) 4.3 (170) 26-28 430 8.9 (19.5) 6.6 (14.5) 74
7/64 in (2.8 mm) DC- 44.5 (1 3/4) 5.1 (200) 28-30 470 10.4 (22.8) 7.7 (17.0) 74
7/64 in (2.8 mm) DC- 44.5 (1 3/4) 6.1 (240) 29-31 520 12.4 (27.2) 9.2 (20.4) 75
LECO Diameter 5/64 in (2.0 mm)
LECO Package 25 lb Spool
Diameter (in) 5/64
