Lincoln Electric Lincolnweld 960 ED030841 Submerged Arc Wire – 50 lb

SKU: ED030841
$153.48 $162.00
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Special Neutral Flux
Overview

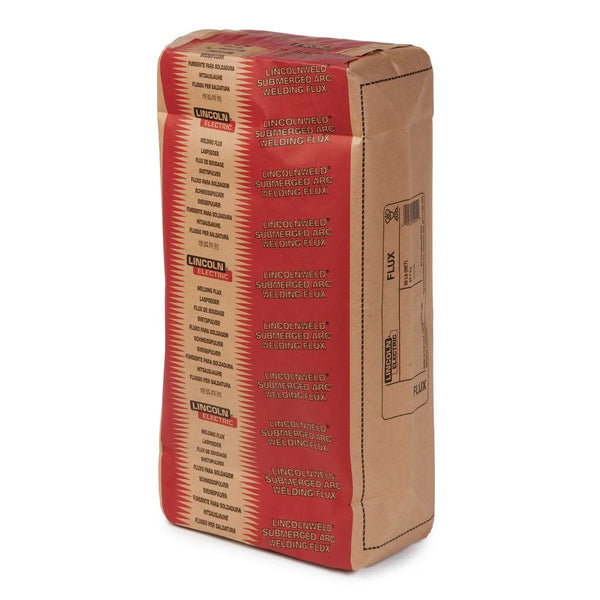

Lincoln ED030841 Lincolnweld 960 Submerged Arc SAW Flux, 50 lb Bag

Features

  • Low cost, general purpose flux designed to weld butt joints and both single and multiple pass fillets
  • Recommended for automatic and semiautomatic submerged arc welding
  • A versatile, cost-effective flux that can be used with many alloy systems
  • Can be used on A588 weathering steels when combined with Lincolnweld® LA-75



Features
  • Low cost, general purpose flux designed to weld butt joints and both single and multiple pass fillets
  • Recommended for automatic and semiautomatic submerged arc welding
  • A versatile, cost-effective flux that can be used with many alloy systems
  • Can be used on weathering steels when combined with Lincolnweld® LA-75
  • Actual (Type 3.1) certificates for each lot of flux showing chemical composition, particle size and moisture level are available in the certificate center of lincolnelectric.com
  • Q2 lot testing with mechanical results for ED030841
Specifications
FeatureValue
Wire ClassificationPostweld Heat TreatmentYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -45°C (-50°F)Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)
Lincolnweld® L-50® F7A2-EM13K-H4As-welded410 (59)510 (74)3247 (35)
Lincolnweld® L-56® F7A2-EH11K-H4As-welded480 (69)590 (86)2942 (31)
Lincolnweld® L-61® F6P4-EM12K1 hour @ 620°C (1150°F)340 (49)460 (67)35140 (103)
Lincolnweld® L-61® F7A2-EM12K-H8As-welded410 (59)500 (72)31152 (112)
Lincolnweld® LA-100 F10A4-EM2-G-H4As-welded650 (94)720 (105)2350 (37)
Lincolnweld® LA-71 F7A2-EM14K-H4As-welded460 (67)570 (82)2968 (50)
Lincolnweld® LA-71 F7P2-EM14K-H41 hour @ 620°C (1150°F)410 (60)540 (79)3094 (69)
Lincolnweld® LA-75 F7P6-ENi1K-Ni1-H41 hour @ 620°C (1150°F)440 (64)560 (81)2956 (41)
Lincolnweld® LA-75 F8A2-ENi1K-Ni1-H4As-welded480 (70)580 (84)2581 (60)
Lincolnweld® LA-85 (LNS 165) F7P5-ENi5-G-H41 hour @ 620°C (1150°F)470 (68)570 (83)2758 (43)
Lincolnweld® LA-85 (LNS 165) F8A2-ENi5-G-H4As-welded500 (72)590 (86)2668 (50)
Lincolnweld® LA-93 (LNS 151) F9P0-EB3-G-H81 hour @ 690°C (1275°F)540 (79)650 (94)23
Wire Classification%Ti%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%Ti+V+ZrDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® L-50® F7A2-EM13K-H40.060.091.480.0160.0080.584
Lincolnweld® L-56® F7A2-EH11K-H40.050.111.860.0160.0060.964
Lincolnweld® L-61® F6P4-EM12K0.050.101.300.0210.0040.38
Lincolnweld® L-61® F7A2-EM12K-H80.050.061.270.0150.0090.425
Lincolnweld® LA-100 F10A4-EM2-G-H40.040.050.030.141.630.441.960.0080.0040.450.043
Lincolnweld® LA-71 F7A2-EM14K-H40.020.060.151.580.0150.0100.694
Lincolnweld® LA-71 F7P2-EM14K-H40.020.070.151.580.0150.0100.694
Lincolnweld® LA-75 F7P6-ENi1K-Ni1-H40.040.040.111.570.010.850.0140.0090.730.013
Lincolnweld® LA-75 F8A2-ENi1K-Ni1-H40.050.040.111.540.010.840.0140.0100.710.013
Lincolnweld® LA-85 (LNS 165) F7P5-ENi5-G-H40.050.030.091.610.220.850.0160.0100.424
Lincolnweld® LA-85 (LNS 165) F8A2-ENi5-G-H40.050.030.081.620.230.850.0160.0100.424
Lincolnweld® LA-93 (LNS 151) F9P0-EB3-G-H80.052.100.081.170.940.0140.0070.323
Classification %Al2O3%CaF2%CaO%MgO%MnO%Na2O%SiO2%TiO2%Metal Alloys
Typical Result 29111221022113
LECO Diameter Flux
LECO Package 50 lb Bag
Includes
  • (1) 50 lb Bag
