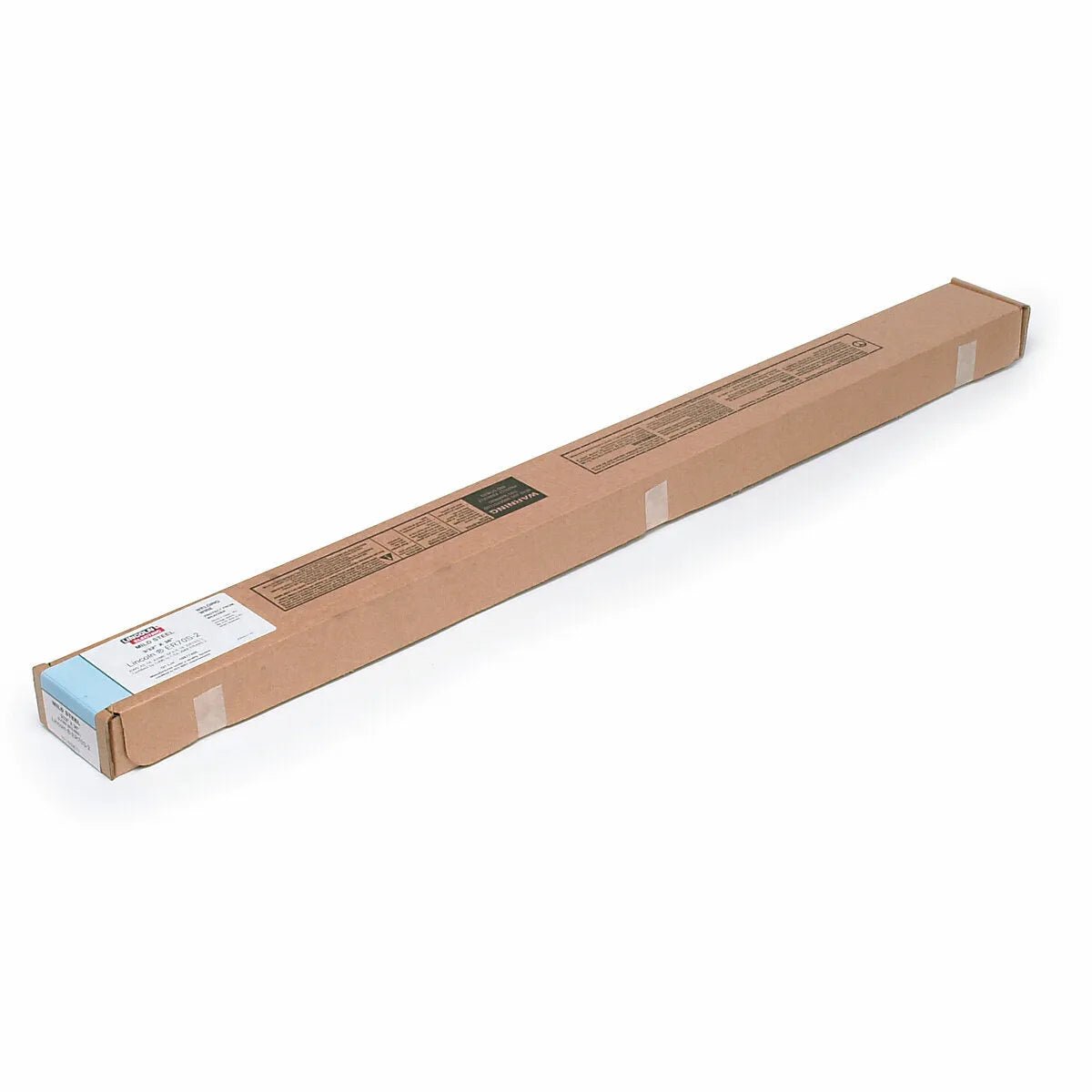

Lincoln Electric — Lincoln ED031108 SuperGlaze 5356 GTAW Aluminum Welding TIG Rod, 1/16 in, 10 lb Carton
SuperGlaze® 5356 is very commonly used for higher strength welding of 5XXX and 6XXX base materials.
Specifications
- CONFORMANCES: SPECIFICATION, CLASSIFICATION
- AWS: AWS A5.10, ER5356
- Classification: %Be, %Cr, %Cu, %Fe, %Mg, %Mn, %Si, %Ti, %Zn
- ER5356 Requirement: 0.0003 max., 0.05 - 0.20, 0.10 max., 0.40 max., 4.5 - 5.5, 0.05 - 0.20, 0.25 max., 0.06 - 0.20, 0.10 max.
- Typical Result: 0.0002 max., 0.12, 0.00, 0.11, 4.9, 0.12, 0.06, 0.10, 0.01
- LECO Diameter: 1/16 in (1.6 mm)
- LECO Package: 10 lb Carton
- Diameter (in): 1/16
- Length (in): 36
- Part number: ED031108
- UPC/EAN: 0015082804569
Compatibility & sizing
- Compatible families: SuperGlaze
- Electrode type: TIG Rod, Aluminum MIG
- Available diameters: 1/16" Rod
Why pros choose this
TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.
From the manufacturer
Features
• Aluminum-magnesium alloy for use on many weldable cast and wrought aluminum alloys
• Excellent for color matching after anodizing
• Alloy embossed on each rod for easy identification
• General purpose filler alloy for 5XXX and 6XXX series alloys
• High strength filler metal
