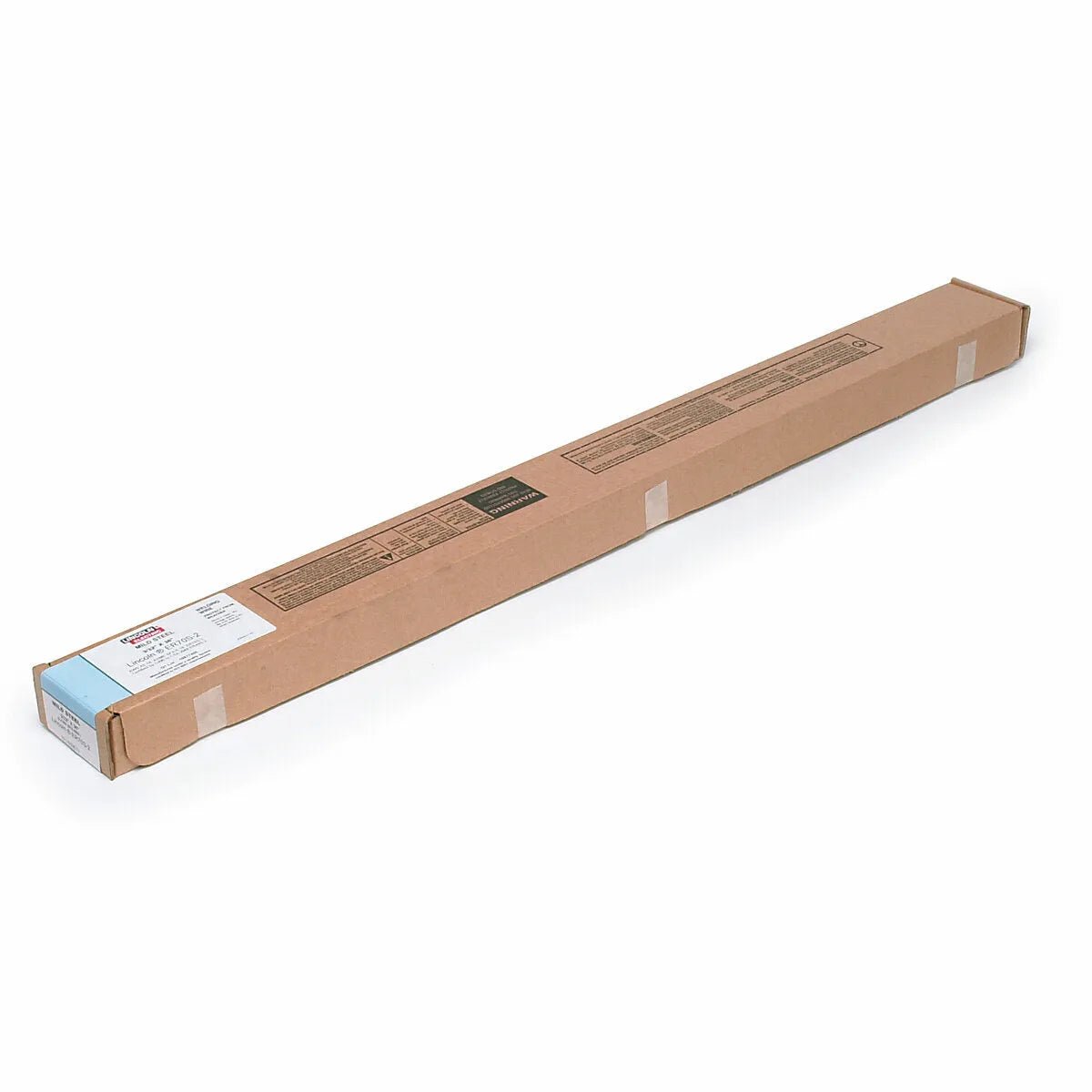

Lincoln Electric ED031110 TIG Rod 1/8" – 10 lb

Product Overview

Lincoln Electric — Lincoln ED031110 SuperGlaze 5356 GTAW Aluminum Welding TIG Rod, 1/8 in, 10 lb Carton

The Lincoln ED031110 SuperGlaze 5356 GTAW Aluminum Welding TIG Rod, 1/8 in, 10 lb Carton is a tig rod from Lincoln Electric.

Specifications

• CONFORMANCES: SPECIFICATION, CLASSIFICATION
• AWS: AWS A5.10, ER5356
• Classification: %Be, %Cr, %Cu, %Fe, %Mg, %Mn, %Si, %Ti, %Zn
• ER5356 Requirement: 0.0003 max., 0.05 - 0.20, 0.10 max., 0.40 max., 4.5 - 5.5, 0.05 - 0.20, 0.25 max., 0.06 - 0.20, 0.10 max.
• Typical Result: 0.0002 max., 0.12, 0.00, 0.11, 4.9, 0.12, 0.06, 0.10, 0.01
• LECO Diameter: 1/8 in (3.2 mm)
• LECO Package: 10 lb Carton
• Diameter (in): 1/8
• Length (in): 36
• Part number: ED031110
• UPC/EAN: 0015082804583

Compatibility & sizing

• Compatible families: SuperGlaze
• Electrode type: TIG Rod, Aluminum MIG
• Available diameters: 1/8" Rod

Why pros choose this

TIG (GTAW) filler rods give welders precise control over the weld pool because the filler is fed manually rather than carried in the arc. Choosing the correct alloy and diameter keeps weld chemistry, penetration, and bead appearance consistent across procedures.

From the manufacturer

Alloy 5356 TIG is used when 40,000 PSI is not a requirement. Suitable for all position non- heat treatable welding applications and recommended for welding 5XXX or 6XXX cast and wrought aluminum alloys

Features

• Aluminum-magnesium alloy for use on many weldable cast and wrought aluminum alloys
• Excellent for color matching after anodizing
• Alloy embossed on each rod for easy identification
• General purpose filler alloy for 5XXX and 6XXX series alloys
• High strength filler metal
