Lincoln Electric  |  SKU: ED031120

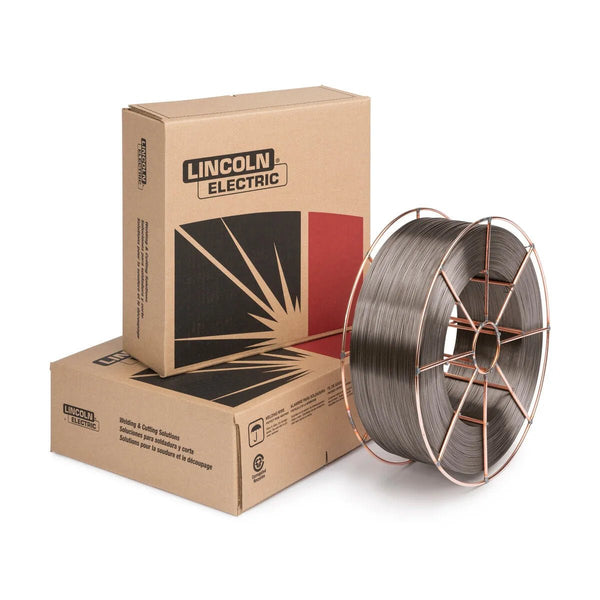

Lincoln ED031120 Lincore 55 Flux-Cored FCAW-S Welding Wire, 0.045 in, 25 lb Steel Spool

$355.50
LINCORE® 55 Flux-Cored Self-Shielded Wire is designed for crane wheels, blower blades, rail ends, skip guides, cams and transfer tables applications (Metal to Metal or Metal to Earth Abrasion)
Warranty: 1 Year
AWS / Classification: EN/ISO: T Fe2

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.




More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED031120 Lincore 55 Flux-Cored FCAW-S Welding Wire, 0.045 in, 25 lb Steel Spool

LINCORE® 55 produces a martensitic and some retained austenite deposit with a hardness range of Rockwell Hardness 50-59 (RHC) delivers a deposit which resists metal to-metal rolling or sliding wear as well as mild abrasion, offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features

  • Delivers a deposit which resists metal-to-metal rolling or sliding wear as well as mild abrasion
  • To be used on carbon steel, low alloy steel and manganese steel
  • Unlimited layers with proper preheat and interpass temperatures and procedures

Lincoln ED031120 Lincore 55 Flux-Cored FCAW-S Welding Wire, 0.045 in, 25 lb Steel Spool

LINCORE® 55 produces a martensitic and some retained austenite deposit with a hardness range of Rockwell Hardness 50-59 (RHC) delivers a deposit which resists metal to-metal rolling or sliding wear as well as mild abrasion, offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features

  • Delivers a deposit which resists metal-to-metal rolling or sliding wear as well as mild abrasion
  • To be used on carbon steel, low alloy steel and manganese steel
  • Unlimited layers with proper preheat and interpass temperatures and procedures

Includes
What's Included
  • (1) 25 lb Steel Spool

Specifications
MECHANICAL PROPERTIES
Classification Number of layer Hardness Rockwell C
Typical Result 1 Layer 50-59
Typical Result 2 Layers 50-60
Typical Result, Work-hardened 1 Layer 53-62
Typical Result, Work-hardened 2 Layers 56-62
Typical Result, Flame-hardened 2 Layers 52-54
Typical Result, 180°C (350°F) Interpass Temp 1 Layer 50-55
Typical Result, 180°C (350°F) Interpass Temp 2 Layers 55-59
DEPOSIT COMPOSITION
Classification Product Size %Al %C %Cr %Mn %Mo %P %S %Si
Typical Result .045" (1.1 mm) 1.4 0.45 5.3 1.3 0.8 0.010 0.004 0.53
Typical Result 1/16" (1.6 mm) 1.4 0.45 5.3 1.3 0.8 0.010 0.004 0.53
Typical Result 5/64" (2.0 mm) 1.4 0.45 5.3 1.4 0.8 0.010 0.004 0.60
Typical Result 7/64" (2.8 mm) 1.4 0.45 5.3 1.4 0.8 0.010 0.004 0.60
TYPICAL OPERATING PROCEDURES
Diameter Polarity ESO, mm (in.) Wire Feed Speed, m/min (in/min) Voltage, volts Approx. Current, amps Deposition Rate, kg/hr (lb/hr)
0.045 in (1.1 mm) DC+ 45 (1 3/4) 5.1 (200) 25 85 1.6 (3.6)
0.045 in (1.1 mm) DC+ 45 (1 3/4) 8.9 (350) 28 125 3.0 (6.6)
0.045 in (1.1 mm) DC+ 45 (1 3/4) 12.7 (500) 31 165 4.3 (9.4)
1/16 in (1.6 mm) DC+ 45 (1 3/4) 3.8 (150) 26 125 2.2 (4.8)
1/16 in (1.6 mm) DC+ 45 (1 3/4) 6.4 (250) 29 195 3.8 (8.4)
1/16 in (1.6 mm) DC+ 45 (1 3/4) 8.9 (350) 32 245 5.5 (12.1)
5/64 in (2.0 mm) DC+ 45 (1 3/4) 3.2 (125) 24 190 3.2 (7.0)
5/64 in (2.0 mm) DC+ 45 (1 3/4) 5.1 (200) 27 295 5.0 (11.0)
5/64 in (2.0 mm) DC+ 45 (1 3/4) 6.4 (250) 30 330 6.2 (13.7)
7/64 in (2.8 mm) DC+ 64 (2 1/2) 2.3 (90) 25 280 3.8 (8.4)
7/64 in (2.8 mm) DC+ 64 (2 1/2) 3.2 (125) 27 350 5.2 (11.5)
7/64 in (2.8 mm) DC+ 64 (2 1/2) 4.4 (175) 30 420 7.3 (16.0)
LECO Diameter 0.045 in (1.1 mm)
LECO Package 25 lb Steel Spool
Diameter (in) 0.045

Lincoln ED031120 Lincore 55 Flux-Cored FCAW-S Welding Wire, 0.045 in, 25 lb Steel Spool

LINCORE® 55 produces a martensitic and some retained austenite deposit with a hardness range of Rockwell Hardness 50-59 (RHC) delivers a deposit which resists metal to-metal rolling or sliding wear as well as mild abrasion, offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features

  • Delivers a deposit which resists metal-to-metal rolling or sliding wear as well as mild abrasion
  • To be used on carbon steel, low alloy steel and manganese steel
  • Unlimited layers with proper preheat and interpass temperatures and procedures

Lincoln ED031120 Lincore 55 Flux-Cored FCAW-S Welding Wire, 0.045 in, 25 lb Steel Spool

LINCORE® 55 produces a martensitic and some retained austenite deposit with a hardness range of Rockwell Hardness 50-59 (RHC) delivers a deposit which resists metal to-metal rolling or sliding wear as well as mild abrasion, offers unlimited layers with proper preheat and interpass temperatures and procedures.

Features

  • Delivers a deposit which resists metal-to-metal rolling or sliding wear as well as mild abrasion
  • To be used on carbon steel, low alloy steel and manganese steel
  • Unlimited layers with proper preheat and interpass temperatures and procedures
