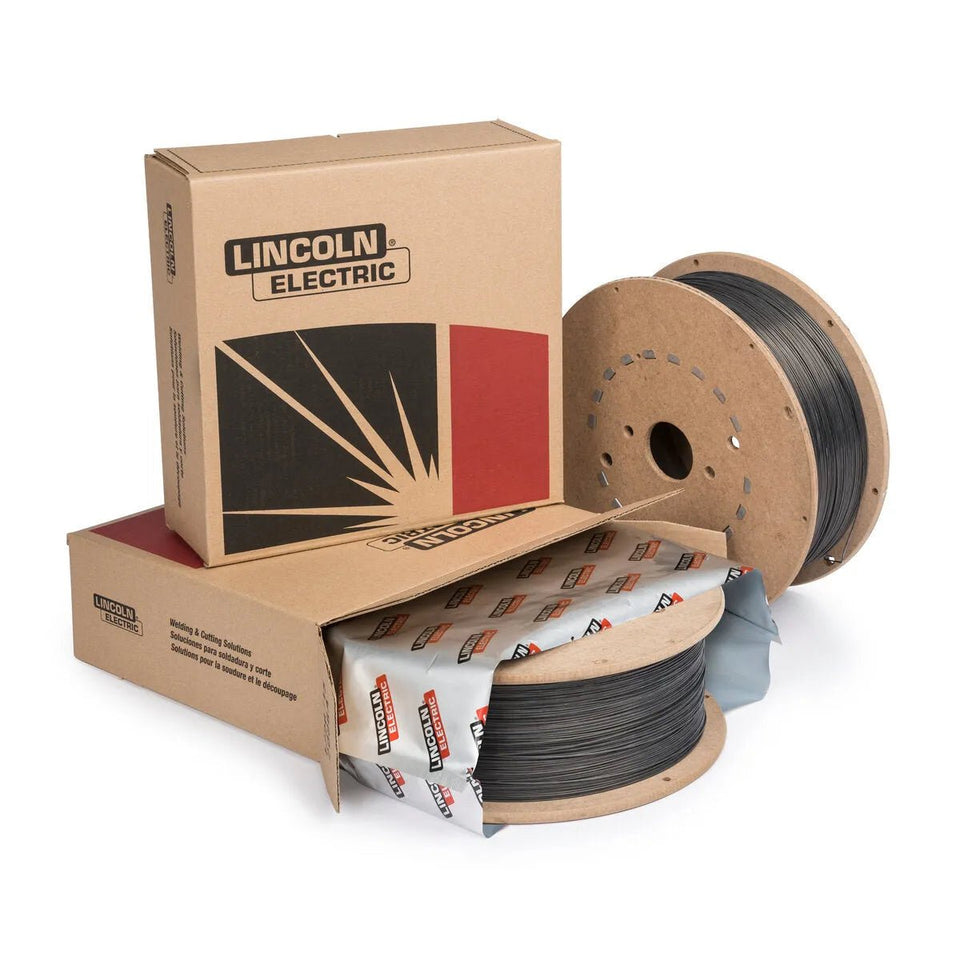

Lincoln ED031670 UltraCore 71A75 Dual Flux-Cored FCAW-G Welding Wire, 0.052 in, 33 lb Spool

SKU: ED031670
$167.19 $177.54
Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.

More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.
UltraCore® 71A75 Dual from Lincoln Electric is a general purpose wire that gives you the flexibility to use either straight CO2 or 75% Argon/25% CO2 gas.
AWS / Classification: E71T-9C-H8, E71T-9M-H8, E71T1-C1A2-CS1-H8, E71T1-M21A2-CS1-H8
Overview
Lincoln ED031670 UltraCore 71A75 Dual Flux-Cored FCAW-G Welding Wire, 0.052 in, 33 lb Spool

A general purpose wire that gives you the flexibility to use either straight CO2 or 75% Argon/25% CO2 gas. It delivers a stable arc, low spatter, and a smooth bead appearance for general fabrication applications.

Features
  • Fast freezing slag for out-of-position welding
  • Designed for welding with either 100% CO2 or 75% Argon/25% CO2 shielding gases
  • Premium arc performance and bead appearance
  • ProTech® foil bag packaging
  • Available to meet Buy America. Choose a Buy America MTS product from the list of Available Types or contact a Lincoln Electric representative

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-1C-H8, E71T-1M-H8, E71T-9C-H8, E71T-9M-H8
AWS AWS A5.36E71T1-C1A2-CS1-H8, E71T1-M21A2-CS1-H8
CWB CSA W48E491T1-C1A3-CS1-H8 (E491T-9-H8), E491T1-GA3-CS1-H8 (E491T-9M-H8), E491T1-M21A3-CS1-H8 (E491T-9M-H8)
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T-1C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-1M-H8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9C-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+510 (74)560-640 (81-92)2334-133 (25-98)28-123 (21-91)
Typical Result, As-welded 75% Ar, 25% CO2DC+530 (77)580-640 (84-92)2331-96 (23-71)36-119 (26-88)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E71T-1C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-1M-H8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9C-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-C1A2-CS1-H8 Requirement 100% CO2DC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 100% CO2DC+0.0037-0.0060.03-0.051.17-1.450.020 max.0.0110.40-0.523-6.2
Typical Result 75% Ar, 25% CO2DC+0.0041-0.0060.03-0.051.35-1.600.020 max.0.0100.51-0.624-7.1
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)4.4 (175)20-251351.8 (4.0)1.6 (3.5)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)6.4 (250)21-261502.6 (5.7)2.3 (5.0)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)7.6 (300)22-271653.1 (6.8)2.7 (6.0)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)8.9 (350)23-281903.6 (8.0)3.2 (7.0)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)10.2 (400)24-292054.1 (9.1)3.6 (8.0)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)11.4 (450)25-302254.7 (10.3)4.1 (9.0)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)12.7 (500)26-312455.2 (11.4)4.5 (10.0)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)14.0 (550)27-322655.7 (12.5)5.0 (10.9)86-88
0.045 in (1.1 mm) 75% Ar / 25% CO2DC+25 (1)15.2 (600)27-332856.2 (13.7)5.4 (11.9)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)3.8 (150)20-251552.0 (4.5)1.8 (3.9)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)5.1 (200)21-261652.7 (6.0)2.4 (5.2)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)6.4 (250)22-271903.4 (7.5)2.9 (6.5)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)7.6 (300)23-282154.1 (9.0)3.5 (7.8)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)8.9 (350)24-292354.7 (10.5)4.1 (9.1)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)9.5 (375)25-302555.1 (11.2)4.4 (9.8)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)10.8 (425)27-312755.8 (12.7)5.0 (11.1)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)12.1 (475)28-332956.4 (14.2)5.6 (12.4)86-88
0.052 in (1.3 mm) 75% Ar / 25% CO2DC+25 (1)12.7 (500)29-353256.8 (15.0)5.9 (13.0)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)3.2 (125)20-251952.4 (5.3)2.1 (4.6)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)4.4 (175)21-262153.3 (7.4)2.9 (6.4)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)5.1 (200)22-272353.8 (8.4)3.3 (7.3)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)5.7 (225)23-282654.3 (9.5)3.7 (8.2)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)6.4 (250)24-292854.8 (10.5)4.2 (9.2)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)7.6 (300)25-313155.7 (12.6)5.0 (11.0)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)8.3 (325)25-323356.2 (13.7)5.4 (11.9)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)8.9 (350)26-333656.7 (14.7)5.8 (12.8)86-88
1/16 in (1.6 mm) 75% Ar / 25% CO2DC+25 (1)10.2 (400)28-354057.6 (16.8)6.6 (14.6)86-88
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 0.052 in (1.3 mm)
LECO Package 33 lb Spool
Diameter (in) 0.052
Includes
  • (1) 33 lb Spool
