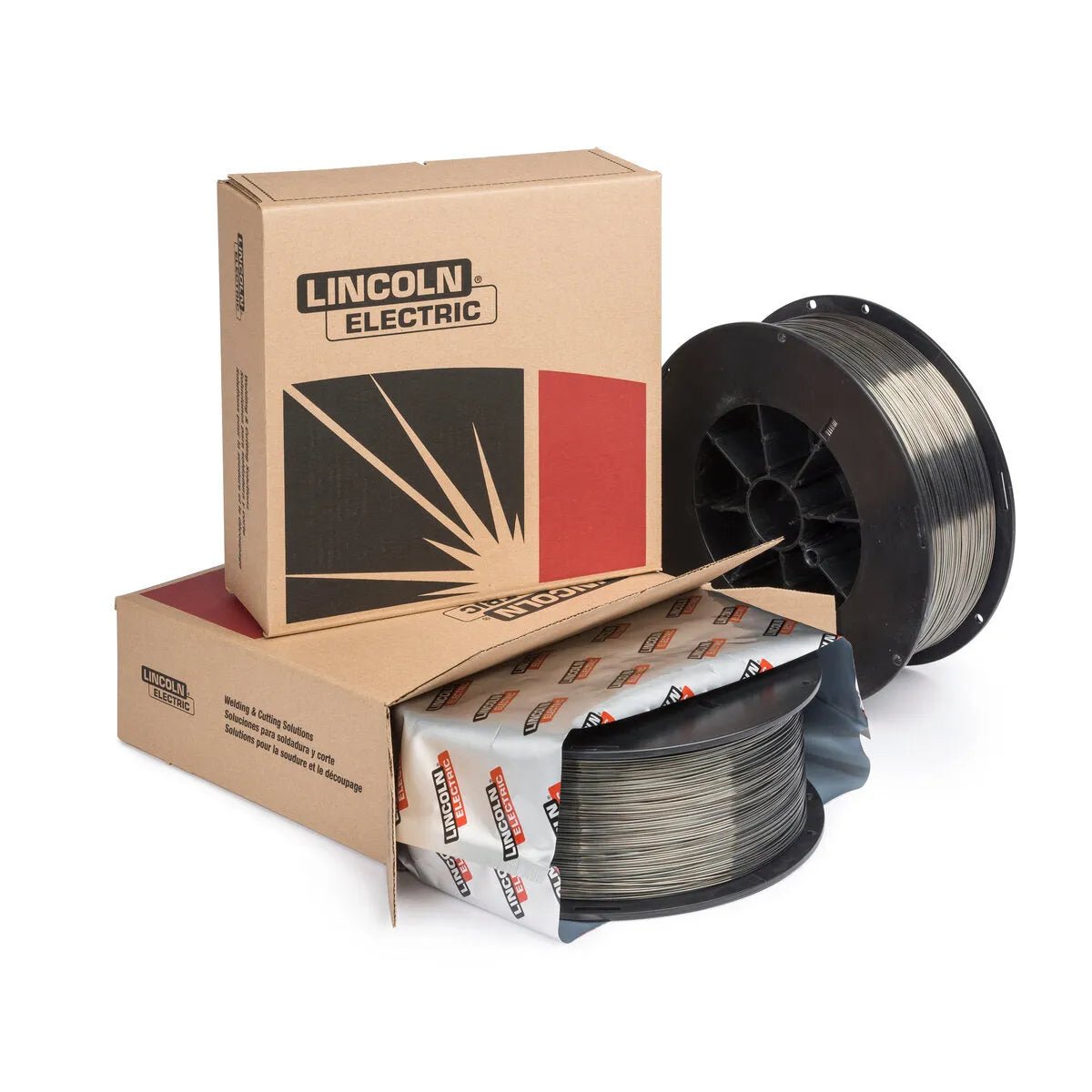

Lincoln ED031931 Pipeliner G90M Flux-Cored FCAW-G Welding, 0.047 in, 33 lb Plastic Spool

SKU: ED031931
$270.47 $331.98
Lincoln Elite Dealer
Free Shipping
Lowest Price
Pipeliner® G90M from Lincoln Electric is recommended for hot, fill and cap pass welding of up to X80 grade pipe.
AWS / Classification: E111T1-K3M-JH8, E111T1-M21A2-K3-H8
Overview

The highest strength flux-cored wire in the Pipeliner family. It is recommended for hot, fill and cap pass welding of up to X80 grade pipe.

Features

• Hot, fill and cap pass welding of up to X80 grade pipe High stacking efficiency Capable of producing weld deposits with impact toughness exceeding 27 J (20 ft&middotlbf) at -40&degC (-40&degF) ProTech hermetically sealed packaging Q2 Lot Certificate showing actual deposit chemistry available online

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29E111T1-K3M-JH8
AWS AWS A5.36E111T1-M21A2-K3-H8
ABS AWS A5.29E111T1-K3M-JH4
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E111T1-K3M-JH8 Requirement 75-80% Ar, balance CO2DC+680 (98) min.760-900 (110-130)15 min.27 (20) min.
E111T1-M21A2-K3-H8 Requirement M21-ArCDC+680 (98) min.760-900 (110-130)15 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC-800 (117)840 (122)2164-72 (47-53)
Typical Result, As-welded 75% Ar, 25% CO2DC+730 (106)780-840 (114-121)1766-92 (49-68)
Classification Shielding GasPolarity%B%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal
E111T1-K3M-JH8 Requirement 75-80% Ar, balance CO2DC+0.15 max.0.15 max.0.75 - 2.250.25 - 0.651.25 - 2.600.030 max.0.030 max.0.80 max.0.05 max.8.0 max.
E111T1-M21A2-K3-H8 Requirement M21-ArCDC+0.15 max.0.15 max.0.75 - 2.250.25 - 0.651.25 - 2.600.030 max.0.030 max.0.80 max.0.05 max.8 max.
Typical Result 75% Ar, 25% CO2DC-0.0060.060.081.710.551.940.0100.0070.280.00 max.
Typical Result 75% Ar, 25% CO2DC+0.0050-0.00680.05-0.060.07-0.091.72-1.910.54-0.601.91-2.220.008-0.0140.006-0.0100.28-0.310.00 max.2-5.4
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
1.2 mm (0.045 in) 75-80% Ar / balance CO2DC+25 (1)4.4-10.2 (175-400)23-30130-2751.8-4.1 (3.9-9.0)
1.3 mm (0.052 in) 75-80% Ar / balance CO2DC+25 (1)4.4-9.5 (175-375)23-30130-2752.5-5.0 . (5.5-11.0)
Note
⁽¹⁾ For electrical stickout (ESO) subtract 6.4 mm (1/4 in) from contact tip to work distance (CTWD).
LECO Diameter 1.2 mm (0.047 in)
LECO Package 15 kg (33 lb) Plastic Spool
Diameter (in) 0.047
Includes
  • (1) 15 kg (33 lb) Plastic Spool
