Lincoln ED032047 UltraCore 71A85 Flux-Cored FCAW-G Welding Wire, 0.045 in, 500 lb Accu-Trak Drum

SKU: ED032047
$2,388.00 $2,930.00
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.


Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)


Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.


Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.



UltraCore® 71A85 from Lincoln Electric is designed specifically for use with high Argon mixed gas.
AWS / Classification: E71T-9M-H8, E71T1-M21A2-CS1-H8

Overview

Lincoln UltraCore 71A85 .045 welding wire is specifically optimized for use with high Argon mixed gas. With desirable arc characteristics and operability, UltraCore® 71A85 provides an excellent solution for shipbuilders, structural fabricators, and other industries looking for a great running E71T-1 with 75 - 85% Argon/balance CO2 shielding gas.

Features
  • Fast freezing slag for out-of-position welding
  • Designed for welding with 75 - 85% Argon/balance CO2 shielding gas
  • Premium arc performance and bead appearance
  • ProTech® foil bag packaging
  • Select packaging and diameter are available meeting Buy America & American Iron & Steel (AIS) standards.
  • Meets AWS D1.8 seismic lot waiver requirements
  • Notes: AWS D1.8 structural steel seismic supplement test data can be found in the Lincoln Electric Certificate Center.

Typical Applications

  • Shipbuilding
  • Seismic structural fabrication
  • General fabrication

Welding Positions

  • All

Shielding Gas

  • Mixed Shielding Gas
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.20E71T-1M-H8, E71T-9M-H8
AWS AWS A5.36E71T1-M21A2-CS1-H8
ABS ABS - Part 23YSA H10
CWB CSA W48E491T1-M20A3-CS1-H8 (E491T-9M-H8), E491T1-M21A3-CS1-H8 (E491T-9M-H8)
DNV-GL DNV - 2.9III YMS H10
LR LR - Chapter 113YS H10
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E71T-1M-H8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+400 (58) min.480-660 (70-95)22 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC+500 (73)570-650 (83-94)2794-125 (69-92)28-165 (21-122)
Classification Shielding GasPolarity%B%C%Mn%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E71T-1M-H8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T-9M-H8 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.75 max.0.03 max.0.03 max.0.90 max.8.0 max.
E71T1-M21A2-CS1-H8 Requirement M21-ArCDC+0.12 max.1.75 max.0.030 max.0.030 max.0.90 max.8 max.
Typical Result 75% Ar, 25% CO2DC+0.0051-0.0070.03-0.061.35-1.630.015 max.0.011 max.0.46-0.632.5-8
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)4.4 (175)21-261251.8 (4.0)1.6 (3.5)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)6.4 (250)22-271502.6 (5.7)2.3 (5.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)7.6 (300)23-281653.1 (6.8)2.7 (6.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)8.9 (350)23-291903.6 (8.0)3.2 (7.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)10.2 (400)25-302054.1 (9.1)3.6 (8.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)11.4 (450)26-312254.7 (10.3)4.1 (9.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)12.7 (500)27-322455.2 (11.4)4.5 (10.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)14.0 (550)28-332655.7 (12.5)5.0 (10.9)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)15.2 (600)28-342806.2 (13.7)5.4 (11.9)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)3.8 (150)21-261502.0 (4.5)1.8 (3.9)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)5.1 (200)21-271652.7 (6.0)2.4 (5.2)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)6.4 (250)22-271903.4 (7.5)2.9 (6.5)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)7.6 (300)23-282154.1 (9.0)3.5 (7.8)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)8.9 (350)24-292354.7 (10.5)4.1 (9.1)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)9.5 (375)25-302555.1 (11.2)4.4 (9.8)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)10.8 (425)26-312755.8 (12.7)5.0 (11.1)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)12.1 (475)27-322956.4 (14.2)5.6 (12.4)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)12.7 (500)27-333156.8 (15.0)5.9 (13.0)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)3.2 (125)20-251852.4 (5.3)2.1 (4.6)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)4.4 (175)21-262153.3 (7.4)2.9 (6.4)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)5.1 (200)22-272353.8 (8.4)3.3 (7.3)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)5.7 (225)23-282654.3 (9.5)3.7 (8.2)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)6.4 (250)24-292854.8 (10.5)4.2 (9.2)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)7.6 (300)25-303155.7 (12.6)5.0 (11.0)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)8.3 (325)26-313356.2 (13.7)5.4 (11.9)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)8.9 (350)27-323656.7 (14.7)5.8 (12.8)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)10.2 (400)28-333857.6 (16.8)6.6 (14.6)86-88
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 0.045 in (1.1 mm)

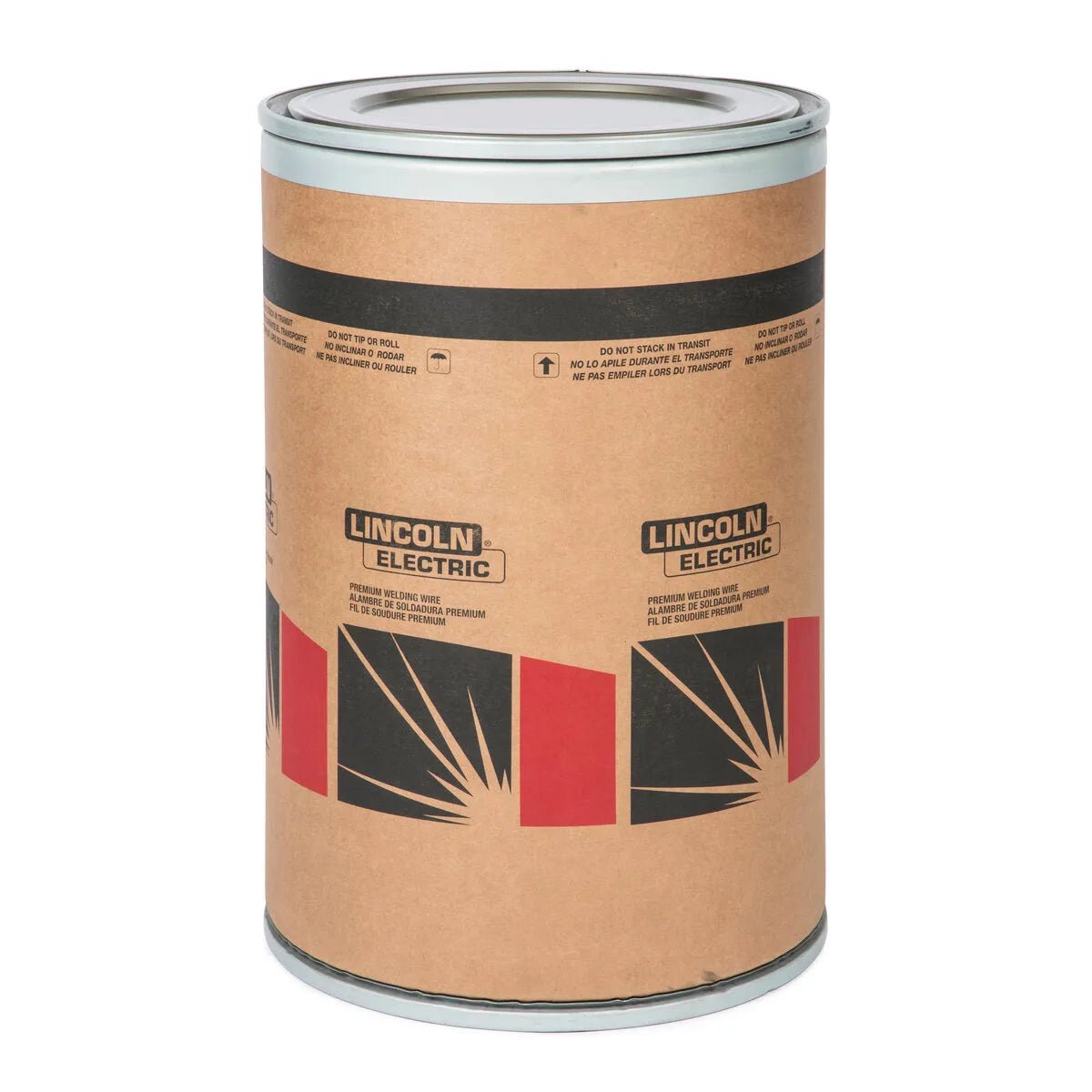

LECO Package 500 lb Accu-Trak® Drum
Diameter (in) 0.045
Downloads
Includes
  • (1) 500 lb Accu-Trak® Drum
