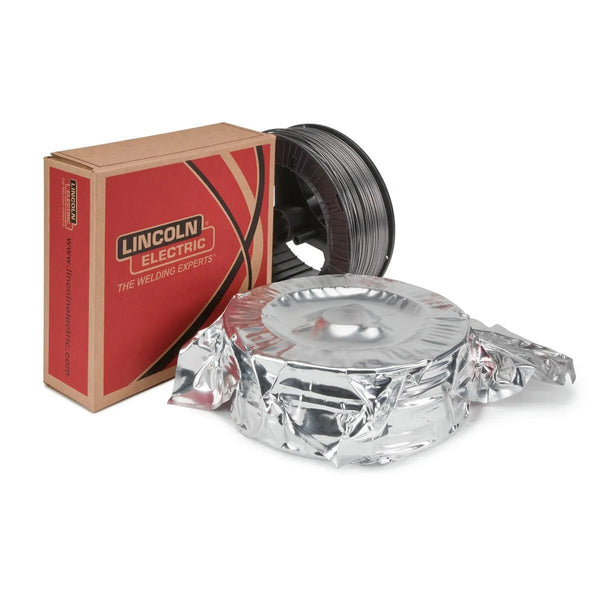

Lincoln ED032217 UltraCore 81Ni2A75-H Flux-Cored FCAW-G Welding Wire, 0.045 in, 33 lb Spool

SKU: ED032217
$202.36 $247.83
Lincoln Elite Dealer
Free Shipping
Lowest Price
UltraCore® 81Ni2A75-H from Lincoln Electric exhibits superior crack resistance due to low diffusible hydrogen levels (4 mL/100 grams of weld deposit max).
AWS / Classification: E81T1-Ni2M-JH4, E81T1-M21A6-Ni2-H4
Overview

For high strength, low alloy applications where productivity and consistency are a must in 75% Argon/25% CO2 applications. The mixed shielding gas stabilizes arc characteristics, reduces spatter levels, and washes out of the weld bead for a flat appearance.

Features
  • Capable of producing weld deposits with impact toughness exceeding 88 - 123 J (65 - 91 ft·lbf) at -40°C (-40°F)
  • Designed for welding with 75-85% Argon/Balance CO2 shielding gas
  • Premium arc performance and bead appearance
  • Meets AWS D1.8 seismic lot waiver requirements
  • ProTech® foil bag packaging
  • Notes: AWS D1.8 structural steel seismic supplement test data can be found at the Lincoln Electric Certificate Center.
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29E81T1-Ni2M-JH4
AWS AWS A5.36E81T1-M21A6-Ni2-H4
ABS ABS - Part 23YSA H5
CWB CSA W48E551T1-M21A5-Ni2-H4 (E551T1-Ni2M-JH4)
DNV-GL DNV - 2.9III Y40MS H5
LR LR - Chapter 113YS H5
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)Charpy V-Notch, J (ft-lbs) @ -60°C (-75°F)
E81T1-Ni2M-JH4 Requirement 75-80% Ar, balance CO2DC+470 (68) min.550-690 (80-100)19 min.27 (20) min.
E81T1-M21A6-Ni2-H4 Requirement M21-ArCDC+470 (68) min.550-690 (80-100)19 min.27 (20) min.
Typical Result, As-welded 75% Ar, 25% CO2DC+540 (78)590-680 (85-98)2288-125 (65-92)31-117 (23-87)33-42 (24-31)
Classification Shielding GasPolarity%B%C%Mn%Ni%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
E81T1-Ni2M-JH4 Requirement 75-80% Ar, balance CO2DC+0.12 max.1.50 max.1.75 - 2.750.030 max.0.030 max.0.80 max.4.0 max.
E81T1-M21A6-Ni2-H4 Requirement M21-ArCDC+0.12 max.1.50 max.1.75 - 2.750.030 max.0.030 max.0.80 max.4 max.
Typical Result 75% Ar, 25% CO2DC+0.004-0.00610.04-0.050.91-1.062.00-2.340.014 max.0.010 max.0.25-0.331.3-4
Diameter Shielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)4.4 (175)21-261401.8 (4.0)1.6 (3.5)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)5.1 (200)22-271502.1 (4.6)1.8 (4.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)6.4 (250)22-271652.6 (5.7)2.3 (5.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)7.6 (300)23-281903.1 (6.8)2.7 (6.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)8.9 (350)24-292053.6 (8.0)3.2 (7.0)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)9.5 (375)24-292253.9 (8.6)3.4 (7.5)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)10.8 (425)25-302454.4 (9.7)3.8 (8.5)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)12.1 (475)26-312654.9 (10.8)4.3 (9.5)86-88
0.045 in (1.1 mm) 75-85% Ar / balance CO2DC+25 (1)12.7 (500)27-322755.2 (11.4)4.5 (10.0)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)3.8 (150)21-261502.0 (4.5)1.8 (3.9)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)4.7 (185)22-271652.5 (5.5)2.2 (4.8)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)5.7 (225)22-271903.1 (6.7)2.7 (5.9)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)6.4 (250)23-282153.4 (7.5)2.9 (6.5)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)7.0 (275)23-282353.7 (8.2)3.2 (7.2)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)7.6 (300)24-292554.1 (9.0)3.5 (7.8)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)8.5 (335)24-302754.5 (10.0)4.0 (8.7)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)9.5 (375)25-312955.1 (11.2)4.4 (9.8)86-88
0.052 in (1.3 mm) 75-85% Ar / balance CO2DC+25 (1)10.2 (400)25-323105.4 (12.0)4.7 (10.4)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)3.8 (150)21-272002.9 (6.3)2.5 (5.5)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)4.4 (175)21-282103.3 (7.4)2.9 (6.4)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)5.1 (200)22-292353.8 (8.4)3.3 (7.3)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)5.7 (225)23-302654.3 (9.5)3.7 (8.2)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)6.4 (250)24-312854.8 (10.5)4.2 (9.2)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)7.0 (275)24-323155.3 (11.6)4.6 (10.1)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)8.3 (325)24-323356.2 (13.7)5.4 (11.9)86-88
1/16 in (1.6 mm) 75-85% Ar / balance CO2DC+25 (1)8.9 (350)25-333656.7 (14.7)5.8 (12.8)86-88
Note
⁽¹⁾ To estimate ESO, subtract 1/4 in. (6.0 mm) from CTWD.
LECO Diameter 0.045 in (1.1 mm)
LECO Package 33 lb Spool
Diameter (in) 0.045
Downloads
Includes
  • (1) 33 lb Spool
