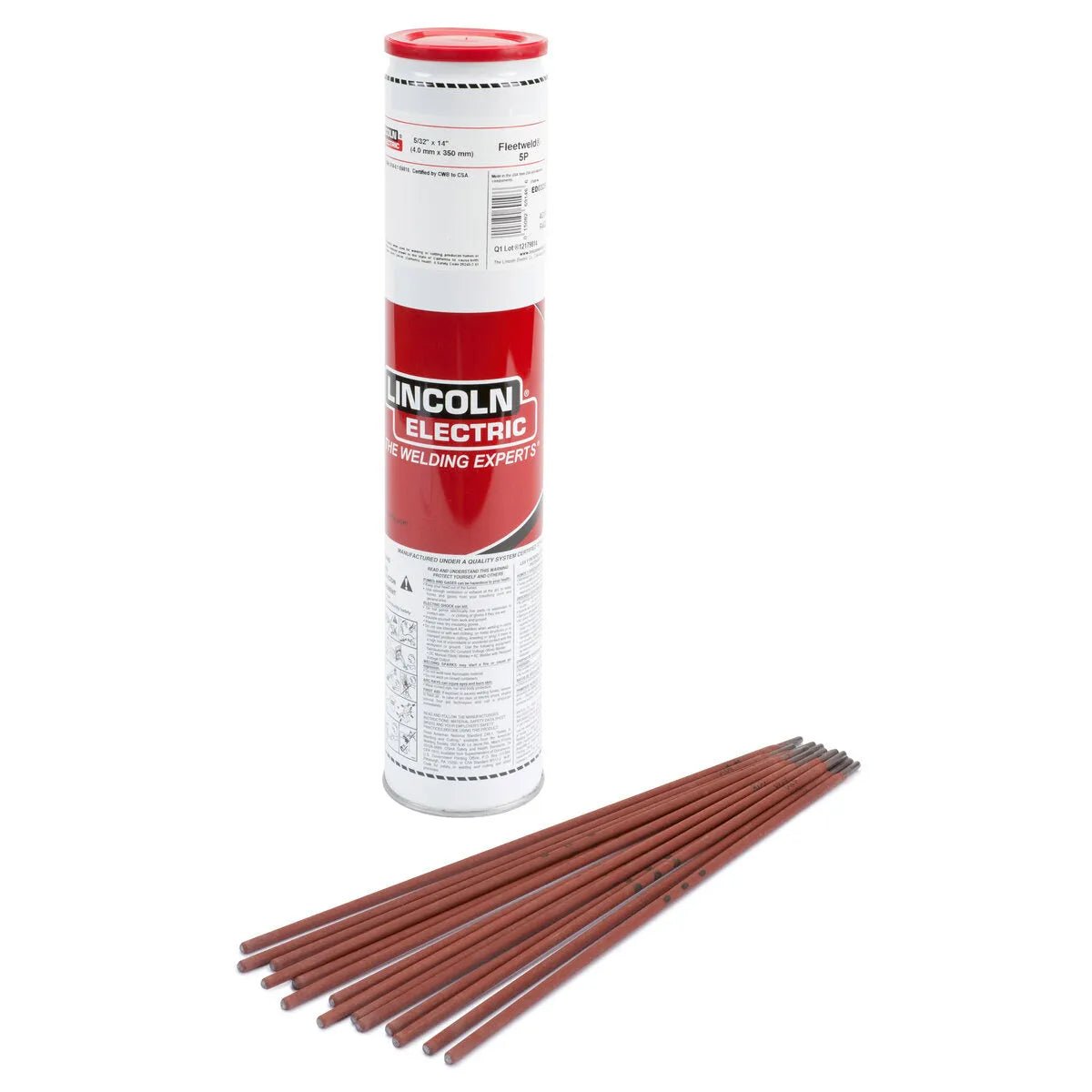

Lincoln ED032562 Fleetweld 5P Stick SMAW Electrode 1/8X14in 3 10 lb Easy Open Cans

SKU: ED032562
$203.85 $226.50
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Fleetweld 5P is a mild steel, cellulosic stick welding rod that meets AWS E6010 typically used in cross country and in-plant pipe welding.
AWS / Classification: E6010
Overview
Lincoln ED032562 Fleetweld 5P Stick SMAW Electrode, 1/8x14 in, 3 10 lb Easy Open Cans

Fleetweld 5P is a mild steel, cellulosic stick electrode that features deep arc penetration, light slag, and excellent vertical and overhead capability. Ideal for cross country and in-plant pipe-welding, steel with moderate surface contaminants, square edge butt welds, and galvanized and specially coated steel welding applications.

Features

• Deep arc penetration
• Light slag with minimal arc interference
• Excellent vertical and overhead capability

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.1 E6010
ABS AWS A5.1 E6010
CWB CSA W48 E4310
LR LR - Chapter 11 3M
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E6010 Requirement 330 (48) min.410 (60) min.22 min.27 (20) min.
Typical Result, As-welded 380-470 (56-68)460-560 (67-82)22-3232-118 (23-87)
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%V
E6010 Requirement 0.20 max.0.20 max.1.20 max.0.30 max.0.30 max.1.00 max.0.08 max.
Typical Result 0.10-0.130.05 max.0.35-0.600.01 max.0.03 max.0.004-0.0120.004-0.0120.14-0.390.01 max.
Diameter Polarity⁽¹⁾Current, Amps
3/32 in (2.4 mm) DC+40-80
3/32 in (2.4 mm) DC-50-85
1/8 in (3.2 mm) DC+70-130
1/8 in (3.2 mm) DC-75-135
5/32 in (4.0 mm) DC+90-165
5/32 in (4.0 mm) DC-100-175
3/16 in (4.8 mm) DC+140-225
3/16 in (4.8 mm) DC-–
7/32 in (5.6 mm) DC+200-275
7/32 in (5.6 mm) DC-–
1/4 in (6.4 mm) DC+220-325
1/4 in (6.4 mm) DC-–
Note
⁽¹⁾ Preferred polarity is listed first.
LECO Diameter 1/8 x 14 in (3.2 x 350 mm)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 1/8
Length (in) 14
