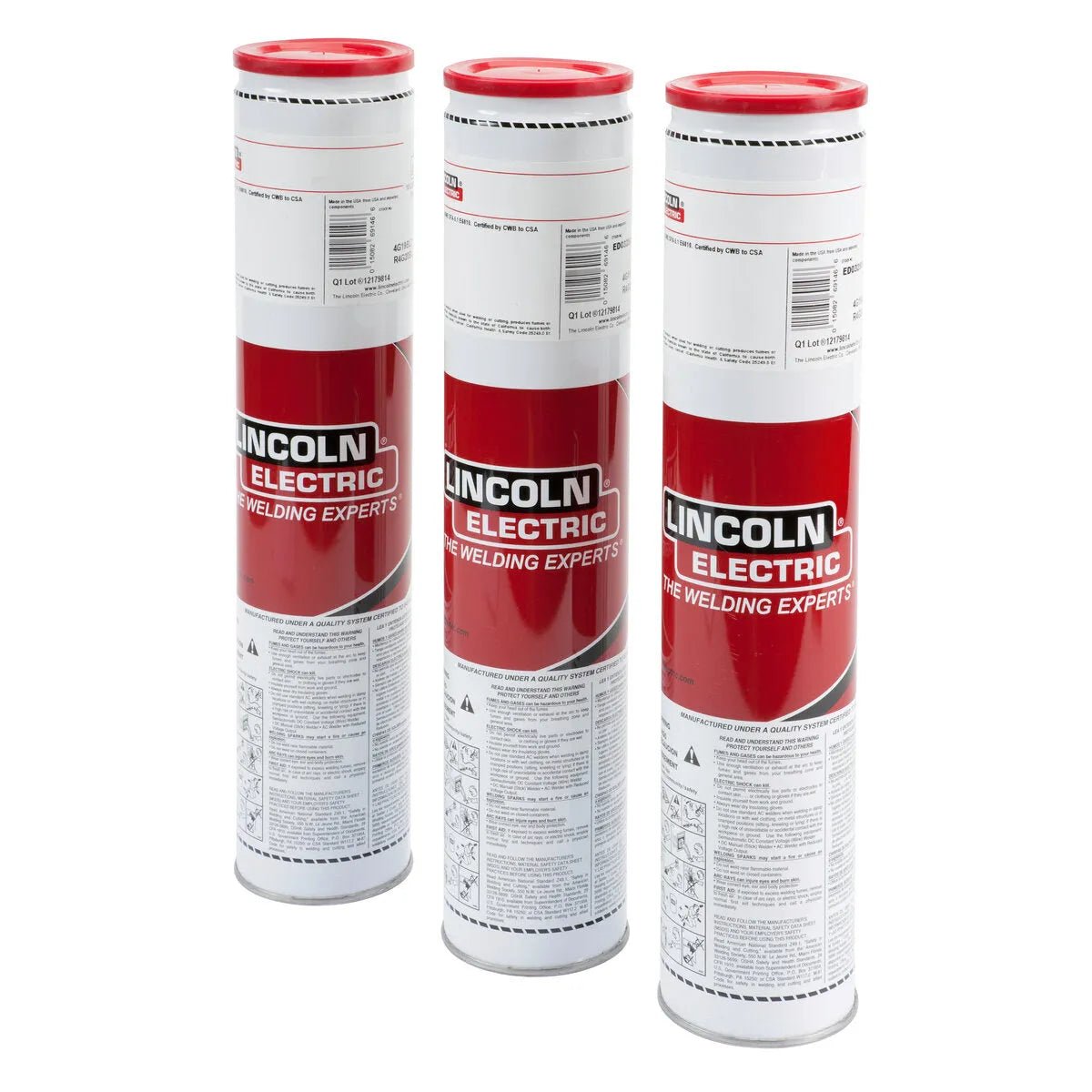

Lincoln ED032623 Pipeliner 19P Stick SMAW Welding Rod 5/32 14in 3 10 lb Easy Open Cans

SKU: ED032623
$231.80
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Low Alloy, Low Hydrogen, Pipe • AWS E10018-G H4R
AWS / Classification: E10018-G H4R
Overview
Lincoln ED032623 Pipeliner 19P Stick SMAW Welding Rod, 5/32 14 in, 3 10 lb Easy Open Cans

Low alloy stick electrode designed for vertical up fill and cap pass welding of up to X80 grade pipe

Features
  • Q2 Lot® - Control and Tested - Lot certificate available online
  • Charpy V-Notch impact toughness tested to -46°C (-50°F)
  • vertical up capability on X80 grade pipe

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.5E10018-G-H4R
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -45°C (-50°F)
E10018-G-H4R Requirement 600 (87) min.690 (100) min.16 min.
Typical Result, As-welded 660-750 (95-109)730-800 (106-115)21-2873-125 (54-92)
Classification %B%C%Cr%Cu%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal1800F H2O - As received1800F H2O - After 9 hrs at 80F/80%RH
E10018-G-H4R Requirement 0.30 min. *0.20 min. *1.00 min. *0.20 min. *0.50 min. *0.03 max.0.03 max.0.80 min. *0.10 min. *4 max.0.15 max.0.4 max.
Typical Result 0.0002 max.0.038-0.0490.02-0.040.01-0.071.54-1.890.42-0.452.06-2.280.010.010.40-0.540.01 max.1-30.02-0.100.1-0.3
Diameter Polarity⁽¹⁾Current, Amps
3.2 mm (1/8 in) DC+80-155
3.2 mm (1/8 in) AC80-160
4.0 mm (5/32 in) DC+130-210
4.0 mm (5/32 in) AC140-215
Note
* To meet the requirements of a "G" classification, the chemical composition of the weld deposit must meet the minimum requirement for one or more of these elements.
⁽¹⁾ Preferred polarity is listed first.
LECO Diameter 4.0 x 350 mm (5/32 x 14 in)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 5/32
Length (in) 14
