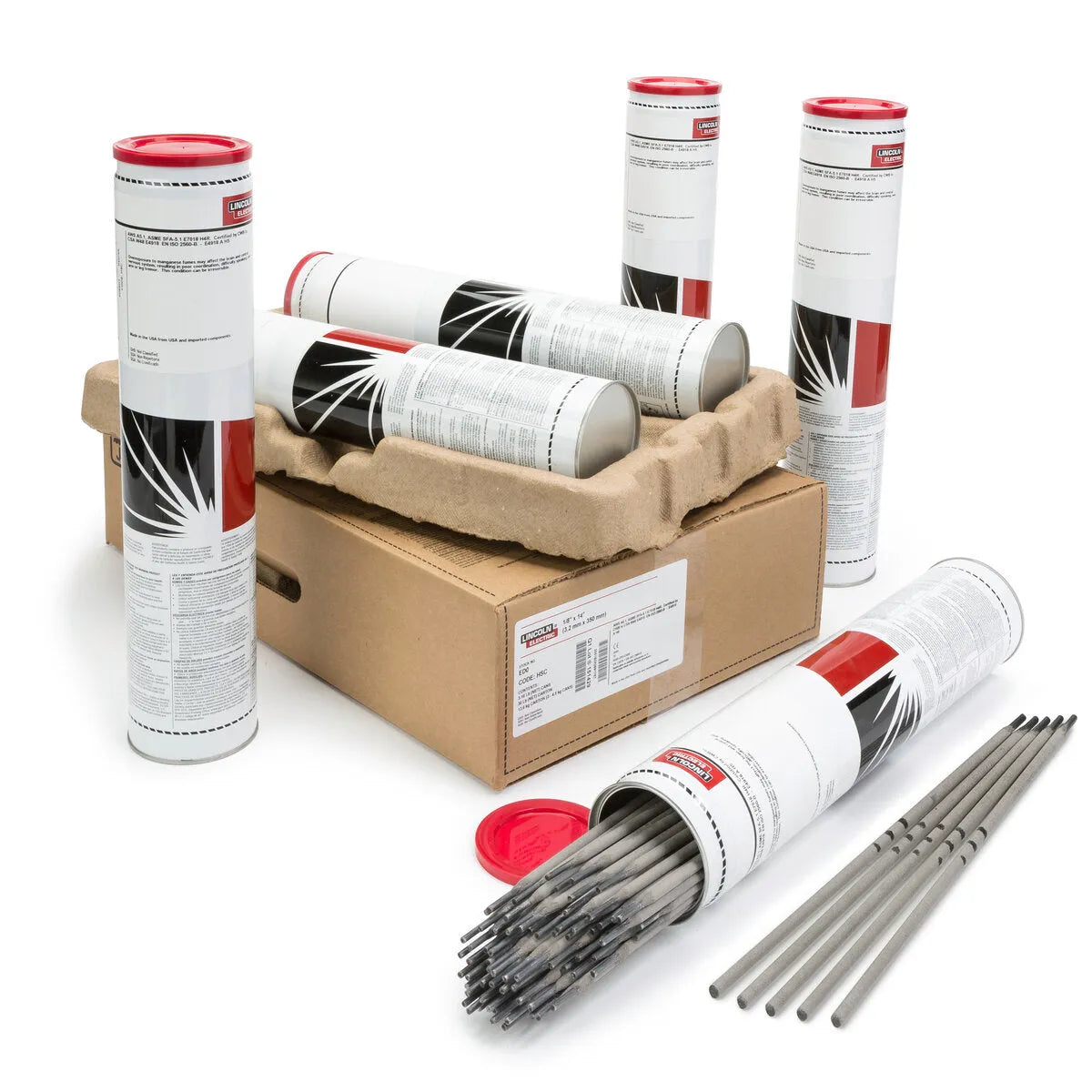

Lincoln Pipeliner LH-D80 Stick Electrode - 1/8 x 14 in - 30 lb Carton (3 x 10 lb Easy Open Cans) - ED032626

SKU: ED032626
$455.70
Lincoln Elite Dealer
Free Shipping
Lowest Price
Low Alloy, Low Hydrogen, Pipe • AWS E8045-P2 H4R
AWS / Classification: E8045-P2 H4R
Overview
Lincoln ED032626 Pipeliner LH-D80 Stick SMAW Welding Rod, 1/8 14 in, 3 10 lb Easy Open Cans

Low alloy, low hydrogen stick electrode designed for vertical down fill and cap pass welding of up to X70 grade pipe

Features
  • Q2 Lot® - Control and Tested - Lot certificate available online
  • Durable coating
  • NACE MR0175 compliant for sour gas applications
  • 80% higher productivity over traditional vertical-up pipe welding
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.5E8045-P2 H4R
AllByProd NACENACE Applications
ABS AWS A5.5E8045-P2 H4R
CWB CWB AWS A5.5E5545-P2-H4R (E8045-P2-H4R)
Classification Yield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Hardness Rockwell B
E8045-P2 H4R Requirement 460 (67) min.550 (80) min.19 min.27 (20) min.
Typical Result, As-welded 470-530 (68-76)560-590 (81-85)26-3054-163 (40-120)27-147 (20-108)88-91
Classification %B%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal1800F H2O - As received1800F H2O - After 9 hrs at 80F/80%RH
E8045-P2 H4R Requirement 0.12 max.0.20 max.0.90 - 1.700.50 max.1.00 max.0.03 max.0.03 max.0.80 max.0.05 max.4 max.0.2 max.0.4 max.
Typical Result 0.005-0.0080.04-0.060.03-0.051.14-1.540.02 max.0.01-0.030.010.01 max.0.43-0.600.012-40.1 max.0.4 max.
Diameter PolarityCurrent, Amps
3.2 mm (1/8 in) DC+120-170
4.0 mm (5/32 in) DC+170-250
4.5 mm (11/64 in) DC+200-300
Note
NOTE: This product contains micro-alloying elements. Additional information available on request.
LECO Diameter 3.2 x 355 mm (1/8 x 14 in)
LECO Package (3) 10 lb Easy Open Can
Diameter (in) 1/8
Length (in) 14
Includes
  • (3) 10 lb Easy Open Can
