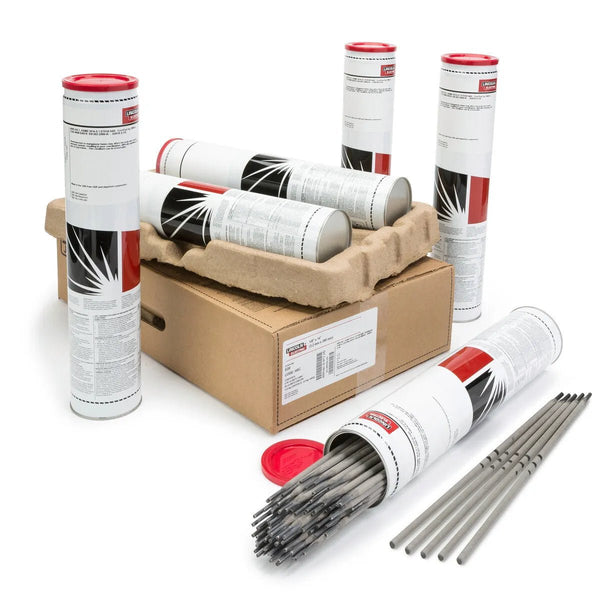

Lincoln Pipeliner LH-D100 in 5/32 in x 14 in, packaged as a 3-pack of 10 lb easy-open cans for the applications described on the Lincoln Pipeliner LH-D100 family page. Same AWS A5.5/A5.5M E10045-P2 classification as every other size in this product line, packaged in this format for shop and field crews running this diameter.
| Manufacturer SKU | ED032634 |
|---|---|
| Diameter | 5/32 in |
| Length | 14 in |
| Package | 3-pack of 10 lb easy-open cans |
| Net weight | 10 lb each (30 lb total) |
| Approx. rods per package | ~34 per 10 lb container (~102 total) |
| Recommended amperage (this diameter) | 120-210 A |
| AWS classification | AWS A5.5/A5.5M E10045-P2 |
E10045-P2 is an AWS A5.5 low-alloy low-hydrogen iron-powder basic-coated SMAW electrode with 100 ksi minimum tensile, classified specifically for pipeline construction (P designator) with vertical-down capability. Engineered for downhill fill and cap passes on the highest-strength API 5L X80 and X100 grade pipe with strict low-hydrogen requirements for sour service and arctic pipeline applications. DC+ in all positions.
Is this the same electrode as the parent Lincoln Pipeliner LH-D100 grade, just in a different package?
Yes. SKU ED032634 is the same AWS A5.5/A5.5M E10045-P2 classification as every other size in the Lincoln Pipeliner LH-D100 family. The only difference is diameter (5/32 in) and package format (3 x 10 lb easy-open cans). Polarity, position, and tensile properties are identical to the parent grade.
How many rods are in this 3 x 10 lb easy-open cans?
Approximately ~34 per 10 lb container (~102 total). Exact count varies with manufacturing tolerance but a 3 x 10 lb easy-open cans of 5/32 in Lincoln Pipeliner LH-D100 typically contains in this range.
What is the shelf life if I do not use them all?
Sealed cans have an indefinite shelf life when stored unopened in a dry environment. Once opened, low-hydrogen rods exposed beyond 4 hours of atmospheric humidity should be rebaked at 500-800 F for 1-2 hours or stored in a heated rod oven at 250-300 F to restore full code performance.
What diameter should I use for common applications?
5/32 in is well-suited for flat and horizontal fill on heavier plate and structural welds. Heavier base metal and higher deposition typically calls for one diameter up; thinner sheet and root passes go one diameter down. See the parent grade page for full diameter-to-amperage guidance.
Can I mix this size with other diameters on the same job?
Yes, provided your procedure qualification (WPS) covers the diameter range. Many shops use one diameter for root, one for fill, and one for cap. All sizes within Lincoln Pipeliner LH-D100 share identical mechanical properties (AWS A5.5/A5.5M E10045-P2) so weld metal chemistry is consistent across passes.
Do I need to rebake these after the can is opened?
Yes for code-quality work. Per AWS D1.1 and most pressure-vessel codes, low-hydrogen electrodes exposed to atmosphere beyond 4 hours must be rebaked at 500-800 F for 1-2 hours or stored in a heated rod oven at 250-300 F to restore full code performance.
Does this size require a special holder or stinger?
Use an electrode holder rated for the amperage range above (120-210 A). Most general-purpose stinger holders (e.g. 300-500 A class) handle 5/32 in Lincoln Pipeliner LH-D100 without issue. For sustained high-amperage runs on larger diameters, a 500 A or higher holder is recommended.
Is this Buy America compliant?
This specific SKU is not the Buy America variant. Lincoln Pipeliner LH-D100 may be available in a Buy America compliant version - see the parent grade page for all available compliance variants.
