Lincoln Electric Lincolnweld ED032767 Submerged Arc Wire – 2600 lb

SKU: ED032767
$8,046.01 $8,320.00

Financing Options

•
As low as …/mo with.
•
Loading Affirm Estimate…
Lincoln Elite Dealer
Free Shipping
Lowest Price
Flux for Seam Welding of Pipe
Overview

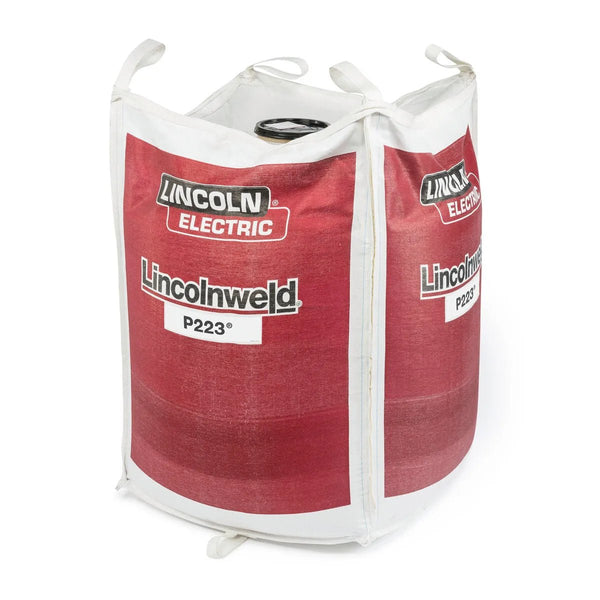

Lincoln ED032767 Lincolnweld P223 Submerged Arc SAW Flux, 2600 lb Bulk Bag

Features

  • Industry standard for pipe welding on up to X80 grade pipe
  • Fast freezing and easily removable slag for excellent bead profile
  • Can be used for welding with up to three arcs



Specifications
FeatureValue
Wire ClassificationPostweld Heat TreatmentYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -50°C (-60°F)Charpy V-Notch, J (ft-lbs) @ -62°C (-80°F)
Lincolnweld® L-56® F7A6-EH11K-H8As-welded520 (75)630 (91)2942 (31)
Lincolnweld® L-56® F7P6-EH11K-H81 hour @ 620°C (1150°F)430 (62)570 (82)31117 (86)
Lincolnweld® L-61® F7A4-EM12K-H8As-welded410 (59)490 (71)31264 (195)
Lincolnweld® LA-71 F7A4-EM14K-H8As-welded480 (70)570 (83)25115 (85)
Lincolnweld® LA-71 F7P6-EM14K-H81 hour @ 620°C (1150°F)440 (64)570 (82)30103 (76)
Lincolnweld® LA-81 (LNS 140TB) F8TA4G-EGAs-welded520 (76)670 (97)2641 (30)
Lincolnweld® LA-90 F9A0-EA3K-GAs-welded590 (86)680 (99)29141 (104)
Lincolnweld® LA-90 F9TA2G-EA3K630 (91)710 (103)22125 (92)
Lincolnweld® LA-90 F9TA4G-EA3K650 (94)740 (108)22115 (85)
Lincolnweld® L-S3 (LNS133U,L50M) F7A8-EH12K-H8As-welded470 (68)570 (83)3075 (55)
Wire Classification%B%C%Cu%Mn%Mo%P%S%Si%TiDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® L-56® F7A6-EH11K-H80.070.071.890.0110.0050.903
Lincolnweld® L-56® F7P6-EH11K-H80.050.071.800.0100.0050.903
Lincolnweld® L-61® F7A4-EM12K-H80.050.051.230.0110.0090.394
Lincolnweld® LA-71 F7A4-EM14K-H80.070.121.440.0110.0090.650.033
Lincolnweld® LA-71 F7P6-EM14K-H80.060.121.460.0110.0080.660.023
Lincolnweld® LA-90 F9A0-EA3K-G0.00000.080.091.900.440.0120.0050.80
Lincolnweld® L-S3 (LNS133U,L50M) F7A8-EH12K-H80.070.111.680.0110.0080.513
Classification %Al2O3%CaF2%CaO%FeO%K2O%MgO%MnO%Na2O%SiO2%TiO2%Metal Alloys
Typical Result 202131120632323
LECO Diameter Flux
LECO Package 2600 lb Bulk Bag
Includes
  • (1) 2600 lb Bulk Bag
