Lincoln Electric | SKU: ED032834

Lincoln ED032834 Blue Max 308LSi MIG GMAW Welding, 0.035 in, 1000 lb Precise-Trak Reel

$14,110.00

BLUE MAX® MIG 308LSI is designed for use with 304 and 304L stainless steels base metals

Warranty: 1 Year

AWS / Classification: AWS ER308Si, ER308LSi

Financing / Leasing Available

Welding Equipment And Industrial Supplies Financing

Welding Mart has partnered with Clicklease to provide industry-leading welding equipment for a low monthly payment customized to fit your budget. Our welder financing services allow professionals to outfit their shop with the right welding machines and systems to serve customers. Whether you need a new MIG welder, a rental TIG welder, a virtual welding training simulator or something else, rent-to-own welders from leading brands such as Lincoln Electric and Miller are a great solution.

It's never been easier to afford the equipment you need to grow your business.
Apply in just four minutes and get real approval in seconds - there's no hard credit pull and no documents are needed.

Benefits of Lease-to-Own Welders

A welding machine rental is great for short-term and long-term business needs. Welder leases and rentals let companies stay on top of the latest welding technology without draining their operating budget by paying upfront, in full for new machines. At the end of the lease period, you can either purchase the welding equipment outright or return it to WeldingMart. You can also buy the equipment anytime within the first year of your lease - see below for more details.

Welder rentals can also have tax benefits. In many cases, the payments you make when you lease or finance a welding machine for business or educational purposes are tax-deductible. This frees up even more resources to get the equipment, supplies and personnel that welding businesses need.



More Information

Welding machine financing is available 24/7 so you can apply whenever it's convenient for you. It will only take about four minutes of your time.

Once approved, you'll have the option to select the term that best fits your budget and, if approved for more than you request, our calculator makes it easy to see how your payments change for any additional items you add to your lease. eDocs are available immediately, allowing you to order your new gear within minutes.

Have additional questions? Contact us to speak with a member of the WeldingMart team.

DETAILS

Lincoln ED032834 Blue Max 308LSi MIG GMAW Welding, 0.035 in, 1000 lb Precise-Trak Reel

BLUE MAX® MIG 308LSi has a higher silicon level than a standard 308L which gives increased puddle fluidity and toe wetting allowing for potentially high travel speeds

Features

Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
High silicon level for increased puddle fluidity and toe wetting
Versatile electrode designed to weld CrNi austenitic stainless steels
Used to primarily weld equipment made with 304 type stainless steel
Higher silicon content improves wetting of the weld metal and potentially higher travel speeds compared to standard 308L products

Lincoln ED032834 Blue Max 308LSi MIG GMAW Welding, 0.035 in, 1000 lb Precise-Trak Reel

BLUE MAX® MIG 308LSi has a higher silicon level than a standard 308L which gives increased puddle fluidity and toe wetting allowing for potentially high travel speeds

Features

Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
High silicon level for increased puddle fluidity and toe wetting
Versatile electrode designed to weld CrNi austenitic stainless steels
Used to primarily weld equipment made with 304 type stainless steel
Higher silicon content improves wetting of the weld metal and potentially higher travel speeds compared to standard 308L products

Includes

What's Included

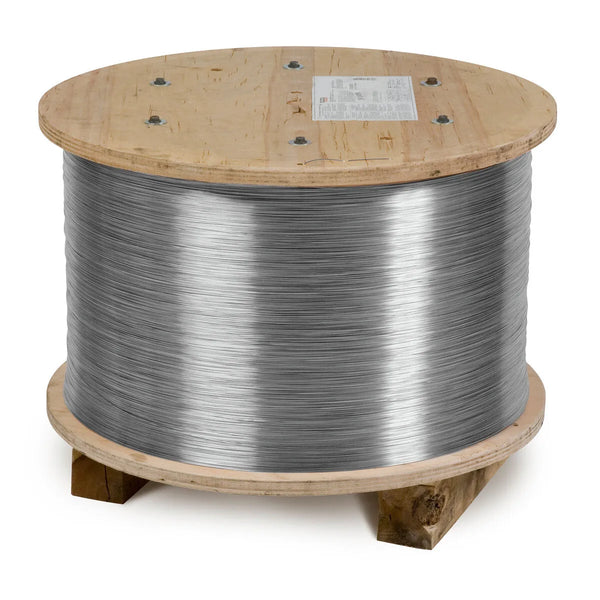

(1) 1000 lb Precise-Trak® Reel

Specifications

CONFORMANCE

CONFORMANCES	SPECIFICATION	CLASSIFICATION
AWS	AWS A5.9	ER308LSi, ER308Si
ABS	AWS A5.9	ER308LSi, ER308Si

MECHANICAL PROPERTIES

Classification	Shielding Gas	Yield Strength @ 0.2% Offset, MPa (ksi)	Tensile Strength, MPa (ksi)	Elongation, %	Charpy V-Notch, J (ft-lbs) @ -60°C (-76°F)
Typical Result	98% Ar, 2% O2	430 (63)	620 (90)	35	75 (55)

WIRE COMPOSITION

Classification	%C	%Cr	%Cu	%Mn	%Mo	%N	%Nb	%Ni	%P	%S	%Si	%Ti	Ferrite Number (Delong ©)	Ferrite Number (WRC-1992 ©)
ER308LSi Requirement	0.03 max.	19.5 - 22.0	0.75 max.	1.0 - 2.5	0.75 max.			9.0 - 11.0	0.03 max.	0.03 max.	0.65 - 1.00
ER308Si Requirement	0.08 max.	19.5 - 22.0	0.75 max.	1.0 - 2.5	0.75 max.			9.0 - 11.0	0.03 max.	0.03 max.	0.65 - 1.00
Typical Result	0.02	19.9-20.1	0.10	1.7-2.0	0.08	0.06	0.03 max.	9.6-10.7	0.03	0.01	0.75-0.93	0.01	12	11

TYPICAL OPERATING PROCEDURES

Diameter	Transfer Mode	Shielding Gas	Polarity	CTWD, mm (in.)⁽¹⁾	Wire Feed Speed, m/min (in/min)	Voltage, volts	Approx. Current, amps	Deposition Rate, kg/hr (lb/hr)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	3.0 (120)	19-20	55	0.9 (2.0)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	4.6 (180)	19-20	85	1.4 (3.0)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	5.8 (230)	20-21	105	1.8 (3.9)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	7.6 (300)	20-21	125	2.3 (5.0)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	8.9 (350)	21-22	140	2.7 (5.9)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	10.2 (400)	22-23	160	3.1 (6.7)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	2.5 (100)	19-20	100	1.1 (2.8)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	3.2 (125)	19-20	120	1.5 (3.5)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	3.8 (150)	21	135	1.7 (4.2)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	4.4 (175)	21	140	2.0 (4.8)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	5.6 (220)	22	170	2.6 (6.1)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	6.4 (250)	22-23	175	2.9 (6.9)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	7.0 (275)	22-23	185	3.2 (7.6)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	10.2 (400)	22	180	3.1 (6.7)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	10.8 (425)	23	190	3.3 (7.1)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	11.4 (450)	23	200	3.5 (7.5)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	12.1 (475)	23	210	3.7 (8.0)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	6.1 (240)	23	195	2.8 (6.6)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	6.6 (260)	24	230	3.0 (7.2)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	7.6 (300)	24	240	3.5 (8.3)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	8.3 (325)	25	250	3.8 (9.0)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	9.1 (360)	25	260	4.2 (10.0)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	4.4 (175)	25	260	4.3 (9.2)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	5.1 (200)	26	310	4.9 (10.5)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	6.4 (250)	26	330	6.2 (13.1)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	7.0 (275)	27	360	6.8 (14.4)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	7.6 (300)	28	390	7.4 (15.8)

LECO Diameter	0.035 in (0.9 mm)
LECO Package	1000 lb Precise-Trak® Reel
Diameter (in)	0.035

Lincoln ED032834 Blue Max 308LSi MIG GMAW Welding, 0.035 in, 1000 lb Precise-Trak Reel

BLUE MAX® MIG 308LSi has a higher silicon level than a standard 308L which gives increased puddle fluidity and toe wetting allowing for potentially high travel speeds

Features

Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
High silicon level for increased puddle fluidity and toe wetting
Versatile electrode designed to weld CrNi austenitic stainless steels
Used to primarily weld equipment made with 304 type stainless steel
Higher silicon content improves wetting of the weld metal and potentially higher travel speeds compared to standard 308L products

Lincoln ED032834 Blue Max 308LSi MIG GMAW Welding, 0.035 in, 1000 lb Precise-Trak Reel

BLUE MAX® MIG 308LSi has a higher silicon level than a standard 308L which gives increased puddle fluidity and toe wetting allowing for potentially high travel speeds

Features

Q2 Lot® - Certified Material Test Report showing actual wire composition, Country of Origin and calculated ferrite number (FN) of each lot is available online in the Certificate Center
Proprietary surface lubricant for steady feeding and arc stability leading to exceptional performance at high wire feed speeds
High silicon level for increased puddle fluidity and toe wetting
Versatile electrode designed to weld CrNi austenitic stainless steels
Used to primarily weld equipment made with 304 type stainless steel
Higher silicon content improves wetting of the weld metal and potentially higher travel speeds compared to standard 308L products

CONFORMANCE

CONFORMANCES	SPECIFICATION	CLASSIFICATION
AWS	AWS A5.9	ER308LSi, ER308Si
ABS	AWS A5.9	ER308LSi, ER308Si

MECHANICAL PROPERTIES

Classification	Shielding Gas	Yield Strength @ 0.2% Offset, MPa (ksi)	Tensile Strength, MPa (ksi)	Elongation, %	Charpy V-Notch, J (ft-lbs) @ -60°C (-76°F)
Typical Result	98% Ar, 2% O2	430 (63)	620 (90)	35	75 (55)

WIRE COMPOSITION

Classification	%C	%Cr	%Cu	%Mn	%Mo	%N	%Nb	%Ni	%P	%S	%Si	%Ti	Ferrite Number (Delong ©)	Ferrite Number (WRC-1992 ©)
ER308LSi Requirement	0.03 max.	19.5 - 22.0	0.75 max.	1.0 - 2.5	0.75 max.			9.0 - 11.0	0.03 max.	0.03 max.	0.65 - 1.00
ER308Si Requirement	0.08 max.	19.5 - 22.0	0.75 max.	1.0 - 2.5	0.75 max.			9.0 - 11.0	0.03 max.	0.03 max.	0.65 - 1.00
Typical Result	0.02	19.9-20.1	0.10	1.7-2.0	0.08	0.06	0.03 max.	9.6-10.7	0.03	0.01	0.75-0.93	0.01	12	11

TYPICAL OPERATING PROCEDURES

Diameter	Transfer Mode	Shielding Gas	Polarity	CTWD, mm (in.)⁽¹⁾	Wire Feed Speed, m/min (in/min)	Voltage, volts	Approx. Current, amps	Deposition Rate, kg/hr (lb/hr)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	3.0 (120)	19-20	55	0.9 (2.0)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	4.6 (180)	19-20	85	1.4 (3.0)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	5.8 (230)	20-21	105	1.8 (3.9)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	7.6 (300)	20-21	125	2.3 (5.0)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	8.9 (350)	21-22	140	2.7 (5.9)
0.035 in (0.9 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	10.2 (400)	22-23	160	3.1 (6.7)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	2.5 (100)	19-20	100	1.1 (2.8)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	3.2 (125)	19-20	120	1.5 (3.5)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	3.8 (150)	21	135	1.7 (4.2)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	4.4 (175)	21	140	2.0 (4.8)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	5.6 (220)	22	170	2.6 (6.1)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	6.4 (250)	22-23	175	2.9 (6.9)
0.045 in (1.1 mm)	Short Circuit Transfer	90% He / 7.5% Ar / 2.5% CO2	DC+	13 (1/2)	7.0 (275)	22-23	185	3.2 (7.6)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	10.2 (400)	22	180	3.1 (6.7)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	10.8 (425)	23	190	3.3 (7.1)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	11.4 (450)	23	200	3.5 (7.5)
0.035 in (0.9 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	12.1 (475)	23	210	3.7 (8.0)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	6.1 (240)	23	195	2.8 (6.6)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	6.6 (260)	24	230	3.0 (7.2)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	7.6 (300)	24	240	3.5 (8.3)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	8.3 (325)	25	250	3.8 (9.0)
0.045 in (1.1 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	13 (1/2)	9.1 (360)	25	260	4.2 (10.0)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	4.4 (175)	25	260	4.3 (9.2)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	5.1 (200)	26	310	4.9 (10.5)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	6.4 (250)	26	330	6.2 (13.1)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	7.0 (275)	27	360	6.8 (14.4)
1/16 in (1.6 mm)	Axial Spray Transfer	98% Ar / 2% O2	DC+	19 (3/4)	7.6 (300)	28	390	7.4 (15.8)

LECO Diameter	0.035 in (0.9 mm)
LECO Package	1000 lb Precise-Trak® Reel
Diameter (in)	0.035
