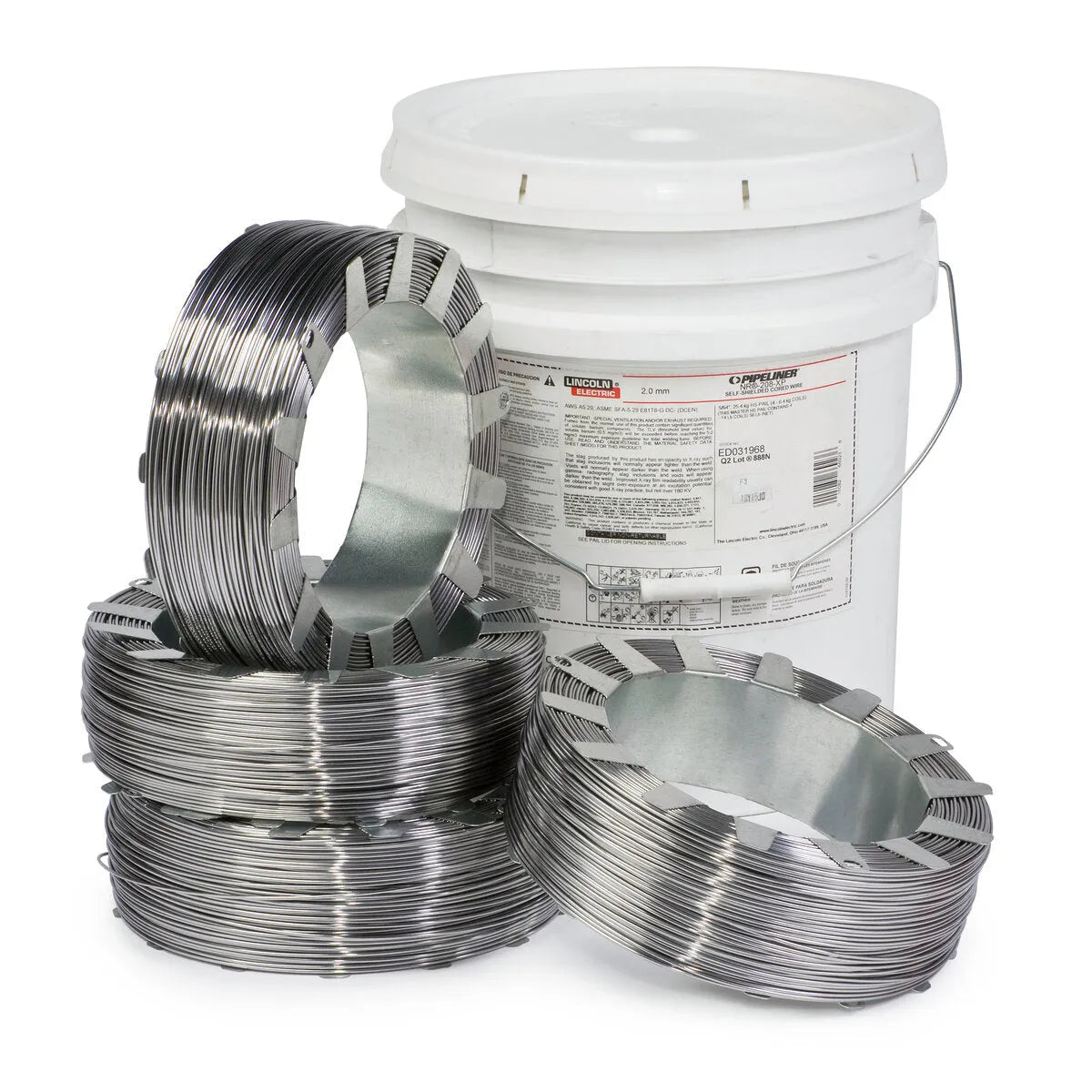

Lincoln ED032890 Pipeliner NR-208-P Flux-Cored FCAW-S Welding Wire, 5/64 in, 4 14 lb Coils

SKU: ED032890
$530.21 $649.60

Financing Options

•
Loading Affirm Estimate…
•
Lease-To-Own From $24/mo — 24-Mo Term, No Hard Credit Check
Lincoln Elite Dealer
Free Shipping
Lowest Price
Pipeliner® NR®-208-P from Lincoln Electric is recommended for hot, fill and cap pass welding of up to X80 grade pipe.
AWS / Classification: E81T8-G
Overview

Has the portability of stick electrode and the productivity of wire. It is capable of producing impact values of 27 J (20 ft·lbf) @ -29°C (-20°F). Recommended for hot, fill and cap pass welding of up to X80 grade pipe.

Features
  • Vertical down hot, fill and cap pass welding of up to X80 grade pipe
  • Designed to meet 27 J (20 ft-lbf) @ 0°C (32°F) in pipe applications
  • ProTech® hermetically sealed packaging
  • Designed to accommodate applications requiring Nickel content of 1% max
  • Excellent operator appeal for pipe applications

Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.29E81T8-G-H8
AWS AWS A5.36E81T8-A2-K11-H8
AllByProd NACENACE Applications
Classification PolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)
E81T8-G-H8 Requirement DC-470 (68) min.550-690 (80-100)19 min.
E81T8-A2-K11-H8 Requirement DC-470 (68) min.550-690 (80-100)19 min.27 (20) min.
Typical Result, As-welded DC-510 (74)600 (87)29132-185 (98-136)
Classification Polarity%Al%C%Cr%Mn%Mo%Ni%P%S%Si%VDiffusible Hydrogen, mL/100g Weld Metal
E81T8-G-H8 Requirement DC-1.8 max.Info. Only0.30 min. *0.50 min. *0.20 min. *0.50 min. *0.030 max.0.030 max.1.00 max.0.10 min. *8.0 max.
E81T8-A2-K11-H8 Requirement DC-1.8 max.0.15 max.0.20 max.1.00 - 2.500.50 max.0.40 - 1.000.030 max.0.030 max.0.80 max.0.05 max.8 max.
Typical Result DC-1.10.040.071.870.010.860.0090.00 max.0.260.005 max.4.3
Diameter PolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)Deposition Rate, kg/hr (lb/hr)Efficiency, %
2.0 mm (5/64 in) DC-19 (3/4)1.7-3.3 (70-130)18-21210-3051.8-3.5 (4.0-7.6)1.5-2.9 (3.3-6.4)82-83
Note
* To meet the requirements of a "G" classification, the chemical composition of the weld deposit must meet the minimum requirement for one or more of these elements.
⁽¹⁾ For electrical stickout (ESO) subtract 6.4 mm (1/4 in) from contact tip to work distance (CTWD).
LECO Diameter 2.0 mm (5/64 in)
LECO Package (4) 14 lb Coil
Diameter (in) 5/64
Includes
  • (4) 14 lb Coil
