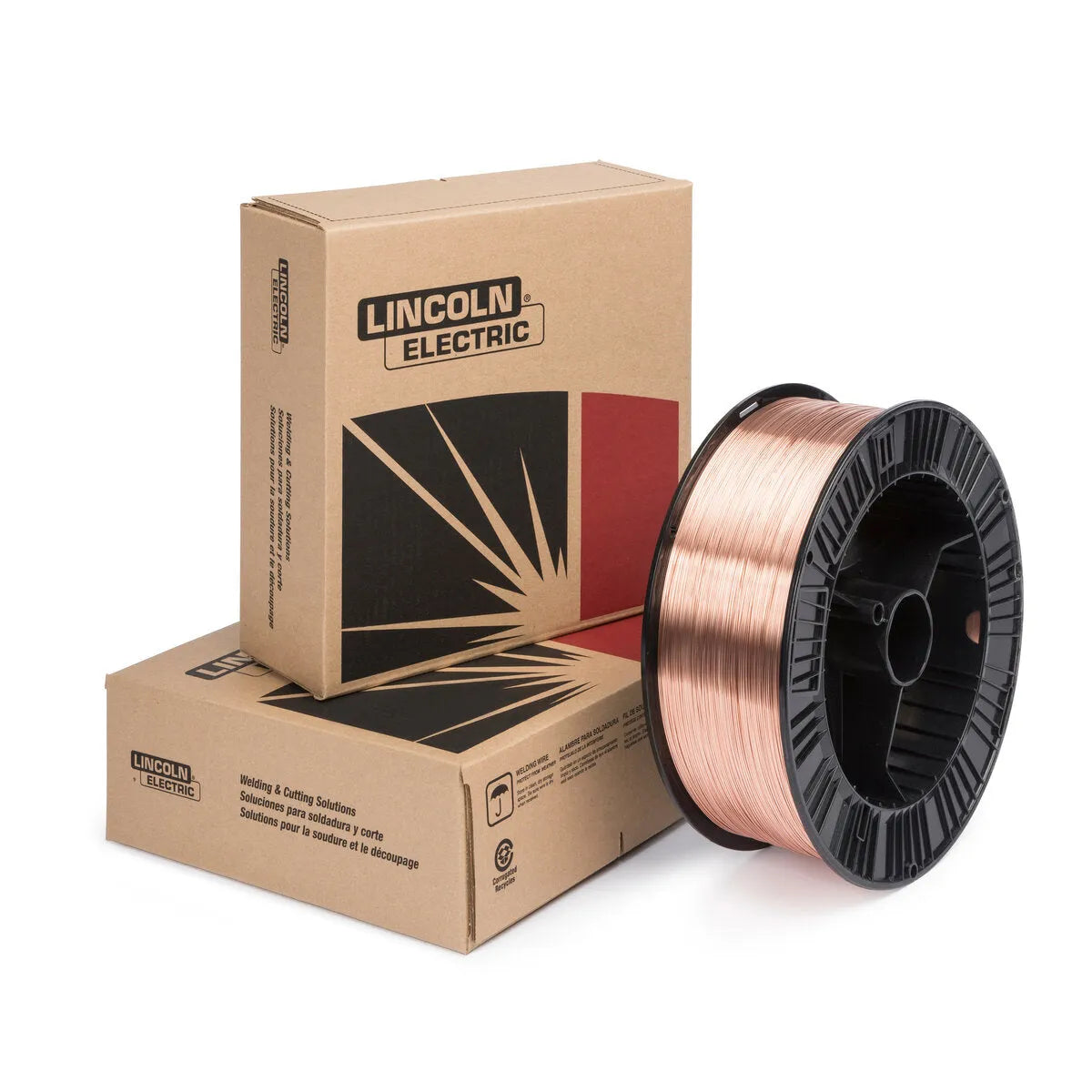

Lincoln ED032926 SuperArc L-56 MIG GMAW Mild Steel Welding Wire, 0.030 in, 33 lb Plastic Spool

SKU: ED032926
$182.50 $216.15
Financing / Leasing Available

Welding Equipment & Industrial Supply Financing

WeldingMart has partnered with Clicklease to offer fast, flexible financing for welding equipment and industrial supplies. Get the equipment you need with affordable monthly payments tailored to your budget.

Whether you're purchasing a new MIG welder, TIG welder, engine-driven welder, or welding accessories, our financing solutions help you equip your shop without large upfront costs. We offer lease-to-own options on trusted brands like Lincoln Electric, Miller Electric, and more.

Apply in minutes and get a decision in seconds:

  • No hard credit check
  • No lengthy paperwork
  • Fast approvals

Why Choose Lease-to-Own Welding Equipment?

Lease-to-own financing gives you the flexibility to grow your business while preserving cash flow.

Key benefits include:

  • Low upfront cost – Start using equipment without a large initial investment
  • Flexible terms – Choose payment plans that fit your budget
  • Access to latest technology – Stay competitive with modern welding equipment
  • Ownership options – Buy the equipment, upgrade, or return it at the end of the lease

You also have the option to purchase your equipment early, including within the first 12 months.

Tax Advantages

In many cases, lease payments for business-use equipment may be tax-deductible. This can reduce your overall cost and free up capital for additional tools, supplies, or labor.

(Consult your tax advisor for details.)

Apply in Minutes

Financing is available 24/7, so you can apply whenever it’s convenient.

  • Application takes about 4 minutes
  • Instant decision in most cases
  • Immediate access to eDocs
  • Order your equipment right away

If approved for more than your initial request, you can easily adjust your financing to include additional items.

Need Help?

Have questions about financing or lease-to-own options?

Contact the WeldingMart team — we’re here to help you find the right solution for your business. 877-532-9353.


SuperArc® L-56® is Lincoln Electric's premium copper coated MIG Welding wire and an excellent choice for welding on metals with a medium to high presence of millscale.
AWS / Classification: ER70S-6
Overview

  • Lincoln's premium copper coated MIG wire, SuperArc® L-56® is an excellent choice for welding on metals with a medium to high presence of millscale.

    Features
    • High levels of manganese and silicon deoxidizers tolerate medium to heavy mill scale surfaces
    • Excellent toe-wetting provides optimal bead appearance
    • Copper coated for long contact tip life
    • Supports short-circuiting, globular, axial spray and pulsed spray transfer
    • Available to meet Buy America. Choose a Buy America MTS product from the list of
Specifications
FeatureValue
CONFORMANCES SPECIFICATIONCLASSIFICATION
AWS AWS A5.18 ER70S-6
ABS ABS - Part 2 3YSA, 3YSA H5
CWB CSA W48 B-G 49A 3 C1 S6, B-G 49A 3 C1 S6 (B-G 49A 3 C G6), B-G 49A 3 Z S6
DNV-GL DNV - 2.9 III YMS H5
DB ISO 14341-A G 42 3 C1 3Si1, G 46 4 M21 3Si1
LR LR - Chapter 11 3YS H5
MIL MIL-E-23765/1D MIL-70S-6
Classification Shielding GasPolarityYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -30°C (-20°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)
ER70S-6 Requirement 100% CO2DC+400 (58) min.480 (70) min.22 min.27 (20) min.
Typical Result, As-welded 100% CO2DC+420 (61)530-570 (77-82)2543-121 (32-89)
Typical Result, As-welded 75% Ar, 25% CO2DC+430 (62)530-600 (77-86)2362-182 (46-135)42-156 (31-115)
Typical Result, As-welded 90% Ar, 10% CO2DC+490 (71)600 (87)2487-109 (64-80)
Classification %C%Cr%Mn%Mo%Ni%P%S%Si%V%Total Cu
ER70S-6 Requirement 0.06 - 0.150.15 max.1.40 - 1.850.15 max.0.15 max.0.025 max.0.035 max.0.80 - 1.150.03 max.0.50 max.
Typical Result 0.07-0.100.01-0.051.41-1.580.01 max.0.03 max.0.003-0.0130.013 max.0.80-0.980.005 max.0.13-0.29
Diameter Transfer ModeShielding GasPolarityCTWD, mm (in.)⁽¹⁾Wire Feed Speed, m/min (in/min)Voltage, voltsApprox. Current, ampsMelt-off Rate, kg/hr (lb/hr)
0.025 in (0.6 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)2.5 (100)17350.4 (0.9)
0.025 in (0.6 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)6.4 (250)19800.9 (2.0)
0.030 in (0.8 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)1.9 (75)17350.4 (0.9)
0.030 in (0.8 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)3.8 (150)18700.8 (1.8)
0.030 in (0.8 mm) Short Circuit Transfer100% CO2DC+9-12 (3/8-1/2)7.6 (300)221301.6 (3.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+9-12 (3/8-1/2)2.5 (100)18800.7 (1.6)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+9-12 (3/8-1/2)3.8 (150)191201.1 (2.4)
0.035 in (0.9 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+9-12 (3/8-1/2)6.4 (250)221751.8 (4.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)9.5 (375)231952.7 (6.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.7 (500)292303.6 (8.0)
0.035 in (0.9 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)15.2 (600)302754.4 (9.6)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+12-19 (1/2-3/4)3.2 (125)191451.5 (3.4)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+12-19 (1/2-3/4)3.8 (150)201651.8 (4.0)
0.045 in (1.1 mm) Short Circuit Transfer ⁽²⁾100% CO2DC+12-19 (1/2-3/4)5.1 (200)212002.5 (5.4)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)8.9 (350)272854.2 (9.2)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.1 (475)303355.7 (12.5)
0.045 in (1.1 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.7 (500)303406.0 (13.2)
0.052 in (1.3 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)7.6 (300)303004.8 (10.7)
0.052 in (1.3 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)8.1 (320)303205.2 (11.5)
0.052 in (1.3 mm) Spray Transfer90% Ar / 10% CO2DC+12-19 (1/2-3/4)12.3 (485)324307.8 (17.1)
1/16 in (1.6 mm) Spray Transfer90% Ar / 10% CO2DC+12-25 (1/2-1)5.3 (210)273254.8 (10.7)
1/16 in (1.6 mm) Spray Transfer90% Ar / 10% CO2DC+12-25 (1/2-1)6.0 (235)283505.4 (12.0)
1/16 in (1.6 mm) Spray Transfer90% Ar / 10% CO2DC+12-25 (1/2-1)7.4 (290)294306.7 (14.8)
Note
⁽¹⁾ CTWD (Contact Tip to Work Distance). Subtract 1/4 in (6.4 mm) to calculate Electrical Stickout
LECO Diameter 0.030 in (0.8 mm)
LECO Package 33 lb Plastic Spool
Diameter (in) 0.030
Downloads
Includes
  • (1) 33 lb Plastic Spool
