Lincoln Electric Lincolnweld ED032960 Submerged Arc Wire – 50 lb

SKU: ED032960
$157.21 $166.50
Lincoln Elite Dealer
Free Shipping over $250
Lowest Price
Flux for Seam Welding of Pipe
Overview

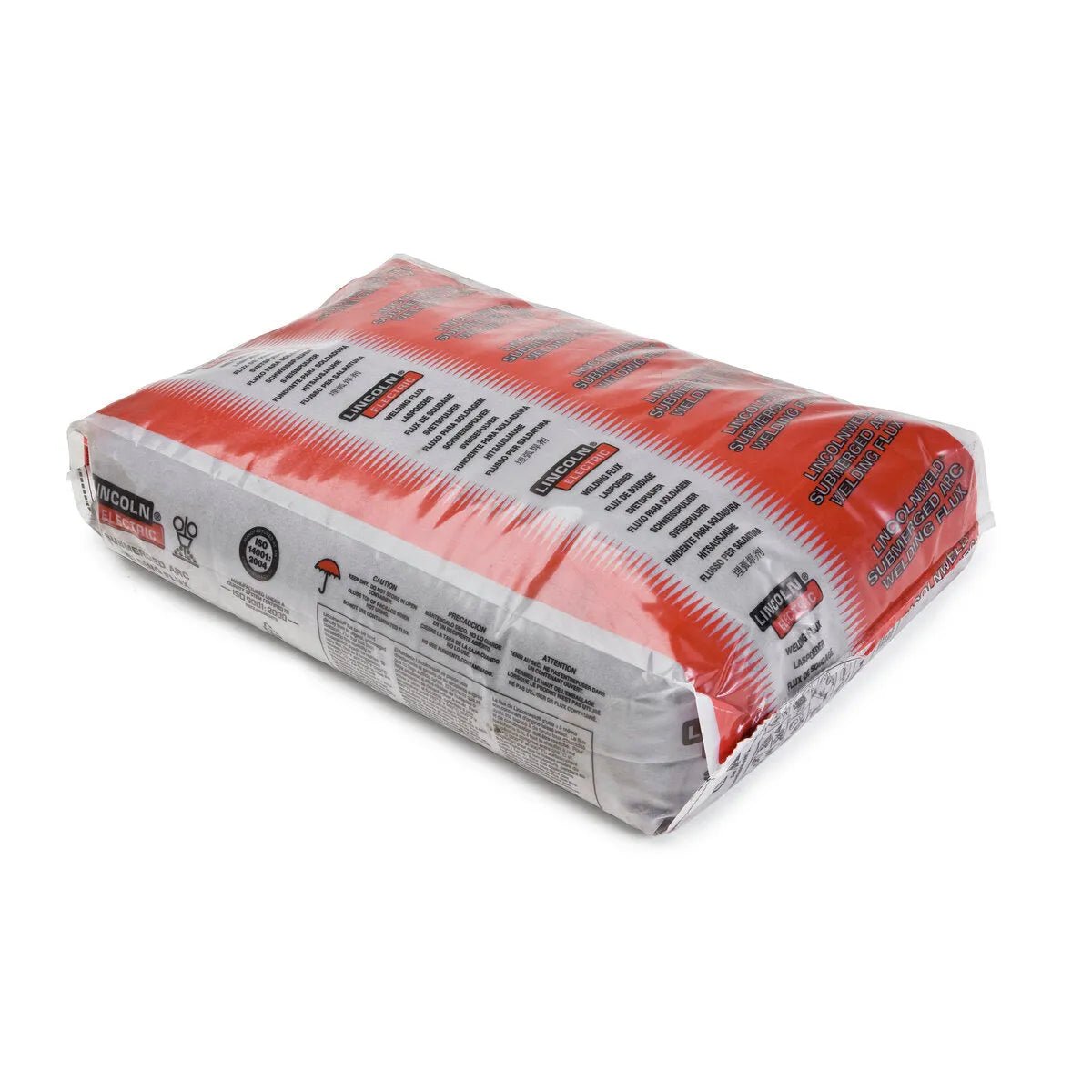

Lincoln ED032960 Lincolnweld SPX80 Submerged Arc SAW Flux, 50 lb Plastic Bag

Features

  • Designed to meet the specific requirements of spiral pipe seam welding of up to API X80 grade pipe
  • High speed welding capability for increased productivity
  • Capable of producing weld deposits with impact properties exceeding 27 J (20 ft·lbf) @ -51°C (-60°F) with Lincolnweld® LA-81
  • Smooth bead profile achieves optimal appearance on both inner and outer diameter welds
  • Self-peeling slag allows for clean and easy slag removal for reliable non-destructive testing results
Specifications
FeatureValue
Wire ClassificationPostweld Heat TreatmentYield Strength @ 0.2% Offset, MPa (ksi)Tensile Strength, MPa (ksi)Elongation, %Charpy V-Notch, J (ft-lbs) @ -20°C (0°F)Charpy V-Notch, J (ft-lbs) @ -40°C (-40°F)Charpy V-Notch, J (ft-lbs) @ -45°C (-50°F)
Lincolnweld® L-61® F7A5-EM12K-H8As-welded410 (59)510 (74)32180 (133)
Lincolnweld® L-70 F8A4-EA1-A4-H8As-welded510 (74)620 (89)2753 (39)
Lincolnweld® LA-75 F7TA0-ENi1KAs-welded470 (68)640 (93)2752 (38)
Lincolnweld® LA-85 (LNS 165) F8TA4-ENi5As-welded490 (71)620 (90)2746 (34)
Lincolnweld® LA-85 (LNS 165) F9A4-ENi5As-welded560 (81)660 (96)2558 (43)
Lincolnweld® LA-90 F9A4-EA3K-G-H8As-welded610 (88)720 (105)2631 (23)
Lincolnweld® L-S3 (LNS133U,L50M) F7TA4-EH12KAs-welded490 (71)650 (95)2553 (39)
Wire Classification%Ni%C%Cu%Mn%Mo%P%S%SiDiffusible Hydrogen, mL/100g Weld Metal
Lincolnweld® L-61® F7A5-EM12K-H80.050.071.560.0140.0090.405
Lincolnweld® L-70 F8A4-EA1-A4-H80.050.161.390.570.0200.0080.405
Lincolnweld® LA-85 (LNS 165) F9A4-ENi50.880.050.111.710.240.0150.0050.45
Lincolnweld® LA-90 F9A4-EA3K-G-H80.070.162.090.450.0150.0060.774
Classification %Al2O3%CaF2%CaO%FeO%MgO%MnO%Na2O%SiO2%TiO2%ZrO2
Typical Result 311454241032213
LECO Diameter Flux
LECO Package 50 lb Plastic Bag
Includes
  • (1) 50 lb Plastic Bag
